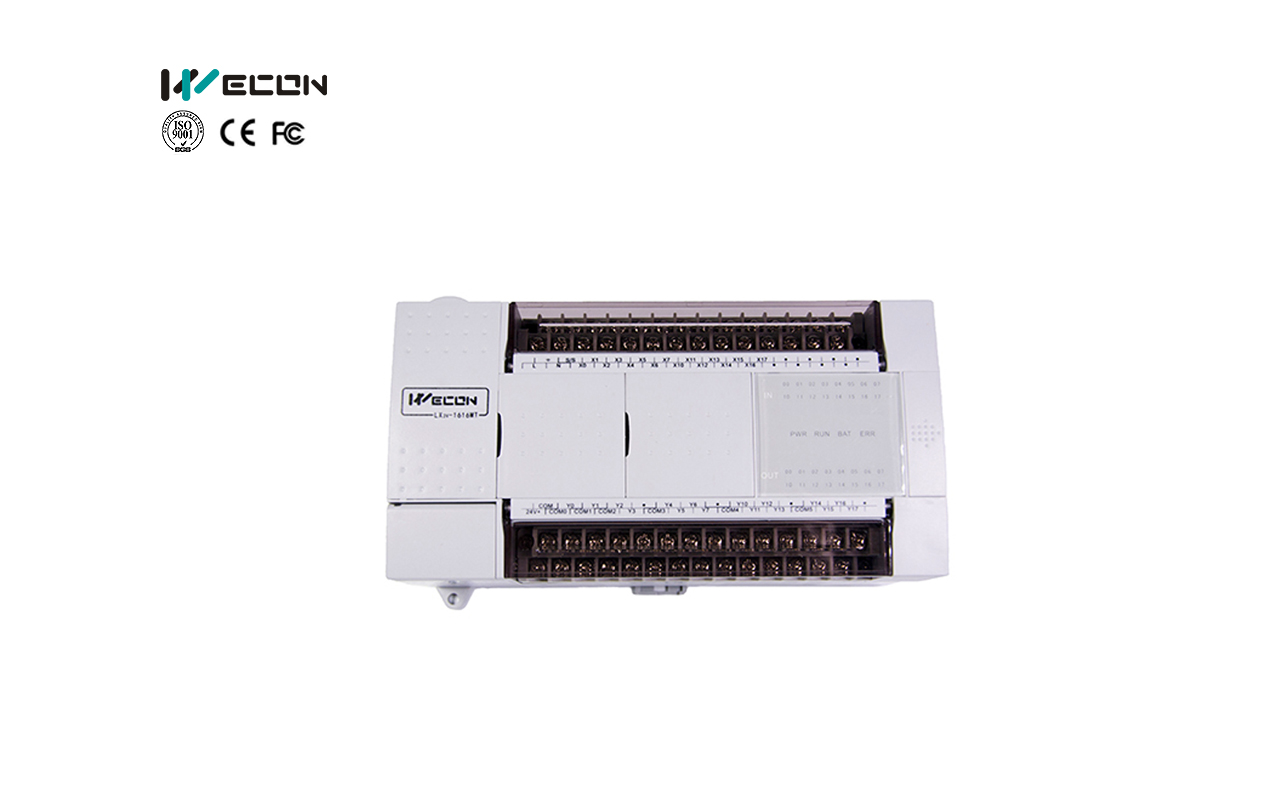

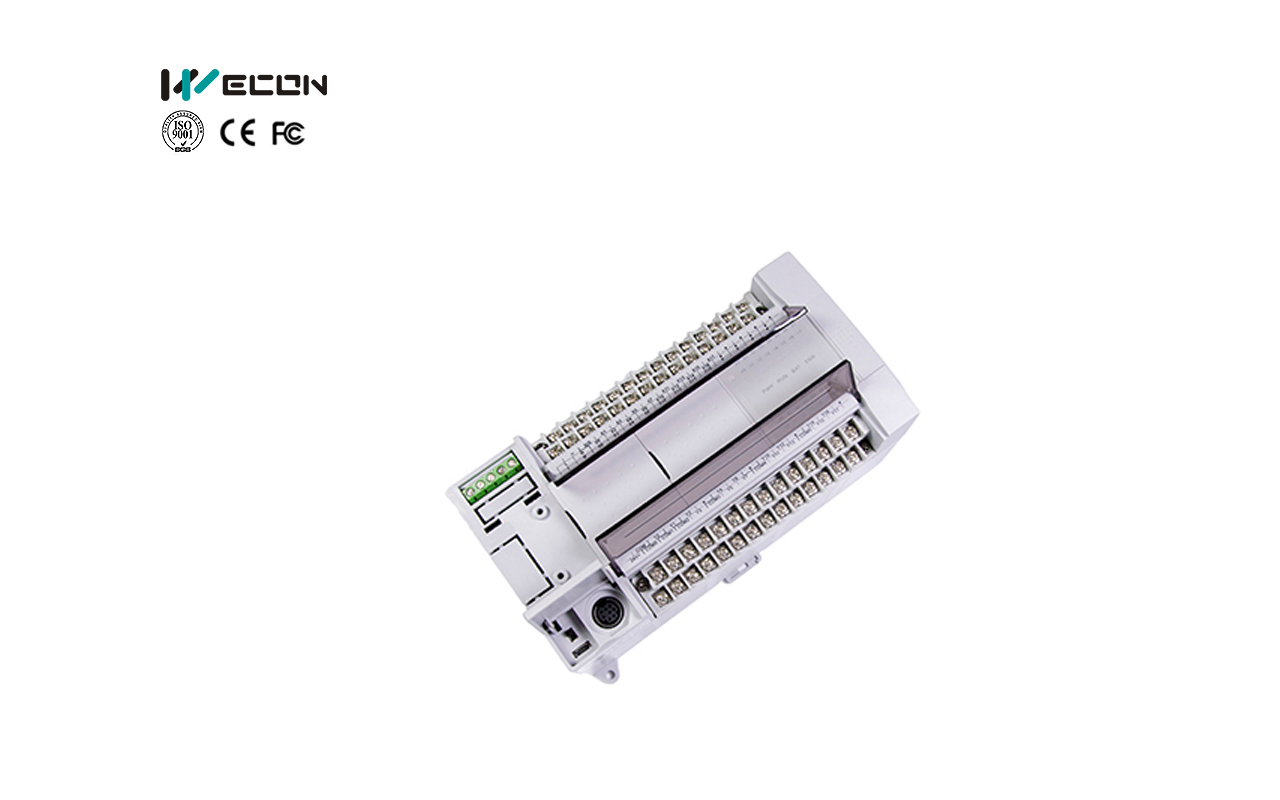

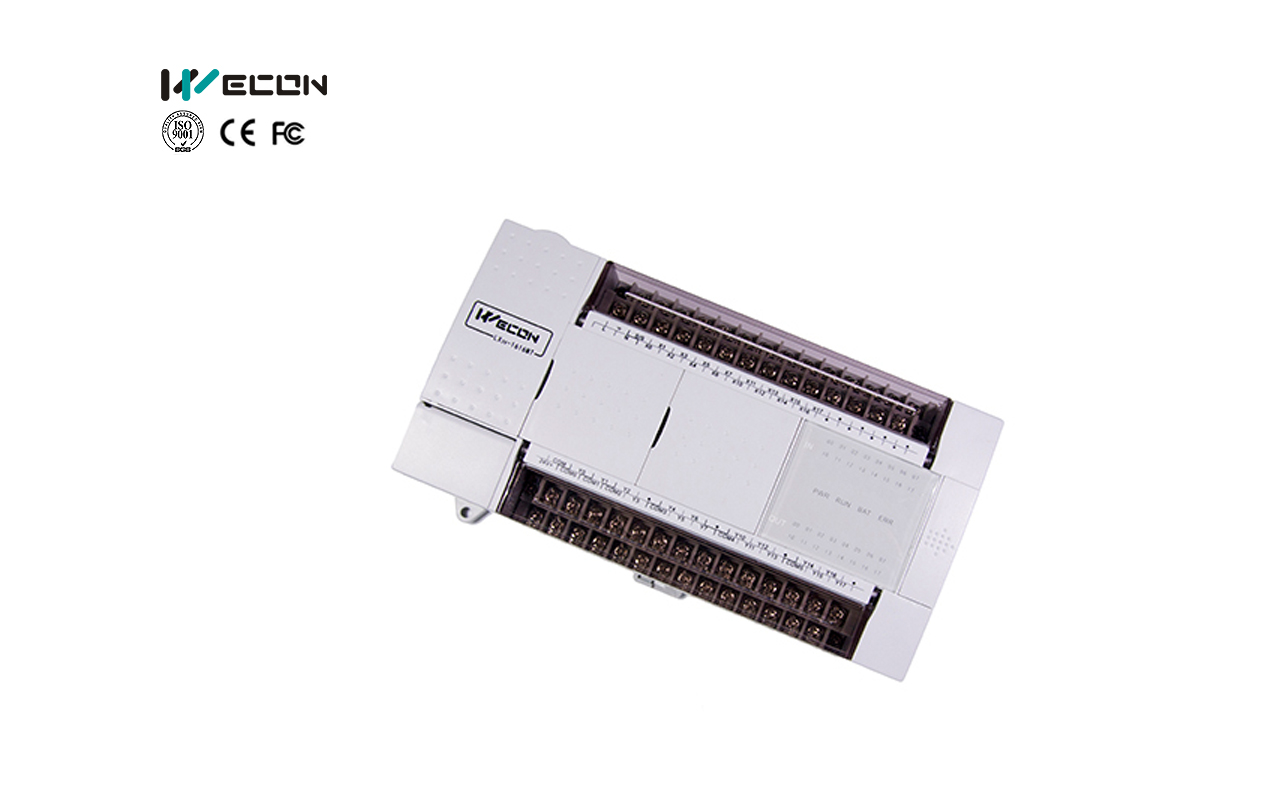

LX5S 1616M/2416M

Supports to modify frequency and position during pulse running;

Supports the highest baud rate: 921600;

Supports 100us high-speed timer interrupt;

Supports up to 100 high-speed counter interrupts;

Supports E-CAM;

Supports electronic gear;

Supports efficient and stable PID and CCPID self-tuning;

Supports LX 3V series modules;

USB power supply;

LX5V Software;

0.03us~0.08us execution speed.

Software&manual Inquiry
Introduction
Specification

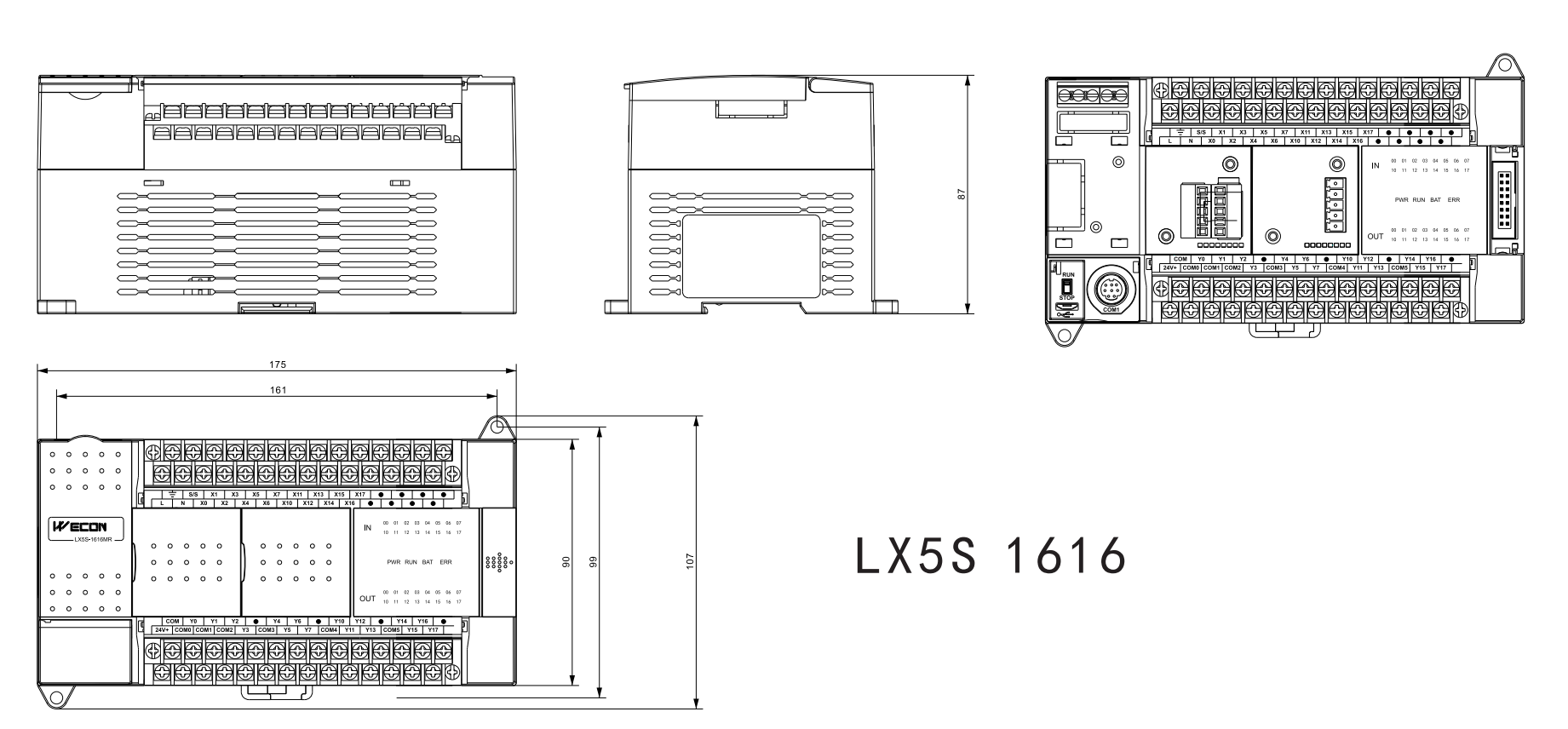

Physical & Electrical
Optional





Cost Effective

01


With the basic functions of LX5V and competive price, Wecon LX5S Series PLC features high performance small size.


▷High Speed Puls Input/Output

Supports external high-speed pulse input;

Supports high speed pulse output with acceleration and deceleration;

Modify the output frequency and quantity of high-speed pulse during operation;

High speed and Precise control.

5S 2.png


▷Fast

0.01us~0.03us execution speed, run 6-20 times than LX3V PLC;

Supports 6 channels external X interrupt,

also rising edge and falling edge.



▷More Registers

5S 1.png

▷Functions

Supports the highest baud rate: 921600;

Supports 100us high-speed timer interrupt;

Supports up to 100 high-speed counter interrupts;

Supports E-CAM;

Supports electronic gear;

Supports efficient and stable PID and CCPID self-tuning;

USB power supply;

Compitable with 3V expansation modules and BD modules.




▷Easy Programming

Friendly interface

Clear program classification

Detailed and clear parameter configuration

LX5V software.png


Applications

02


LX5S PLC Precise Control, Run Fast, High Performance to meet the needs of control systems in all walks of life, and is widely used in various automation equipment.


—THE END—



LX5S Model

I/O

Output Type

Pulse

Counter

E-CAM

Pulse Output

RS485

BD Board

Module

Power Supply

Ethernet

LX5S-1616MT-A(D/AN/DN)

16/16

Transistor

6

YES

2

2

2

YES

AC(DC)

Optional

LX5S-1616MR-A(D/AN/DN)

16/16

Relay

6

N/A

0

2

2

YES

AC(DC)

Optional

LX5S-1616MR2H-A(D/AN/DN)

16/16

Mix

6

YES

2

2

2

YES

AC(DC)

Optional

LX5S-1616MT4H-A(D/AN/DN)

16/16

Transistor

6

YES

4

2

2

YES

AC(DC)

Optional

LX5S-2416MT-A(D/AN/DN)

24/16

Transistor

6

YES

2

2

2

YES

AC(DC)

Optional

LX5S-2416MR-A(D/AN/DN)

24/16

Relay

6

N/A

0

2

2

YES

AC(DC)

Optional

LX5S-2416MR2H-A(D/AN/DN)

24/16

Mix

6

YES

2

2



2

YES

AC(DC)

Optional

LX5S-2416MT4H-A(D/AN/DN)

24/16

Transistor

6

YES

4

2

2

YES

AC(DC)

Optional


GENERAL

Item

LX5S Series

Running Mode

Round Scan / Interrupt / Event

Programming

Instruction list/ladder diagram

Total Instructions

Basic Instructions: 29 / Application Instructions: 170

Execute time

Basic Instructions: 0.03-0.08us

System Storage

512KB

Download/ Monitoring

Programming cable (serial type) / Micro USB

High Speed Pulse Output

Transistor type; 2 channels/200KHz

External  Input Interrupt

X0-X5 supports both rising and falling edges

Timer Interrupt

100 channels, support 0.1ms interrupt

High Speed Input Single

6 channel 150K Hz;

High Speed Input AB Phase

3 channel 100K Hz, supports 2 or 4 frequency times;



Holding Addresses

Adjusted by software

Storage

FLASH

Filter

For all X input terminals

Serial Port

COM1（RS422 / RS485),

COM2（RS485）

Temperature

Working Temperature: 0 ~ 55℃ / Storage Temperature: 0 ~ 70℃

Humidity

35~ 85%RH (Without condensation)

Shock Resistance

JIS C 0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.

USB Supply

YES


POWER SUPPLY

Item

AC

DC

Power Supply

AC 85~265V 50 ~ 60Hz

DC 24V±10%

Power Outage Time

10ms

10ms

Power Fuse

250V 3.15A

250V 3.15A

Rush Current

<15A 5ms / AC 100V; <30A 5ms / AC 200V

<15A 1ms / DC 24V

Power Consumption

<60W

<30W

Power Output

DC 24V 700mA

<30w(Not include the external power supply for modules)



OUTPUT

Item

Relay

Transistor

Output Mode

--

NPN

Input Power Supply

DC 24V

DC 24V

Output Circuit

<AC 250V or <DC 30

DC 5~30V

COM Port Current

--

<0.1mA (DC 30V)

Insulation

Mechanistic

Optical Coupling

Leak current

--

0.1mA / DC 30V

Min. Load

--

DC5V 2mA

Max. Load

Resistive

2A point 8A COM port

0.5A point 0.8A COM port 0.3A HSPO point

Inductive

80VA

12W/DC24V 7.2W HSPO point

General

100W

0.9W/DC 24V

Response Time

<10ms

<0.2ms

(Pulse output terminal: <5us)


5S 3.png

Support to modify the frequency and position while running the pulse;

Supports the highest baud rate: 921600;

Support 100us high speed timer interrupt;

Supports up to 100 high-speed counter interrupts;

Supports E-CAM;

Supports electronic gear;

Supports efficient and stable PID and CCPID auto-tuning;

Supports LX 3V series modules;

USB power supply;

LX5V software;

Execution speed of 0.03us ~ 0.08us.
