Model | Channels | Functionality | Description |

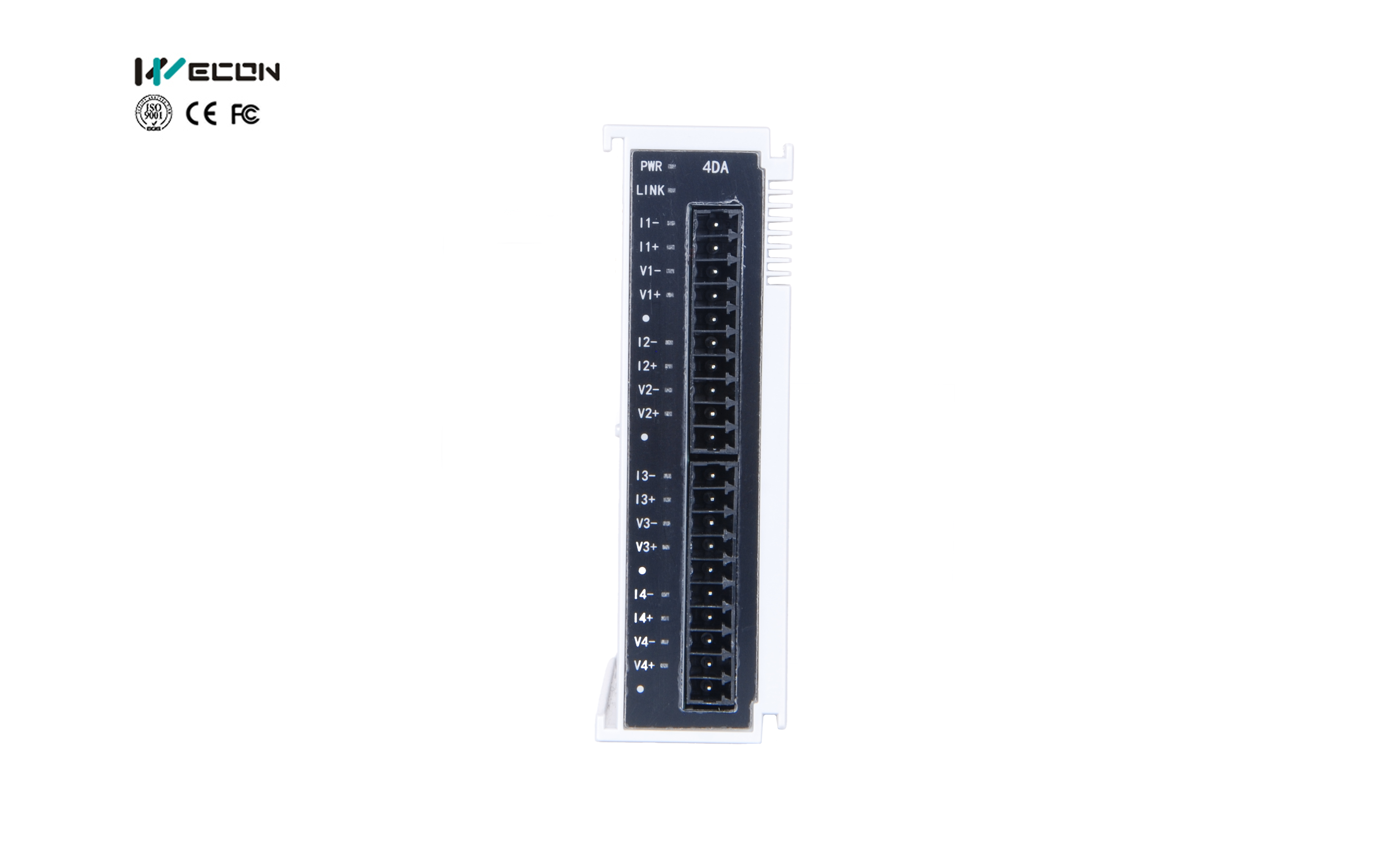

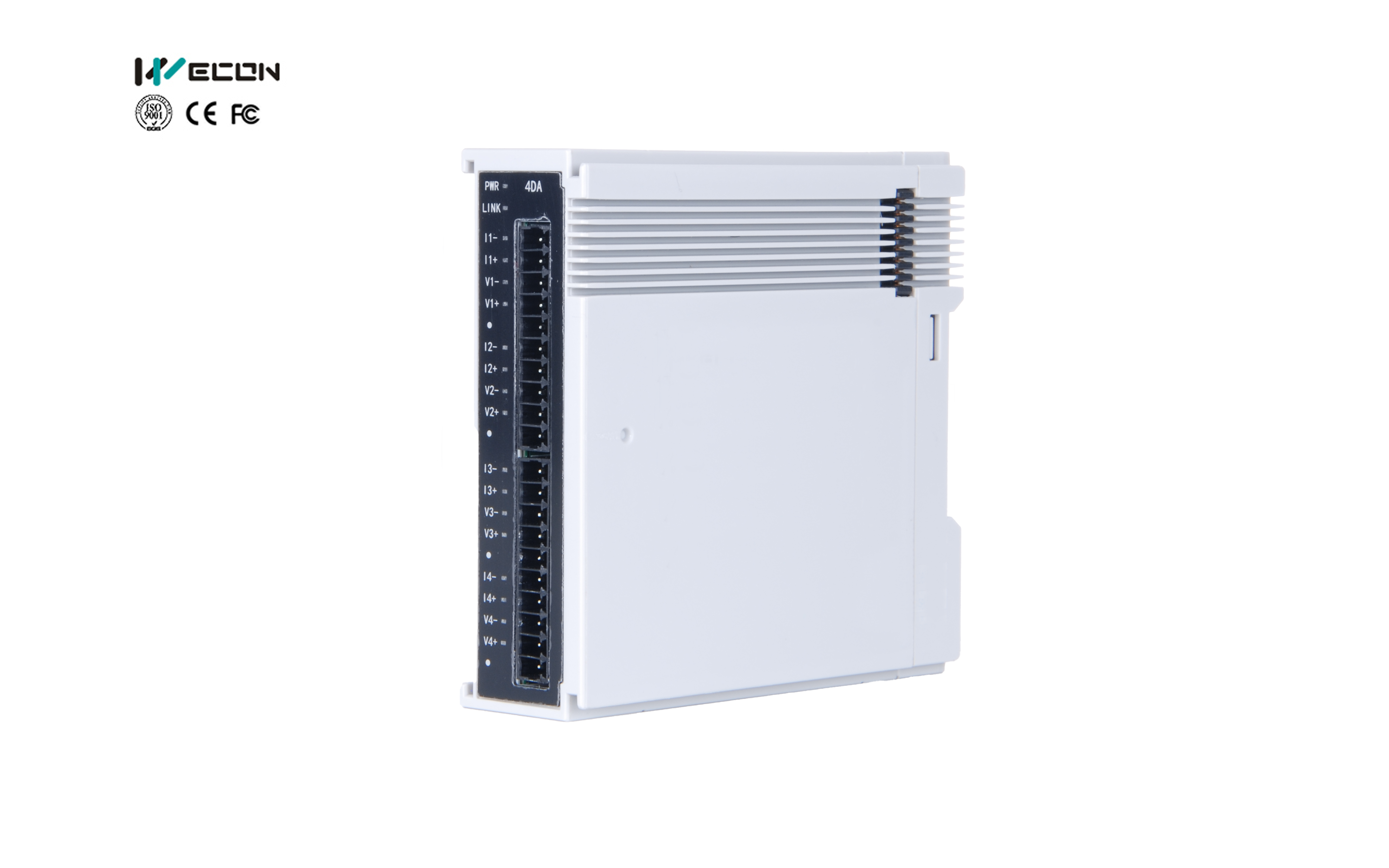

LX6V-4DA | 4 | 4 outputs | 4-channel analog output module. |
Specification
Item | Analog Output |
Output Circuit Composition |
|
Output Mode | Voltage/current |
Output Channel | 4 |
Resolution | 1/20,000, hardware can meet 16bit resolution |
Voltage Output Range | -10V-10V |
Voltage Output Load | ≥2KΩ |
Voltage Output Diagnosis | Support non-zero voltage output short-circuit detection with about 14mA overcurrent protection |
Current Output Range | 020mA, 4-20mA |
Current Output Load | ≤ 500Ω |
Current output Diagnosis | Support non-zero current output open circuit detection |
Comprehensive Precision | ±1% |
Conversion Speed | Approximately 1ms |
Power Supply | Interface power supply, DC24V±10%, 125mA |
