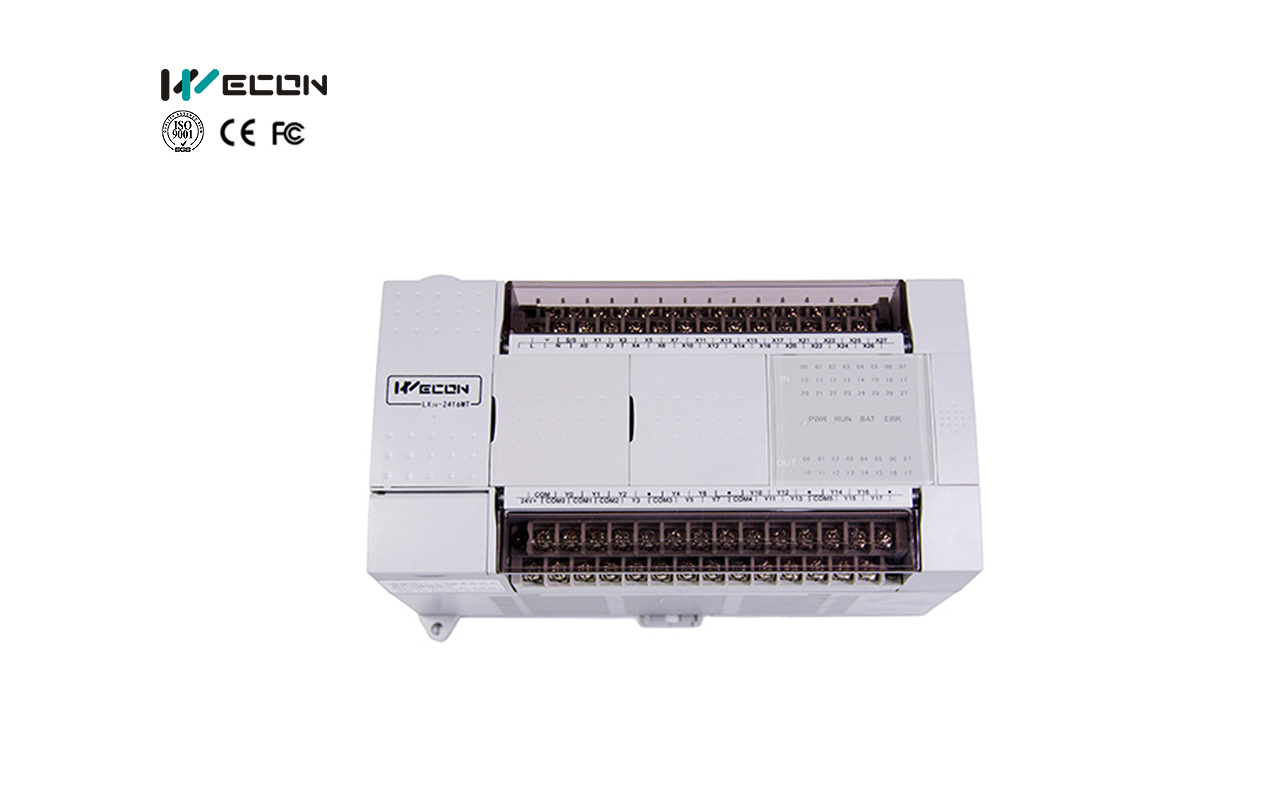

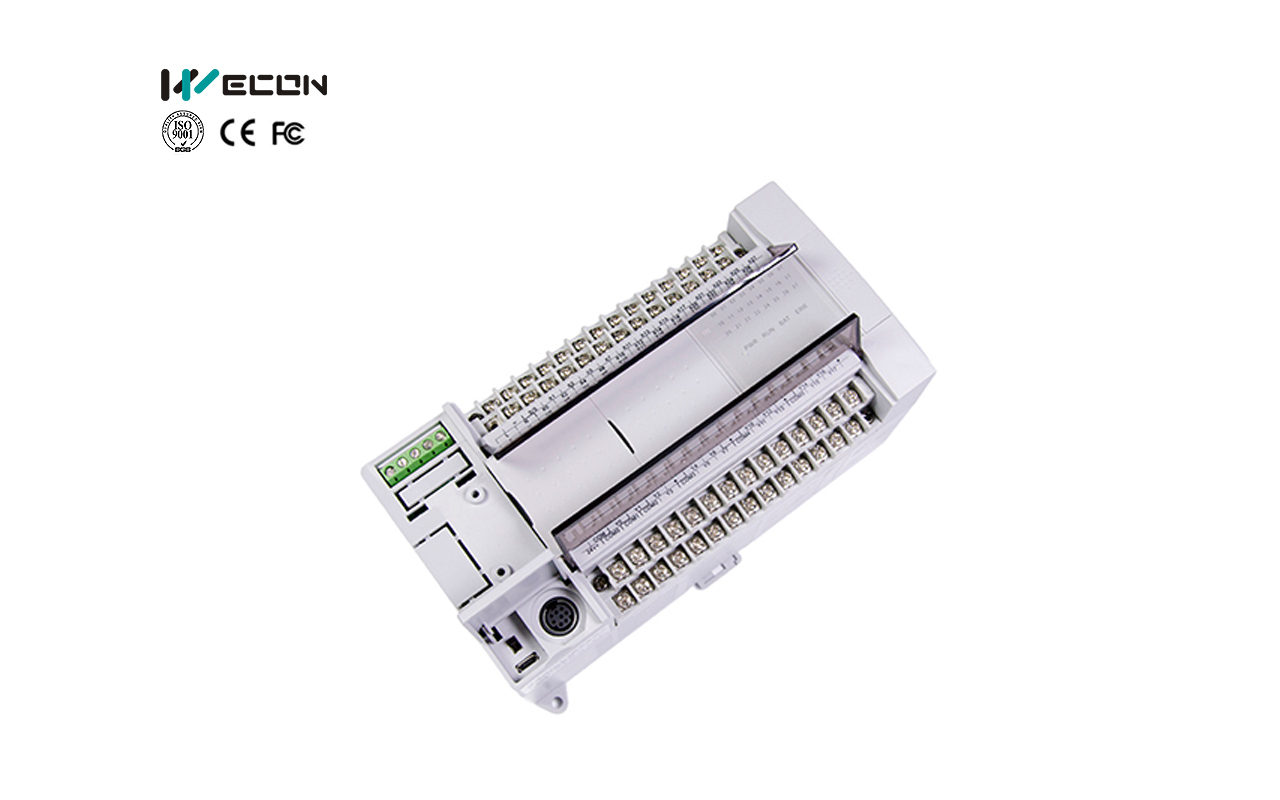

LX3VP 2424M/3624M PLC

  • High speed IO: 2-channel 200K Hz single phase inputs, 1-channel 100K Hz AB phase input, 2-channel 100K Hz outputs(Optional for 4-channel)

  • Communication ports: 2 RS485 serial ports, support 2 BD modules

  • 24/36 inputs and 24 outputs, support extension modules


Datasheet Inquiry sales@we-con.com.cn
Specification
Physical & Electrical

Model

I/O

Output Type

Pulse

Output

RS485

BD

Board

Module

LX3VP-2424MT-A

24  |  24

T

2

2

2

√

LX3VP-2424MR-A

24  |  24

R

0

2

2

√

LX3VP-2424MR2H-A

24  |  24

R/T

2

2

2

√

LX3VP-2424MT4H-A

24  |  24

T

4

2

2

√

LX3VP-3624MR-A

36  |  24

R

0

2

2

√

LX3VP-3624MT-A

36  |  24

T

2

2

2

√

LX3VP-3624MR2H-A

36  |  24

R/T

2

2

2

√

LX3VP-3624MT4H-A

36  |  24

T

4

2

2

√

LX3VP-2424MT-D

24  |  24

T

2

2

2

√

LX3VP-2424MR-D

24  |  24

R

0

2

2

√

LX3VP-2424MR2H-D

24  |  24

R/T

2

2

2

√

LX3VP-2424MT4H-D

24  |  24

T

4

2

2

√

LX3VP-3624MR-D

36  |  24

R

0

2

2

√

LX3VP-3624MT-D

36  |  24

T

2

2

2

√

LX3VP-3624MR2H-D

36  |  24

R/T

2

2

2

√

LX3VP-3624MT4H-D

36  |  24

T

4

2

2

√

GENERAL

Item

LX3VP Series

Running Mode

Round Scan/ Interrupt

Programming

Instruction List/ Ladder

Total Instructions

Basic Instructions: 27 / Applied Instruction: 138

Execute time

Basic Instructions: 0.06us / Applied Instruction: 1~10us

System Storage

64K

Download/ Monitoring

Serial Programming Cable / Mini USB

High Speed Pulse Output

Transistor: 2 channels (4 channel optional) / Relay N/A (2 channel optional)

External Interrupt

6 Channels

Timer Interrupt

3 Channels

Holding Addresses

Adjustable

Storage

FLASH

Filter

For all X input terminals

Serial Port

COM1: RS422 or RS485

COM2: RS485

Temperature

Working Temperature: 0 ~ 55℃ / Storage Temperature: -20 ~ 70℃

Humidity

5~ 85%RH (Without condensation)

Shock Resistance

JIS C 0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.


POWER SUPPLY

Item

AC

DC

Power Supply

AC 85~265V 50 ~ 60Hz

DC 24V±10%

Power Outage Time

10ms

10ms

Power Fuse

250V 3.15A

250V 3.15A

Rush Current

<15A 5ms / AC 100V; <30A 5ms / AC 200V

<15A 1ms / DC 24V

Power Consumption

<60W

<30W

Power Output

DC 24V 700mA

No



OUTPUT

Item

Relay

Transistor

Output Mode

--

NPN

Input Power Supply

DC 24V

DC 24V

Output Circuit

<AC 250V or <DC 30

DC 5~30V

COM Port Current

--

<0.1mA (DC 30V)

Insulation

Mechanistic

Optical Coupling

Leak current

--

0.1mA / DC 30V

Min. Load

--

DC5V 2mA

Max. Load

Resistive

2A point 8A COM port

0.5A point 0.8A COM port 0.3A HSPO point

Inductive

80VA

12W/DC24V 7.2W HSPO point

General

100W

0.9W/DC 24V

Response Time

<10ms

<0.2ms

(Pulse output terminal: <5us)
