2*Analog Current Input (4-20mA)
2*Analog Voltage Input(-10v-10v)
2*Analog Current Output (4-20mA)
2*Analog Voltage Output (-10v-10v)

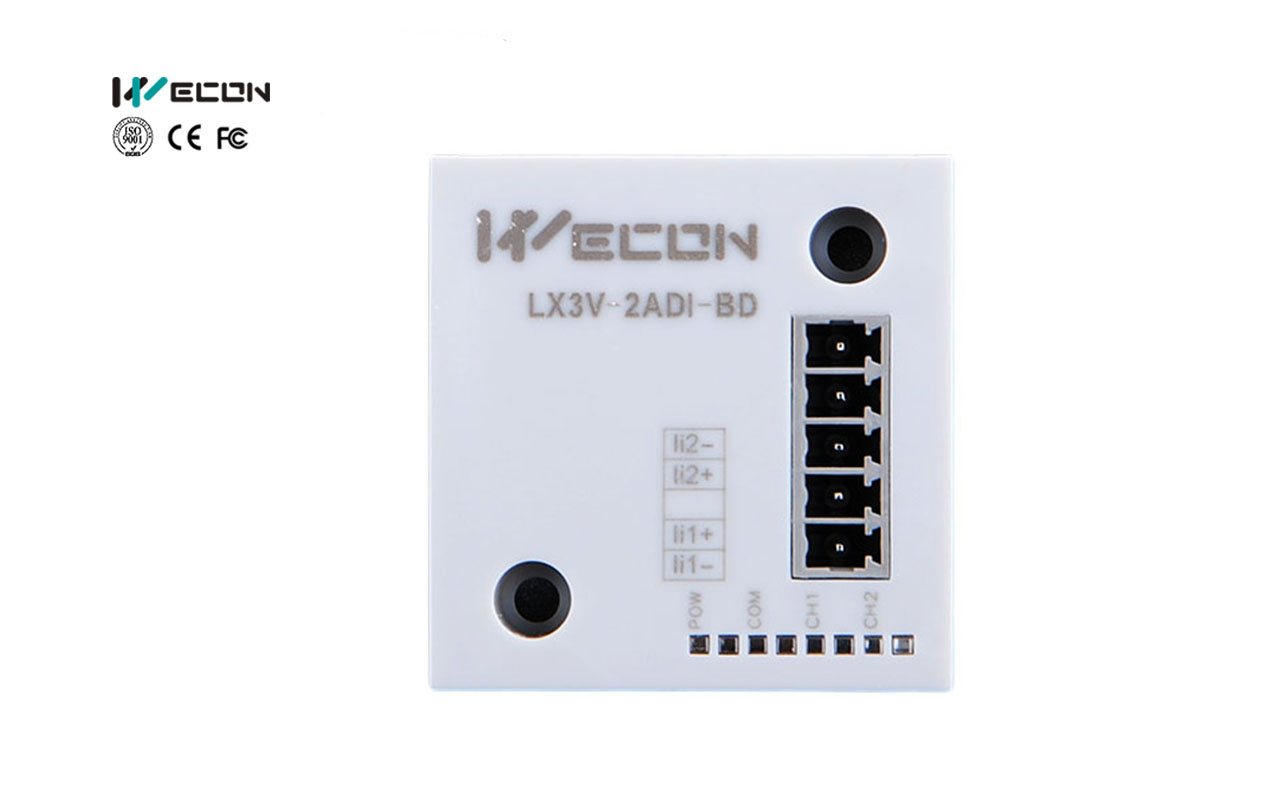

| Item | LX3V-2ADI-BD | LX3V-2ADV-BD |
| Current input | Voltage input | |
| DC 4-20mA (Input resistance:250Ω) | DC -10 ~ 10V (Input resistance:150KΩ) | |
| Digital output | 12 bits binary | |
| Resolution | 8uA (4mA-20mA/2000) | 5mV (10 : 1/2000) |
| Precision | ±1% (4-20mA: ± 0.16mA) | ±1% |
| AD conversion time | One PLC scanning cycle | |
| Characteristic |
|  |
| Insulation | No insulation in each PLC channel | |
| Occupied points | None | |
| item | LX3V-2DAI-BD | LX3V-2DAV-BD | |
| Current output | Voltage output | ||
| Output range | DC4~20mA (Load resistance should be less than 500Ω) | DC-10V~10V (the external load resistance is no less than 2KΩ) | |
| Digital output | 12 bits binary | ||
| Resolution | 8uA[4mA-20mA/2000] | 5mV[10V default scope 1/2000] | |
| Precision | ±1% | Full scale ±1% | |
| AD conversion time | One PLC scanning cycle | 1 scan time（The analog digital conversion is completed by the END order） | |
| Characteristic |  |  | |
| Insulation | No insulation in each PLC channel | ||
| Occupied points | Zero point | ||
