PI8150ig HMI

  • CPU A35 1.2GHz, 4G Flash, 512MB DDRAM.

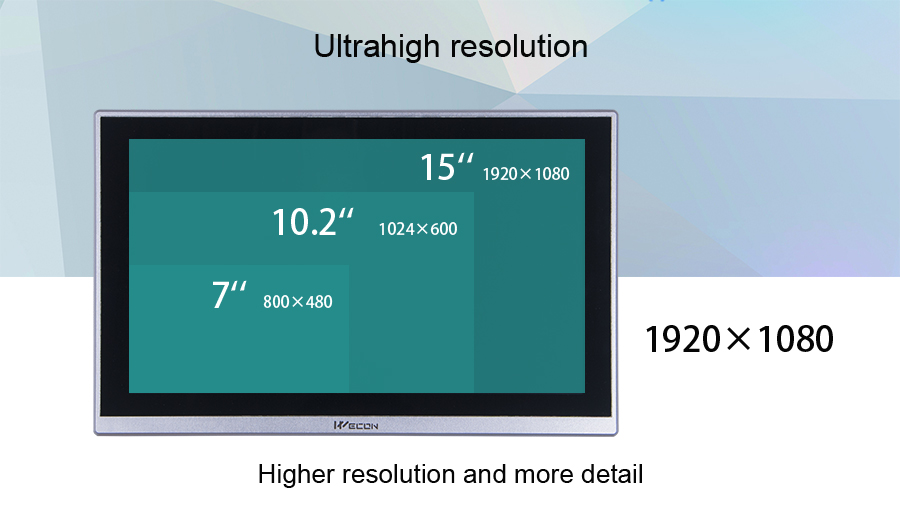

  • Display:15 inches; Resolution: 1920*1080; Display color: 260k colors.

  • Interface: a physical serial port. COM1: RS232, RS422 or RS485(choose one of two), RS485.

  • USB interfaces: USB Host/USB Client.

  • remote monitoring and serial port download supported.

  • 8150ig-C supports related functions of V+NET, Ethernetpass-through download and sync data to cloud.


Software&manual Inquiry
Specification
Physical & Electrical




Model

V-Net   Functions

Open Cloud   Mode

MQTT

Lua Script

LAN Monitoring

4G / WIFI

Realtime Data

Alarm Data

History Data

APP & Remote Control

Remote Update HMI

WVPN

Cloud SCADA

 Pass-through

PI8150ig

X

X

X

P

P

P

X

Serial

P

P

P

P

X

PI8150ig-C

300

200

100

P

P

P

P

Serial

P

P

P

P

X

PI8150ig(WG)

X

X

X

P

P

P

X

Serial

P

P

P

P

Both

PI8150ig-C(WG)

300

200

100

P

P

P

P

Serial

P

P

P

P

Both


Main

OS

Linux 4.4.0   QT based

Processor

Cortex A35 1.2GHz

Display

Size

15"

Screen

TFT

Resolution

1920*1080

Color

260k colors

Brightness (cd/m2)

220

Backlight

LED

Backlight Lifetime

50,000 hours

Touch Panel

High precision four-wire resistive

Storage

      Memory

512 MB

Flash

4G

SD Card Slot

YES

USB Port

USB2.0 Host + USB2.0 Client

RTC

Real-time clock

Yes

Calendar

Yes

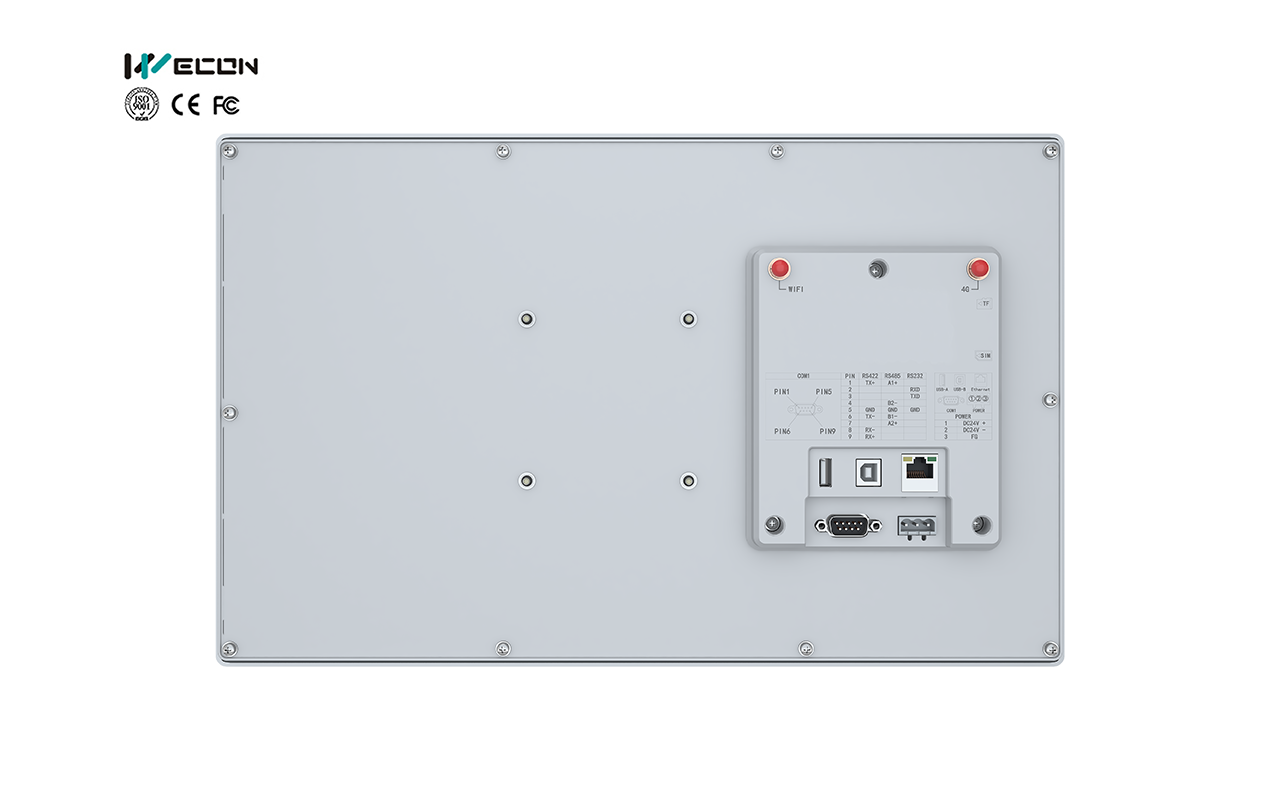

I/O Port

COM1

CN1:RS422/RS485
  CN2:RS232
  CN3:RS485

COM2

--

COM3

--

Ethernet

x1

CANopen

 --

Power

Rated Power

< 15W

Power Voltage

DC 24V

Input range

DC 12 ~ 28V

Shell Color

Silvery

Enclosure

Shell Material

Aluminum + Metal + ABS

Overall Size (mm)

403.0W*253.0H*35.2D

Mounting Size (mm)

394.0W*244.0H

Mounting Method

Panel Mount

Weight (Kg)

2.46

Environment

Working Temperature

-20 ~ 60°C

Storage Temperature

0 ~ 50°C

Humidity

10 ~ 90RH (Non-condensing)

Vibration Resistance

10 ~ 25 Hz (X, Y, Z direction 2G/30   minutes)

Cooling

Air Cooling

Software

Programming

PI Studio

Remote Access

 YES

Email Alarm

 --

IP Camera

 --

Audio Output

 --

Video Player

 --

Data Tool

Yes

Certificates

IP Code

IP65 (Front panel)

CE

CE Marked

FCC

FCC Class A
