PI3070ig HMI

uCPU A35 1.2GHz, 128M Flash, 128M DDRAM

uDisplay:7 inches; Resolution: 800*480; Display color: 16,000k colors

uInterfaces: a serial port. COM1: RS232, RS422 or RS485(choose one of two), RS485.

uUSB interfaces: USB Host/USB Client

u Remote monitoring and WVPN pass-through download.

u3070ig-C supports related functions of V-NET, Ethernet pass-through download and sync data to cloud.


Software&manual Inquiry sales@we-con.com.cn
Introduction
Specification
Physical & Electrical

IoT HMI-PI3000ig.jpg


Model

V-Net Functions

Open Cloud Mode

MQTT

Lua Script

LAN Monitoring

4G / WIFI

Realtime Data

Alarm Data

History Data

APP & Remote Control

Remote Update HMI

WVPN

Cloud SCADA

 Pass-through

PI3070ig

X

X

X

P

P

P

X

Serial

P

P

P

P

X

PI3070ig (G)

X

X

X

P

P

P

X

Serial

P

P

P

P

4G

PI3070ig (AG)

X

X

X

P

P

P

X

Serial

P

P

P

P

4G(global)

PI3070ig (W)

X

X

X

P

P

P

X

Serial

P

P

P

P

WIFI

PI3070ig-C

100

20

50

P

P

P

P

Serial

P

P

P

P

X

PI3070ig-C(G)

100

20

50

P

P

P

P

Serial

P

P

P

P

4G

PI3070ig-C(AG)

100

20

50

P

P

P

P

Serial

P

P

P

P

4G(global)

PI3070ig-C (W)

100

20

50



P



P



P



P

Serial



P



P



P



P

WIFI

PI3070ig-O

X

X

X

X

X

X

X

X

X

X



P



P

X




Main

OS

Linux 4.4.0 QT based

Processor

Cortex A35 1.2GHz

Display

Size

7"

Screen

TFT

Resolution

800*480

Color

16,000k colors

Brightness (cd/m2)

250

Backlight

LED

Backlight Lifetime

50,000 hours

Touch Panel

High precision four-wire resistive

Storage

    Memory

128 MB

Flash

128 MB

SD Card Slot

YES

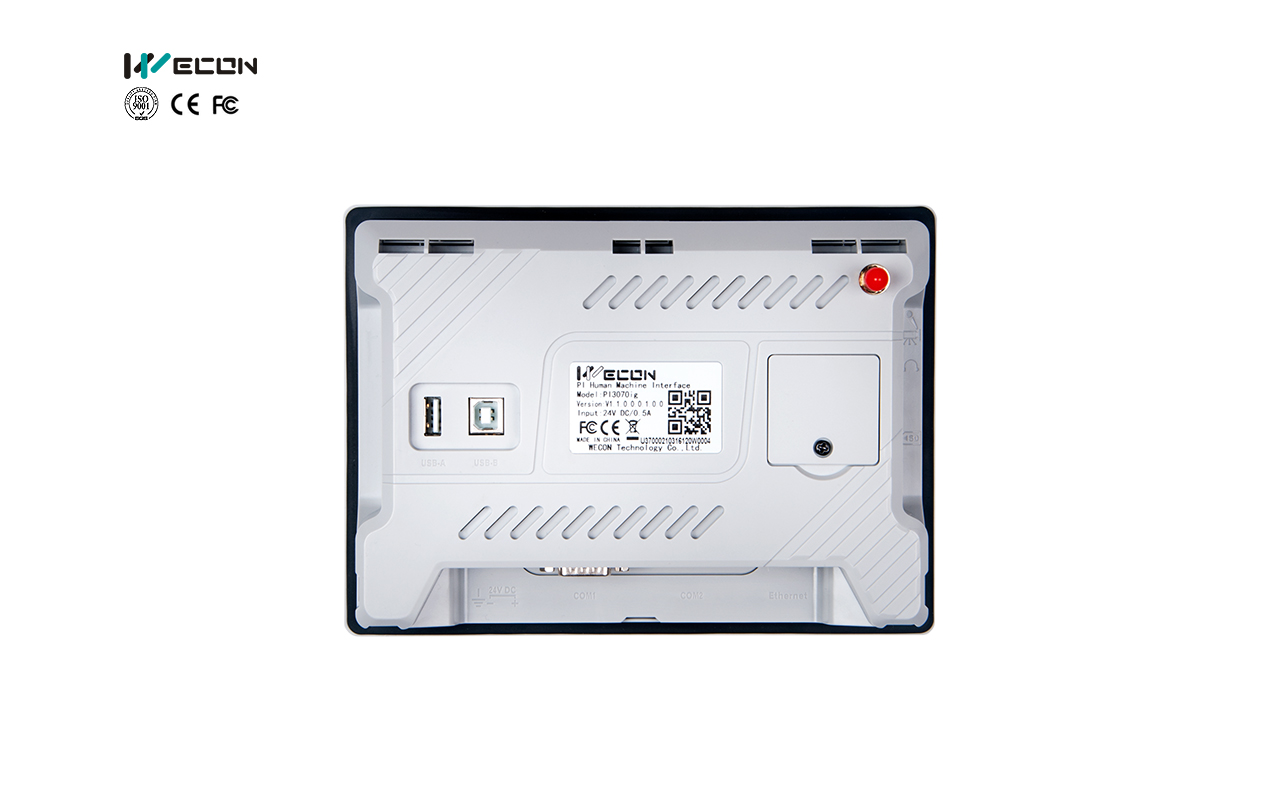

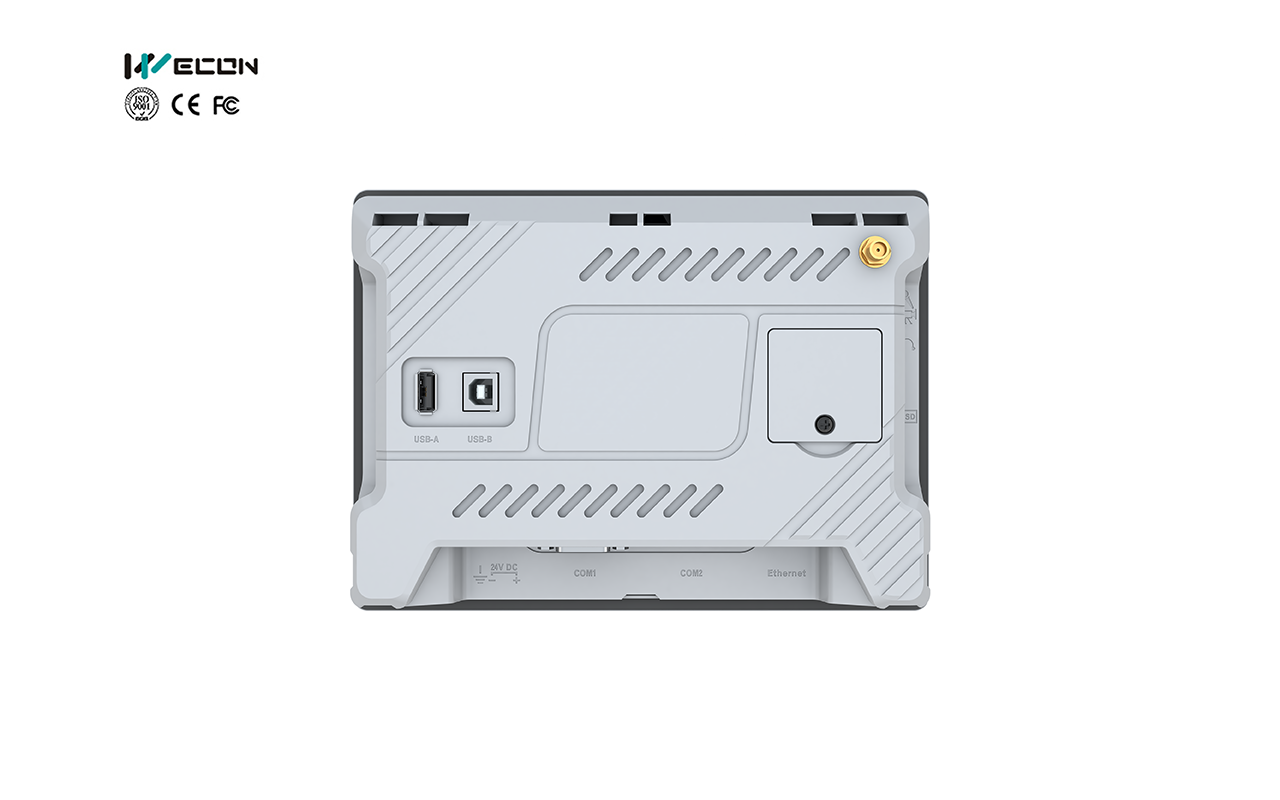

USB Port

USB2.0 Host + USB2.0 Client

RTC

Real-time clock

Yes

Calendar

Yes

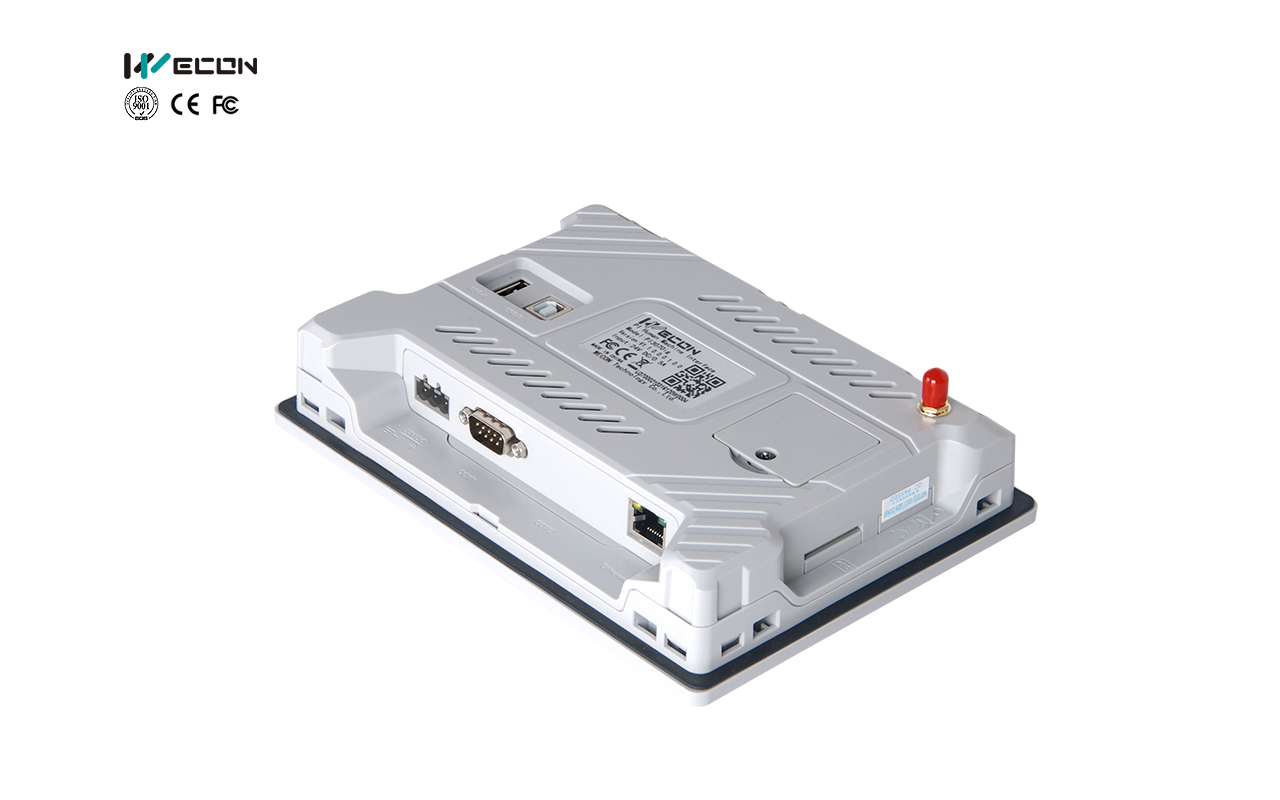

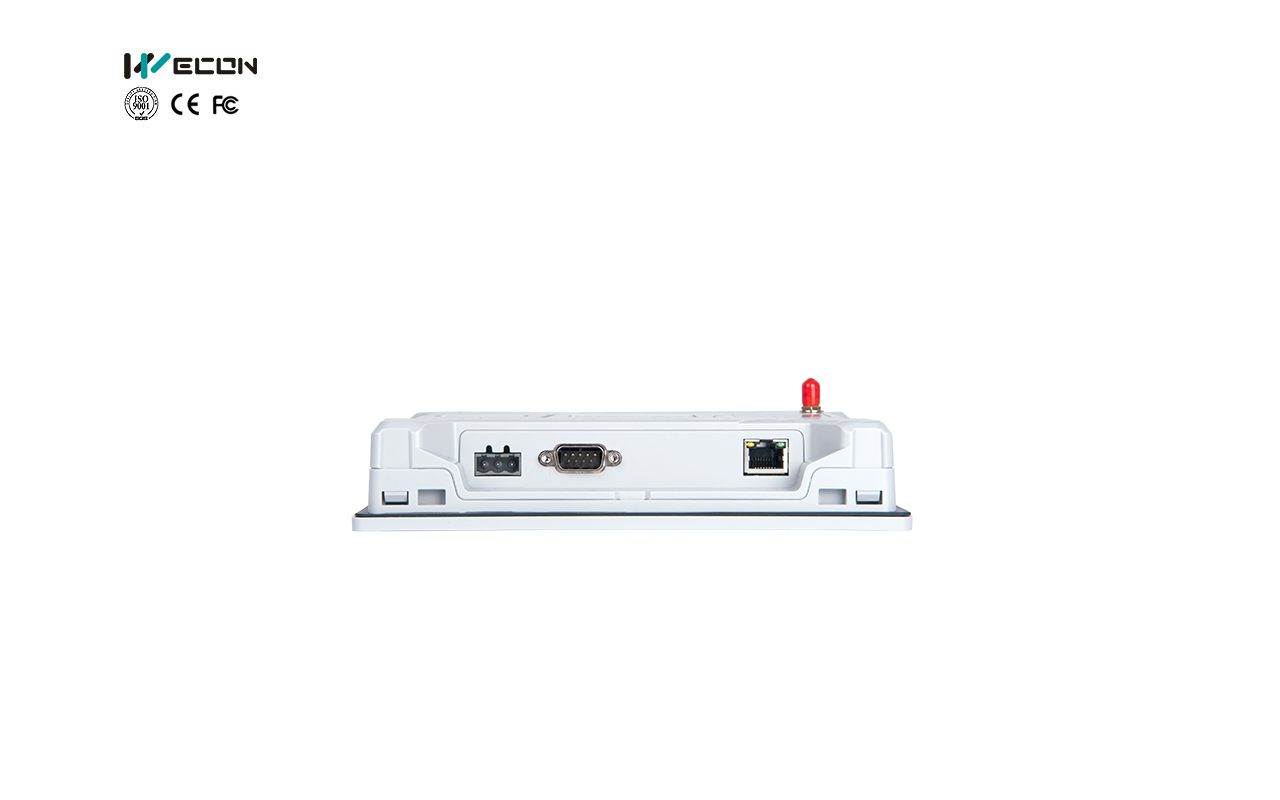

I/O Port

COM1

CN1:RS422/RS485
CN2:RS232
CN3:RS485

COM2

--

COM3

--

Ethernet

x1

CANopen

 --

Power

Rated Power

< 15W

Power Voltage

DC 24V

Input range

DC 12 ~ 28V

Shell Color

Grey

Enclosure

Shell Material

PC+ABS

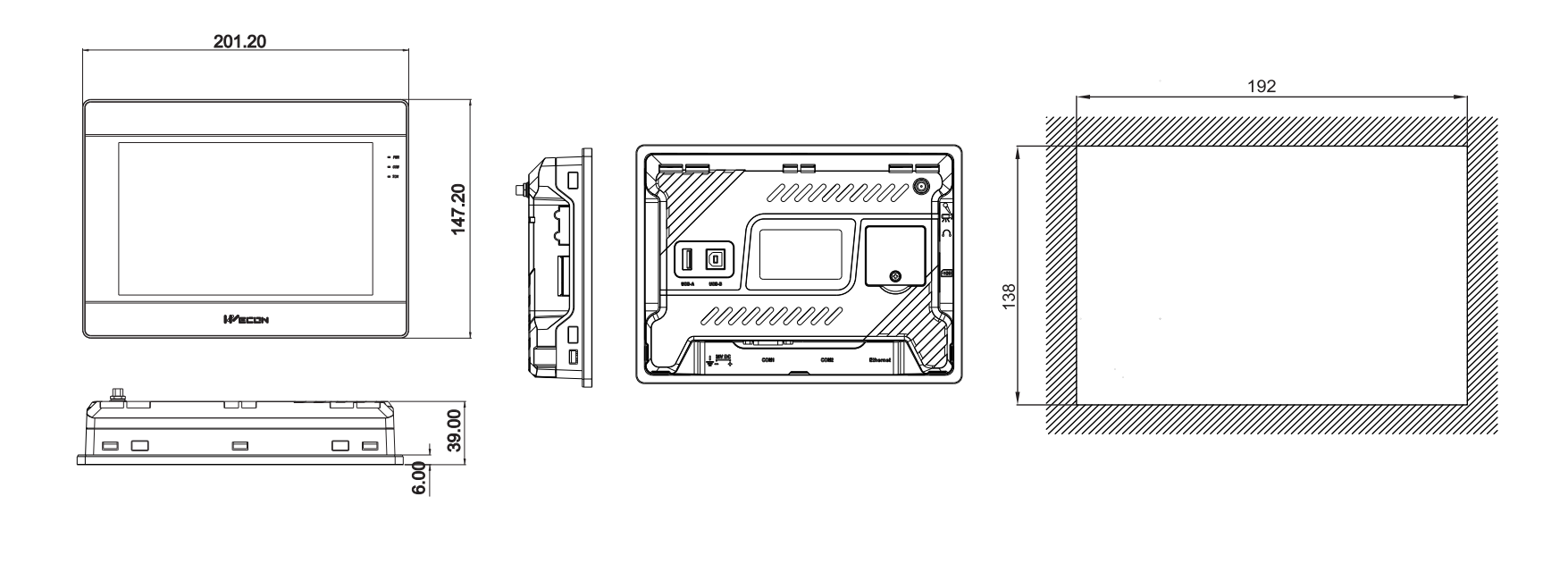

Overall Size (mm)

201.2W*147.2H*39.0D

Mounting Size (mm)

192.0W*138.0H

Mounting Method

Panel Mount

Weight (Kg)

0.52

Environment

Working Temperature

-10 ~ 55°C

Storage Temperature

-30 ~ 70°C

Humidity

10 ~ 90RH (Non-condensing)

Vibration Resistance

10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)

Cooling

Air Cooling

Software

Programming

PIStudio

Remote Access

YES

Email Alarm

YES

IP Camera

 --

Audio Output

 --

Video Player

 --

Data Tool

Yes

Certificates

IP Code

IP65 (Front panel)

CE

CE Marked

FCC

FCC Class A
