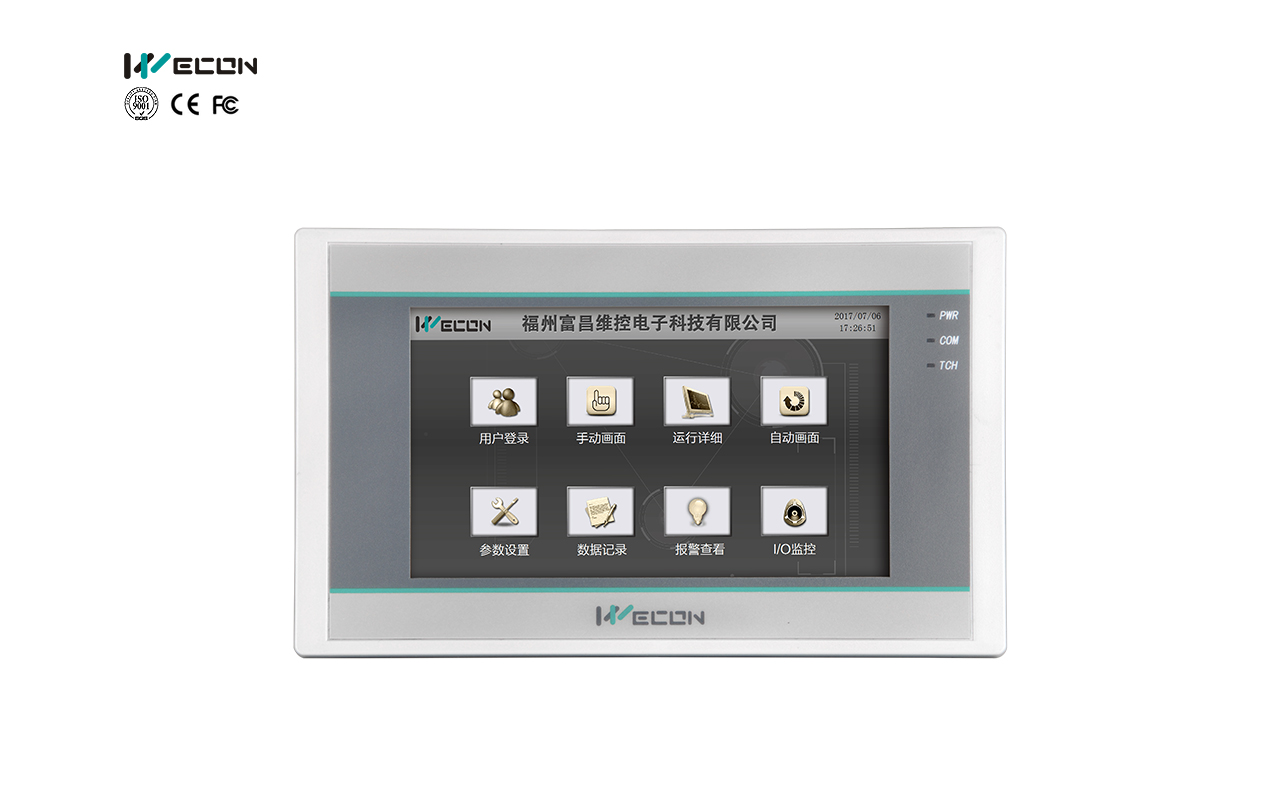

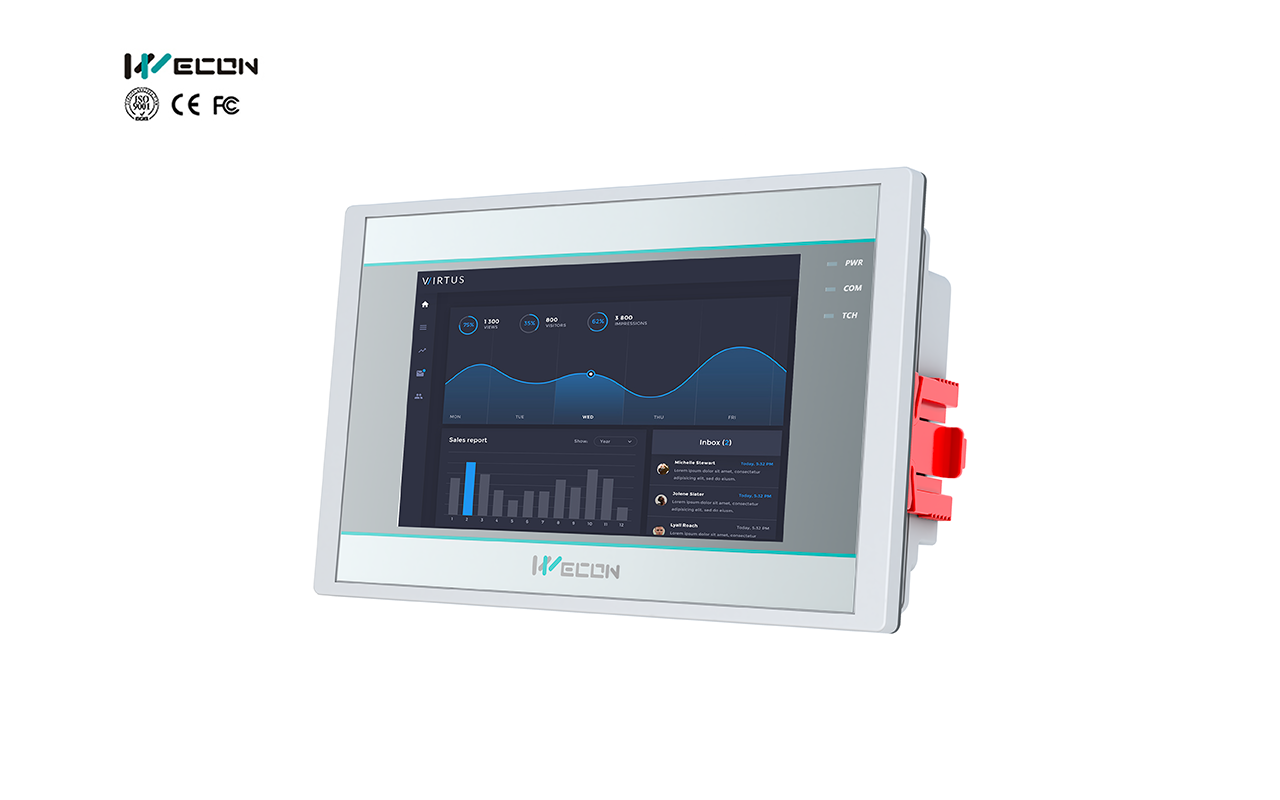

PI3043ie / PI3043ieS-N HMI

Wecon PI 4.3 inch HMI: PI3043ie

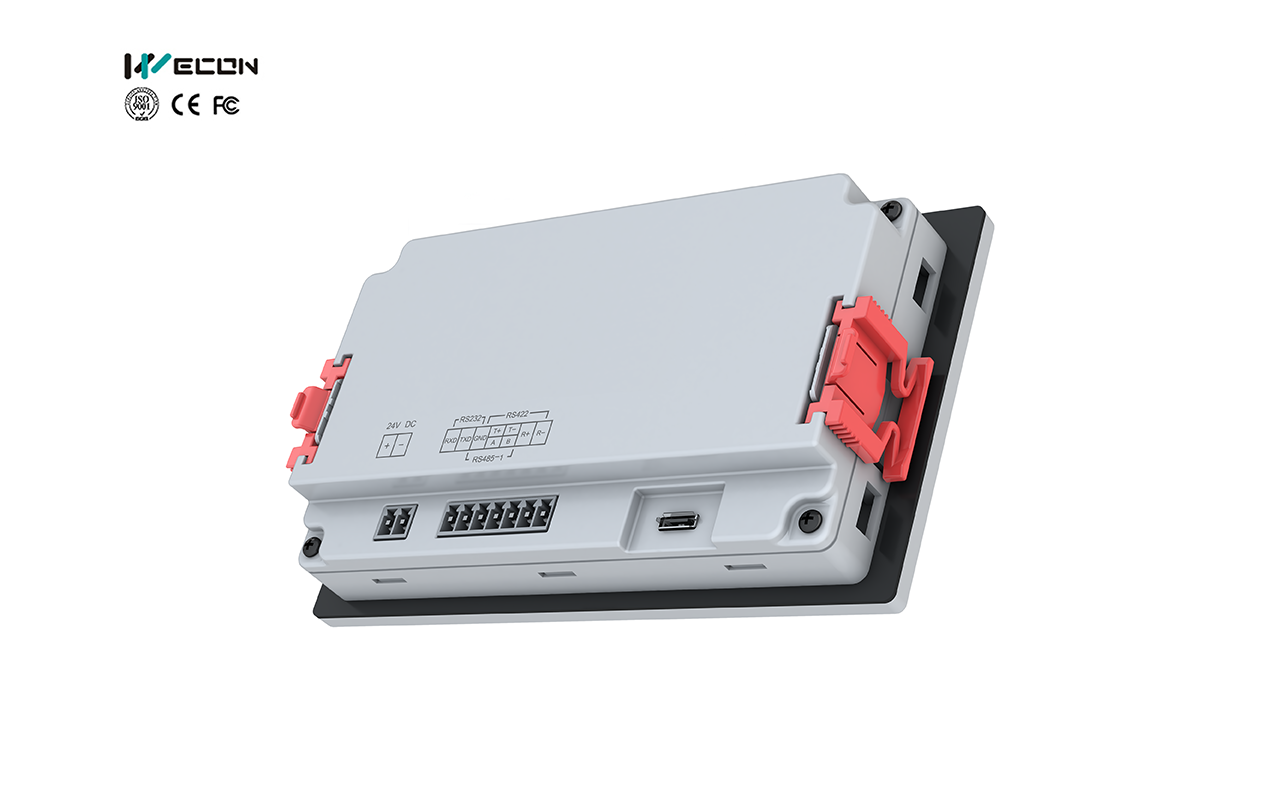

◇Ports use 7P Terminals, which extremely save space.

◇Hardware: Cortex A35 1.2GHz, 128M FLASH+ DDRII 64MB
◇Display size: 4.3 inch
◇Resolution: 480×272 TFT LCD, 16,000K colors
◇Interface: RS232, RS422 / RS485 (2 in 1)


Software&manual Inquiry sales@we-con.com.cn
Specification
Physical & Electrical

SeriesPI3000iePI3000ie

ModelPI3043iePI3043ieS-N
MainOSLinux 4.4.0 QT basedLinux 4.4.0 QT based
ProcessorCortex A35  1.2GHzCortex A35  1.2GHz
DisplaySize4.3" 4.3"
ScreenTFTTFT
Resolution480*272480*272
Color16,000k colors16,000k colors
Brightness (cd/m2)300300
BacklightLEDLED
Backlight Lifetime50,000 hours50,000 hours
Touch PanelHigh precision four-wire resistiveHigh precision four-wire resistive
Storage    Memory64 MB64 MB
Flash128 MB128 MB
SD Card Slot -- --
USB PortMicro USBMicro USB
RTCReal-time clockYesYes
CalendarYesYes

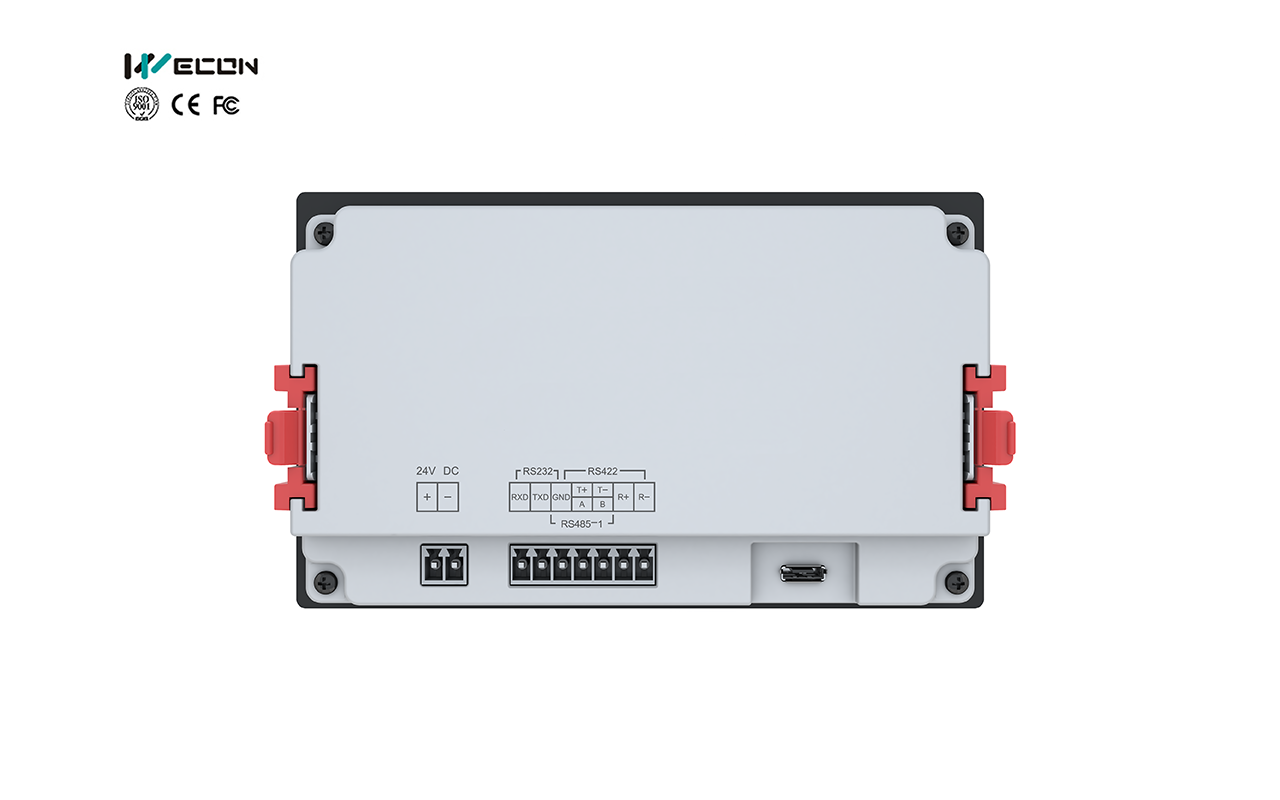

I/O PortCOM1CN1:RS422/RS485
CN2: RS232
CN1:RS422/RS485
CN2:RS232
CN3:RS485
COM2----
COM3----
Ethernet --x1
CANopen -- --
Wi-Fi -- --
4G LTE -- --
PowerRated Power< 5W< 5W
Power VoltageDC 24VDC 24V
Input rangeDC 12 ~ 28VDC 12 ~ 28V
Shell ColorGreyGrey
EnclosureShell MaterialPC+ABSPC+ABS

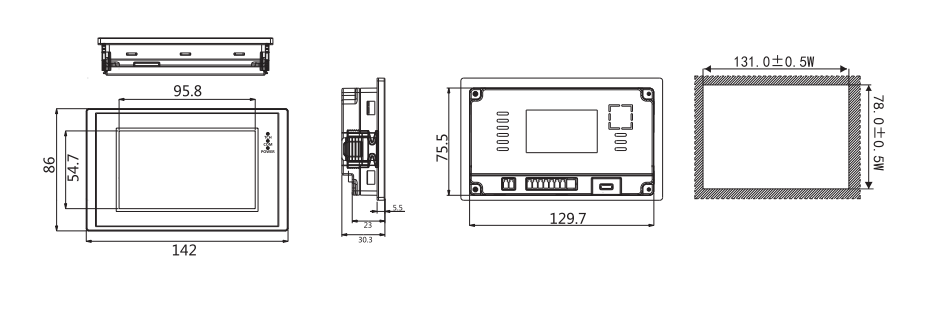

Overall Size (mm)142.0W*86.0W*30.3D142.0W*86.0W*30.3D
Mounting Size (mm)131.0W*78.0D131.0W*78.0D
Mounting MethodPanel MountPanel Mount
Weight (Kg)0.30.3
EnvironmentWorking Temperature0 ~ 50°C0 ~ 50°C
Storage Temperature-20 ~ 60°C-20 ~ 60°C
Humidity10 ~ 90%RH (Non-condensing)10 ~ 90%RH (Non-condensing)
Vibration Resistance10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
CoolingAir CoolingAir Cooling
SoftwareProgrammingPIStudioPIStudio
Remote Access -- --
Email Alarm -- --
IP Camera -- --
Audio Output -- --
Video Player -- --

Data ToolYesYes
CertificatesIP CodeIP65 (Front panel)IP65 (Front panel)
CECE MarkedCE Marked
FCCFCC Class AFCC Class A
UL -- --
