PI3102ie HMI

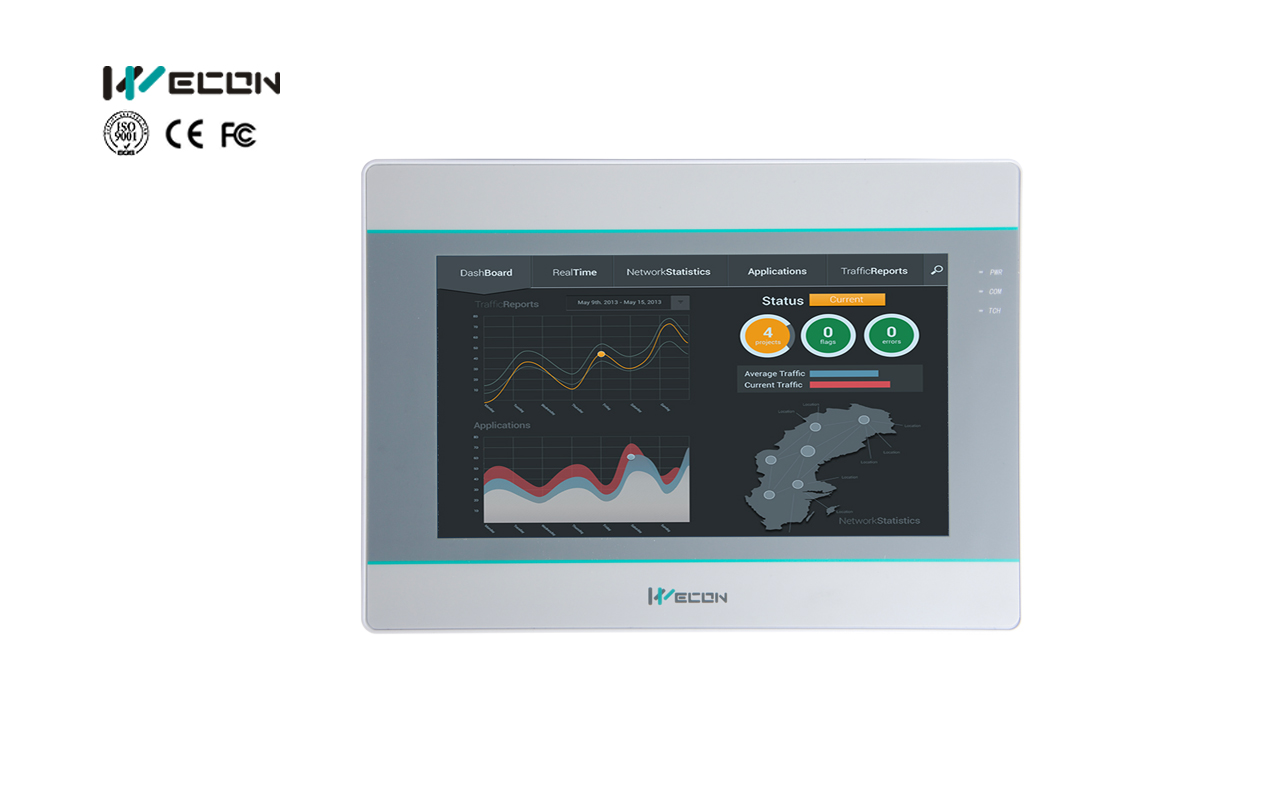

Wecon New Style 10.2 inch HMI PI3102ie

WECON 10.2 inch high performance HMI :

Faster screen update, Faster screen switch, Better communication stability.



◇Hardware: CPU Cortex A35 1.2GHz, 128M FLASH, 64M DDRAM

◇Display size: 10.2 inch
◇Resolution: 1024×600 TFT LCD, 16,000k colors
◇Interface: Com1: RS232, RS422/RS485 (2 in 1)

◇Storage: Support Date Storage, U Disk


Software&manual Inquiry sales@we-con.com.cn
Specification
Physical & Electrical

SeriesPI3000ie

ModelPI3102ie
MainOSLinux 4.4.0 QT based
ProcessorCortex A35 1.2GHz
DisplaySize10.2"
ScreenTFT
Resolution1024*600
Color16,000k colors
Brightness (cd/m2)350
BacklightLED
Backlight Lifetime50,000 hours
Touch PanelHigh precision four-wire resistive
Storage    Memory64 MB
Flash128 MB
SD Card Slot --
USB PortUSB2.0 Host + USB2.0 Client
RTCReal-time clockYes
CalendarYes
I/O PortCOM1CN1:RS422/RS485
CN2: RS232
COM2--
COM3--
Ethernet--
CANopen --
Wi-Fi --
4G LTE --
PowerRated Power<  15W
Power VoltageDC 24V
Input rangeDC 12 ~ 28V
Shell ColorGrey
EnclosureShell MaterialPC+ABS

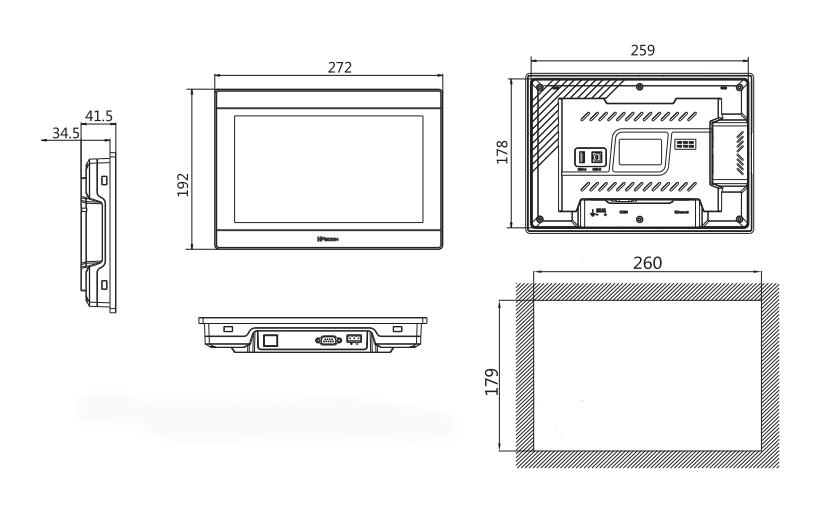

Overall Size (mm)272.0W*190.0H*41.5D
Mounting Size (mm)260.0W*179.0H
Mounting MethodPanel Mount
Weight (Kg)1.02
EnvironmentWorking Temperature-10 ~ 60°C
Storage Temperature-20 ~ 70°C
Humidity10 ~ 90%RH (Non-condensing)
Vibration Resistance10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
CoolingAir Cooling
SoftwareProgrammingPIStudio
Remote Access --
Email Alarm --
IP Camera --
Audio Output --
Video Player --

Data ToolYes
CertificatesIP CodeIP65 (Front panel)
CECE Marked
FCCFCC Class A
UL --
