PI3070i HMI

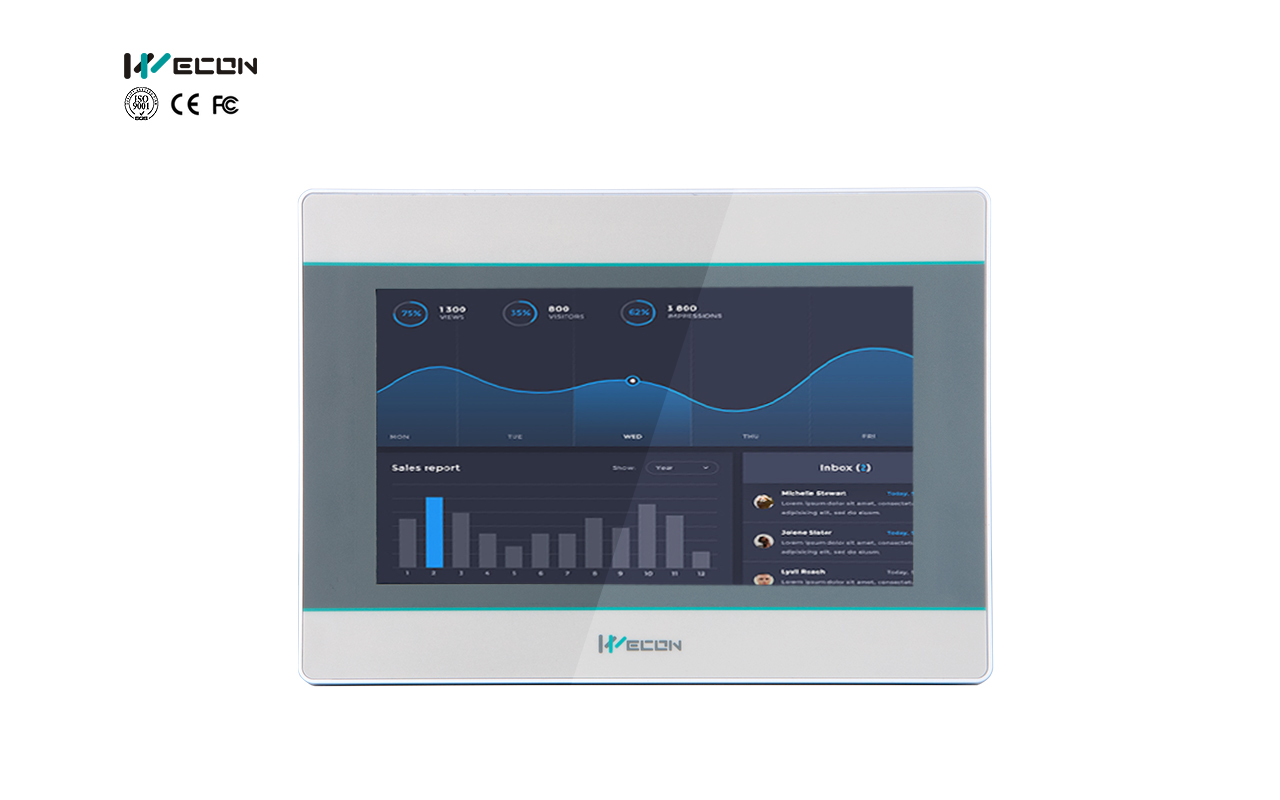

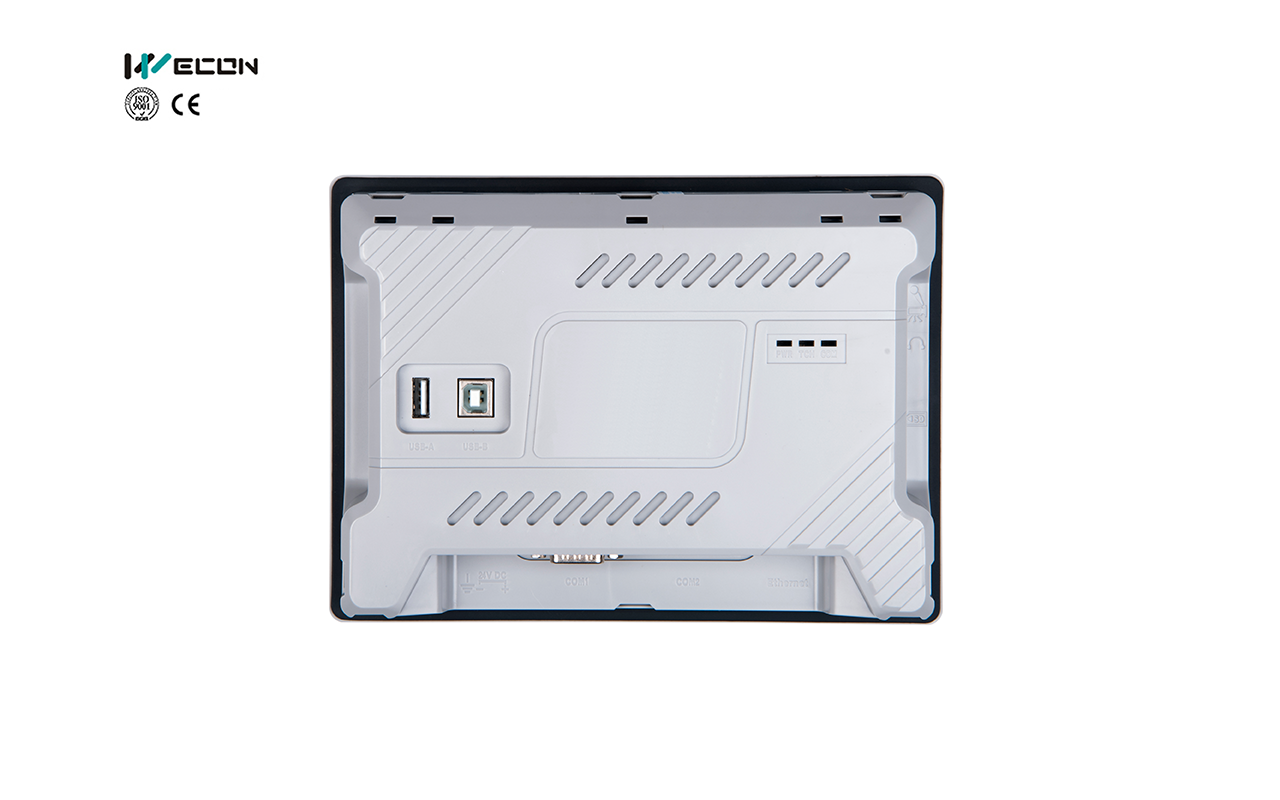

Wecon New Style 7 inch HMI PI3070i

WEcon 7 inch high performance HMI :

Faster screen update, Faster screen switch, Better communication stability.


◇Hardware: CPU Cortex A7 528MHz,128M FLASH, 128M DRMIII RAM

◇Display size: 7 inch
◇Resolution: 800×480 TFT LCD, 16,000k colors
◇Interface: COM1:RS485/RS422;  COM2:RS232

◇Storage: Support Data Storage, U Disk


Software&manual Inquiry
Specification
Physical & Electrical

SeriesPI3000iPI3000iPI3000iPI3000iPI3000i

ModelPI3070iPI3070iSPI3070i-NPI3070i-SLPI3070i-N-SL
MainOSLinux 4.9.11 QT basedLinux 4.9.11 QT basedLinux 4.9.11 QT basedLinux 4.9.11 QT basedLinux 4.9.11 QT based
ProcessorCortex A7 528MHzCortex A7 528MHzCortex A7 528MHzCortex A7 528MHzCortex A7 528MHz
DisplaySize7" 7" 7" 7" 7"
ScreenTFTTFTTFTTFTTFT
Resolution800*480800*480800*480800*480800*480
Color16,000k colors16,000k colors16,000k colors16,000k colors16,000k colors
Brightness (cd/m2)250250250250250
BacklightLEDLEDLEDLEDLED
Backlight Lifetime50,000 hours50,000 hours50,000 hours50,000 hours50,000 hours
Touch PanelHigh precision four-wire resistiveHigh precision four-wire resistiveHigh precision four-wire resistiveHigh precision four-wire resistiveHigh precision four-wire resistive
Storage    Memory128 MB128 MB128 MB128 MB128 MB
Flash128 MB128 MB128 MB128 MB128 MB
SD Card Slot -- -- -- -- --
USB PortUSB2.0 Host + USB2.0 ClientUSB2.0 Host + USB2.0 ClientUSB2.0 Host + USB2.0 ClientUSB2.0 Host + USB2.0 ClientUSB2.0 Host + USB2.0 Client
RTCReal-time clockYesYesYesYesYes
CalendarYesYesYesYesYes
I/O PortCOM1CN1:RS422/RS485
CN2: RS232
CN1:RS422/RS485
CN2:RS232
CN3:RS485
CN1:RS422/RS485
CN2: RS232
CN1:RS422/RS485
CN2: RS232
CN1:RS422/RS485
CN2: RS232
COM2----------
COM3----------
Ethernet -- --x1 --x1
CANopen -- -- -- -- --
Wi-Fi -- -- -- -- --
4G LTE -- -- -- -- --
PowerRated Power<  8W<  8W<  8W<  8W<  8W
Power VoltageDC 24VDC 24VDC 24VDC 24VDC 24V
Input rangeDC 12 ~ 28VDC 12 ~ 28VDC 12 ~ 28VDC 12 ~ 28VDC 12 ~ 28V
Shell ColorGreyGreyGreyGreyGrey
EnclosureShell MaterialPC+ABSPC+ABSPC+ABSPC+ABSPC+ABS

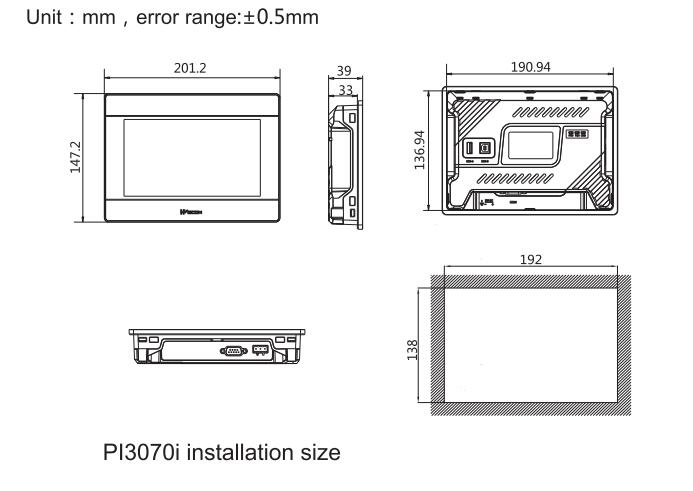

Overall Size (mm)201.2W*147.2H*39.0D201.2W*147.2H*39.0D201.2W*147.2H*39.0D191.2W*137.2H*41.0D191.2W*137.2H*41.0D
Mounting Size (mm)192.0W*138.0H192.0W*138.0H192.0W*138.0H172.0W*111.00H172.0W*111.00H
Mounting MethodPanel MountPanel MountPanel MountPanel Mount (Open frame)Panel Mount (Open frame)
Weight (Kg)0.740.740.740.740.74
EnvironmentWorking Temperature-10 ~ 60°C-10 ~ 60°C-10 ~ 60°C-10 ~ 60°C-10 ~ 60°C
Storage Temperature-20 ~ 70°C-20 ~ 70°C-20 ~ 70°C-20 ~ 70°C-20 ~ 70°C
Humidity10 ~ 85%RH (Non-condensing)10 ~ 85%RH (Non-condensing)10 ~ 85%RH (Non-condensing)10 ~ 85%RH (Non-condensing)10 ~ 85%RH (Non-condensing)
Vibration Resistance10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
CoolingAir CoolingAir CoolingAir CoolingAir CoolingAir Cooling
SoftwareProgrammingPIStudioPIStudioPIStudioPIStudioPIStudio
Remote Access -- -- -- -- --
Email Alarm -- -- -- -- --
IP Camera -- -- -- -- --
Audio Output -- -- -- -- --
Video Player -- -- -- -- --

Data ToolYesYesYesYesYes
CertificatesIP CodeIP65 (Front panel)IP65 (Front panel)IP65 (Front panel)IP65 (Front panel)IP65 (Front panel)
CECE MarkedCE MarkedCE MarkedCE MarkedCE Marked
FCCFCC Class AFCC Class AFCC Class AFCC Class AFCC Class A
UL -- -- -- -- --
