PI3102i HMI

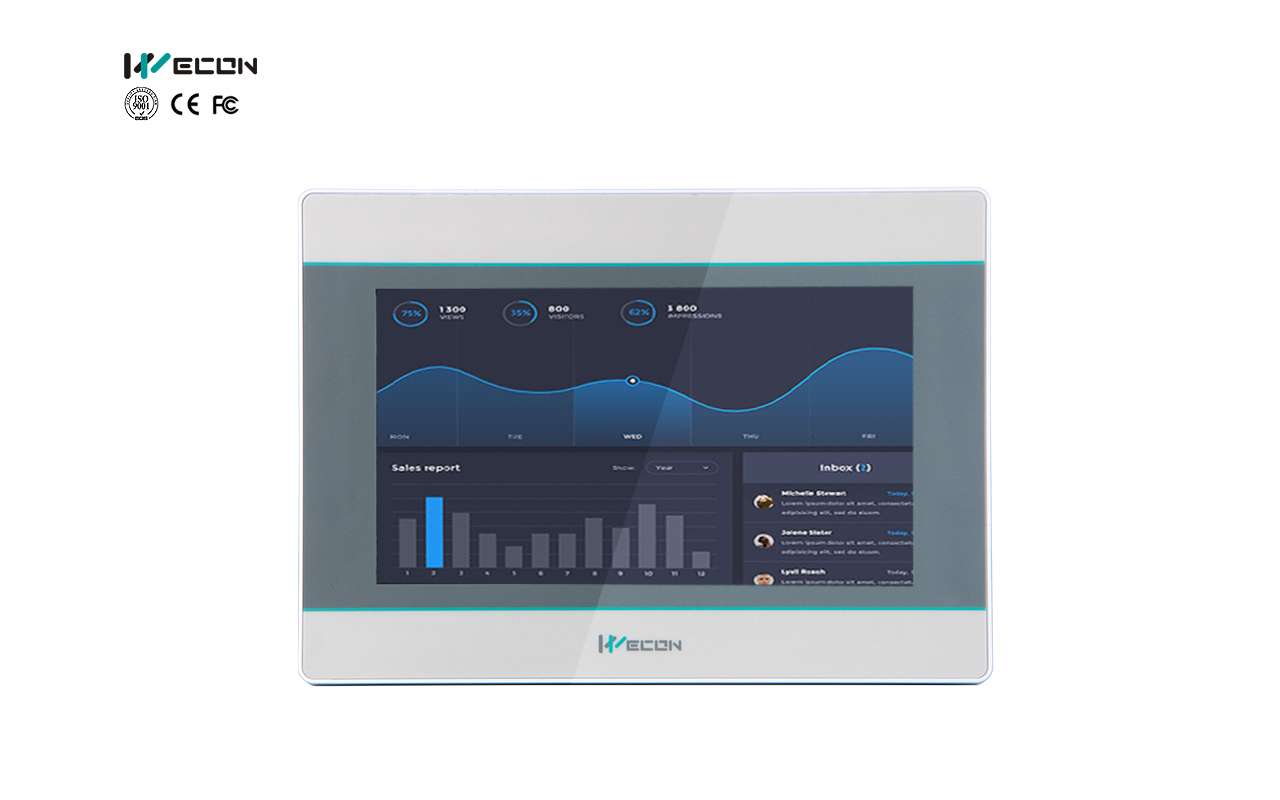

Wecon New Style 10.2 inch HMI PI3102i

WECON 10.2 inch high performance HMI :

Faster screen update, Faster screen switch, Better communication stability.



◇Hardware: CPU Cortex A7 528MHz, 128M FLASH, 128M DDRAM

◇Display size: 10.2 inch, Ethernet supported
◇Resolution: 1024×600 TFT LCD, 16,000k colors

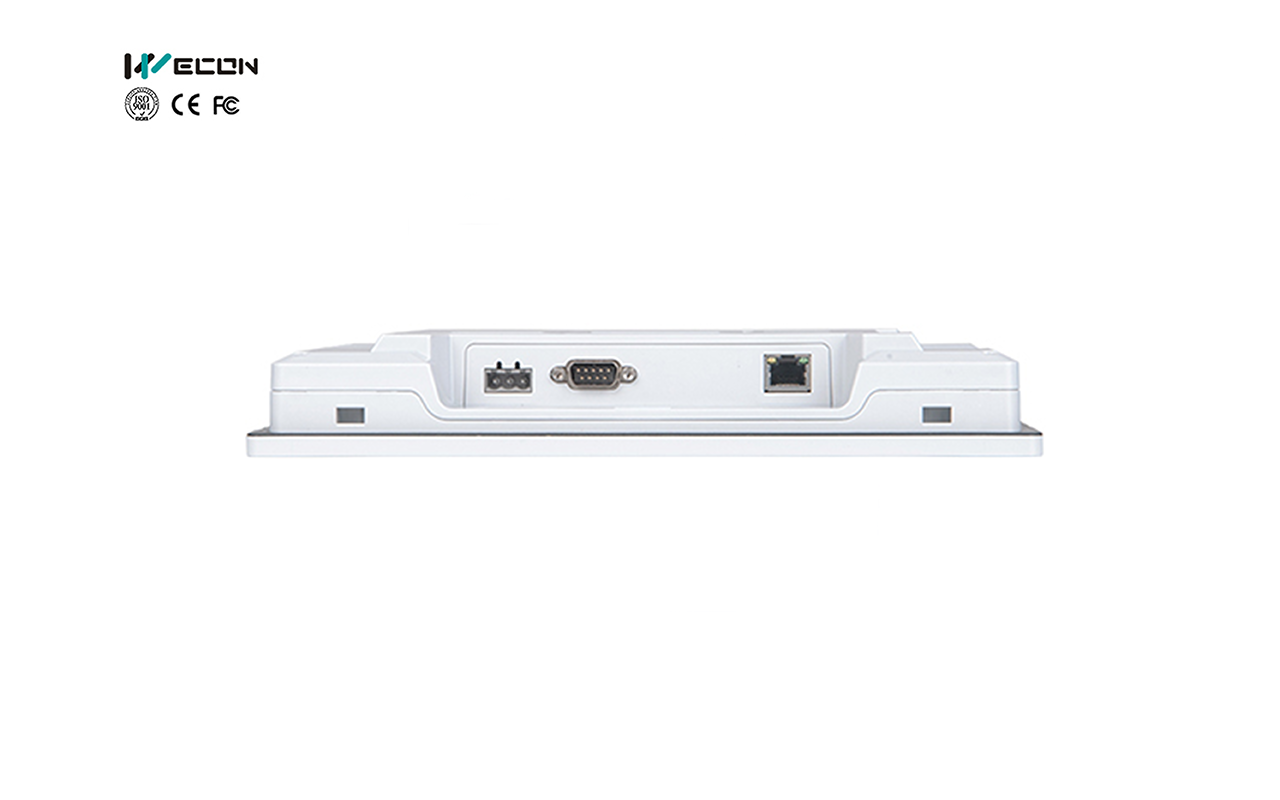

◇Interface: COM1:RS485/RS422  COM2:RS232

◇Storage: Support Date Storage, U Disk


Software&manual Inquiry
Specification
Physical & Electrical
ModelPI3102iPI3102iS-N
MainOSLinux 4.9.11 QT basedLinux 4.9.11 QT based
ProcessorCortex A7 528MHzCortex A7 528MHz
DisplaySize10.2" 10.2"
ScreenTFTTFT
Resolution1024*6001024*600
Color16,000k colors16,000k colors
Brightness (cd/m2)350350
BacklightLEDLED
Backlight Lifetime50,000 hours50,000 hours
Touch PanelHigh precision four-wire resistiveHigh precision four-wire resistive
Storage    Memory128 MB128 MB
Flash128 MB128 MB
SD Card Slot -- --

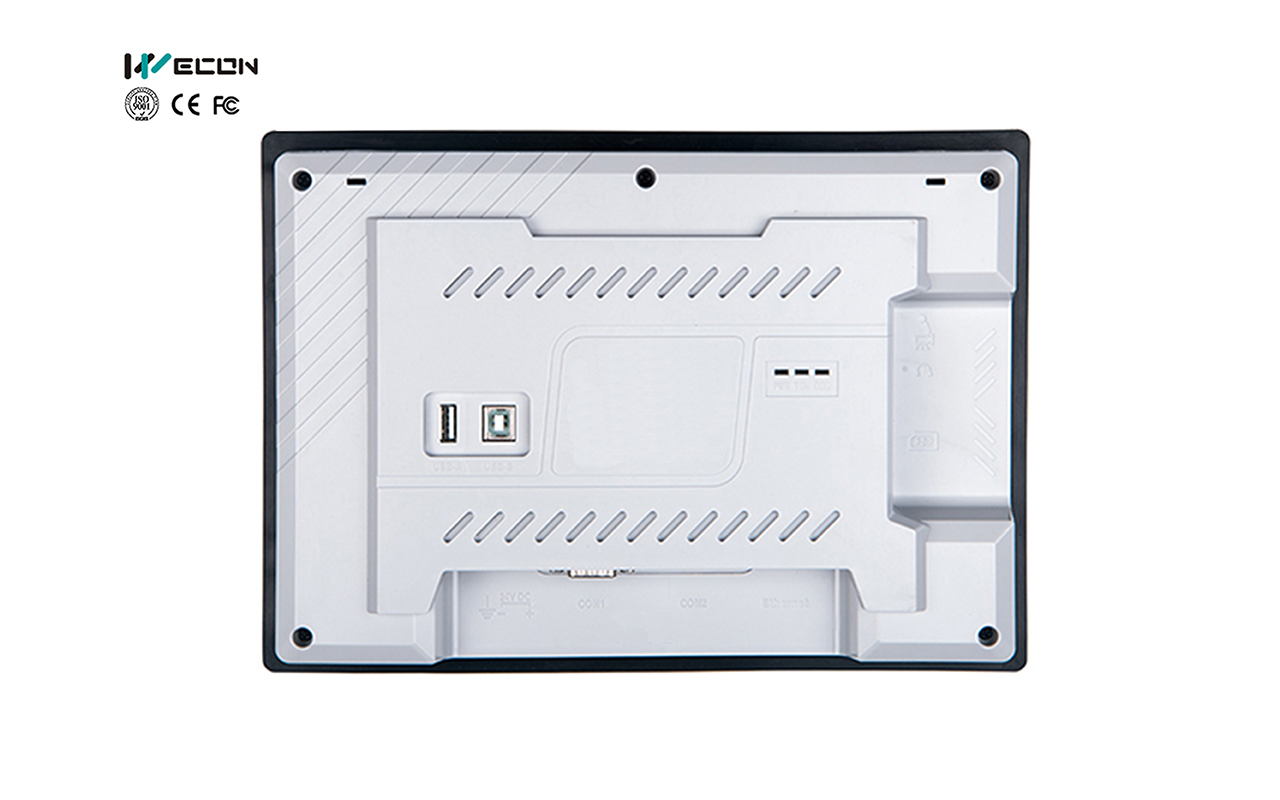

USB PortUSB2.0 Host + USB2.0 ClientUSB2.0 Host + USB2.0 Client
RTCReal-time clockYesYes
CalendarYesYes
I/O PortCOM1CN1:RS422/RS485
CN2: RS232
CN1:RS422/RS485
CN2:RS232
CN3:RS485
COM2----
COM3----
Ethernet x1  x1
CANopen -- --
Wi-Fi -- --
4G LTE -- --
PowerRated Power<  10W<  10W
Power VoltageDC 24VDC 24V
Input rangeDC 12 ~ 28VDC 12 ~ 28V
Shell ColorGreyGrey
EnclosureShell MaterialPC+ABSPC+ABS

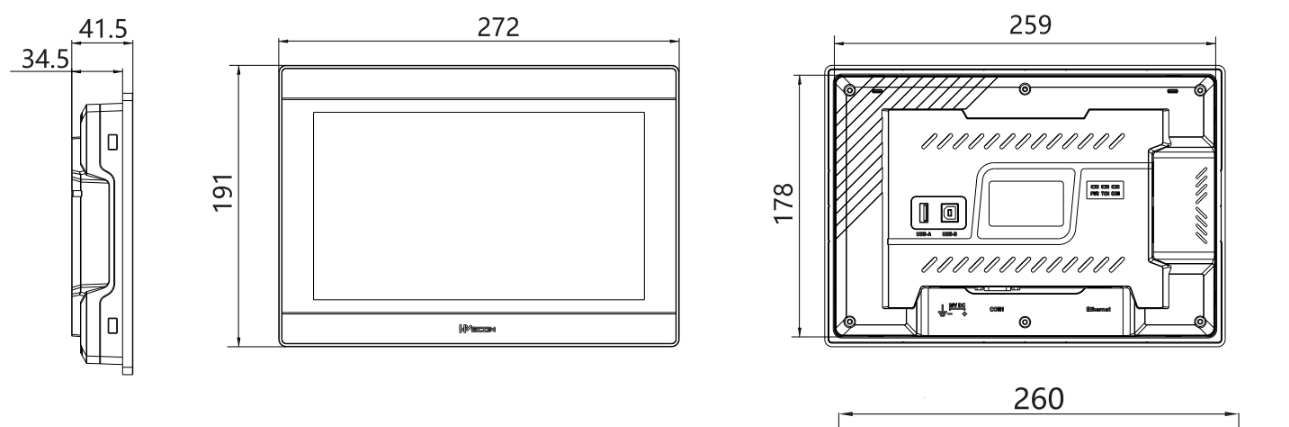

Overall Size (mm)272.0W*190.0H*41.5D272.0W*190.0H*41.5D
Mounting Size (mm)260.0W*179.0H260.0W*179.0H
Mounting MethodPanel MountPanel Mount
Weight (Kg)1.311.31
EnvironmentWorking Temperature-10 ~ 60°C-10 ~ 60°C
Storage Temperature-20 ~ 70°C-20 ~ 70°C
Humidity10 ~ 85%RH (Non-condensing)10 ~ 85%RH (Non-condensing)
Vibration Resistance10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
CoolingAir CoolingAir Cooling
SoftwareProgrammingPIStudioPIStudio
Remote Access -- --
Email Alarm -- --
IP Camera -- --
Audio Output -- --
Video Player -- --

Data ToolYesYes
CertificatesIP CodeIP65 (Front panel)IP65 (Front panel)
CECE MarkedCE Marked
FCCFCC Class AFCC Class A
UL -- --
