Specification
Physical & Electrical
ModelPI3070i-2S
MainOSLinux 4.9.11 QT based
ProcessorCortex A7 528MHz
DisplaySize7"
ScreenTFT
Resolution800*480
Color16,000k colors
Brightness (cd/m2)250
BacklightLED
Backlight Lifetime50,000 hours
Touch PanelHigh precision
four-wire resistive
Storage    Memory128 MB
Flash128 MB
SD Card SlotYES
USB PortUSB2.0 Host +
USB2.0 Client
RTCReal-time clockYes
CalendarYes

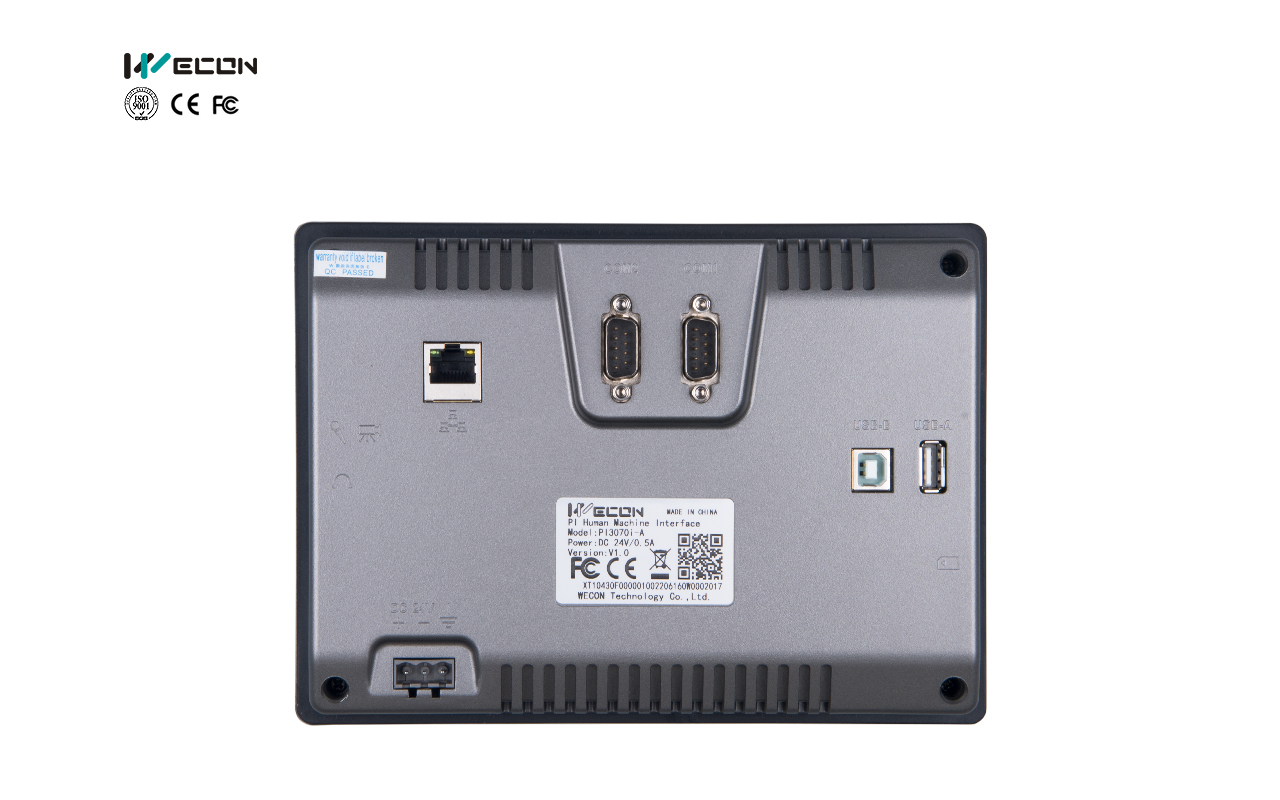

I/O PortCOM1RS232,RS422/RS485
COM2RS232,RS485
COM3RS485
Ethernet x1
CANopen --
Wi-Fi --
4G LTE --
PowerRated Power<  8W
Power VoltageDC 24V
Input rangeDC 12 ~ 28V
EnclosureShell ColorGrey
Shell MaterialPlastic+ABS
(Polycarbonate)

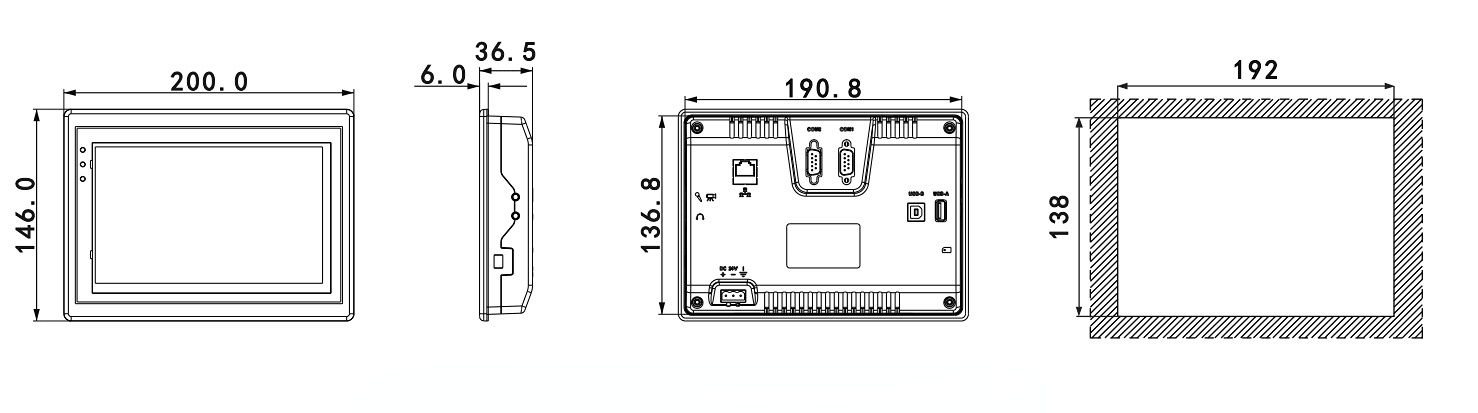

Overall Size (mm)200.0W*146.0H*36.5D
Mounting Size (mm)192W*138H
Mounting MethodPanel Mount
Weight (Kg)0.74
EnvironmentWorking Temperature-10 ~ 55°C
Storage Temperature-20 ~ 70°C
Humidity10 ~ 85RH
(Non-condensing)
Vibration Resistance10 ~ 25 Hz
(X, Y, Z direction 2G/30 minutes)
CoolingAir Cooling
SoftwareProgrammingPIStudio
Data ToolYes
Email AlarmUD
IP Camera --
Data Validity --
MQTT v2.0 supported
LAN Monitoring --
Lua ScriptYes
CertificatesIP CodeIP65 (Front panel)
CECE Marked
FCCFCC Class A
