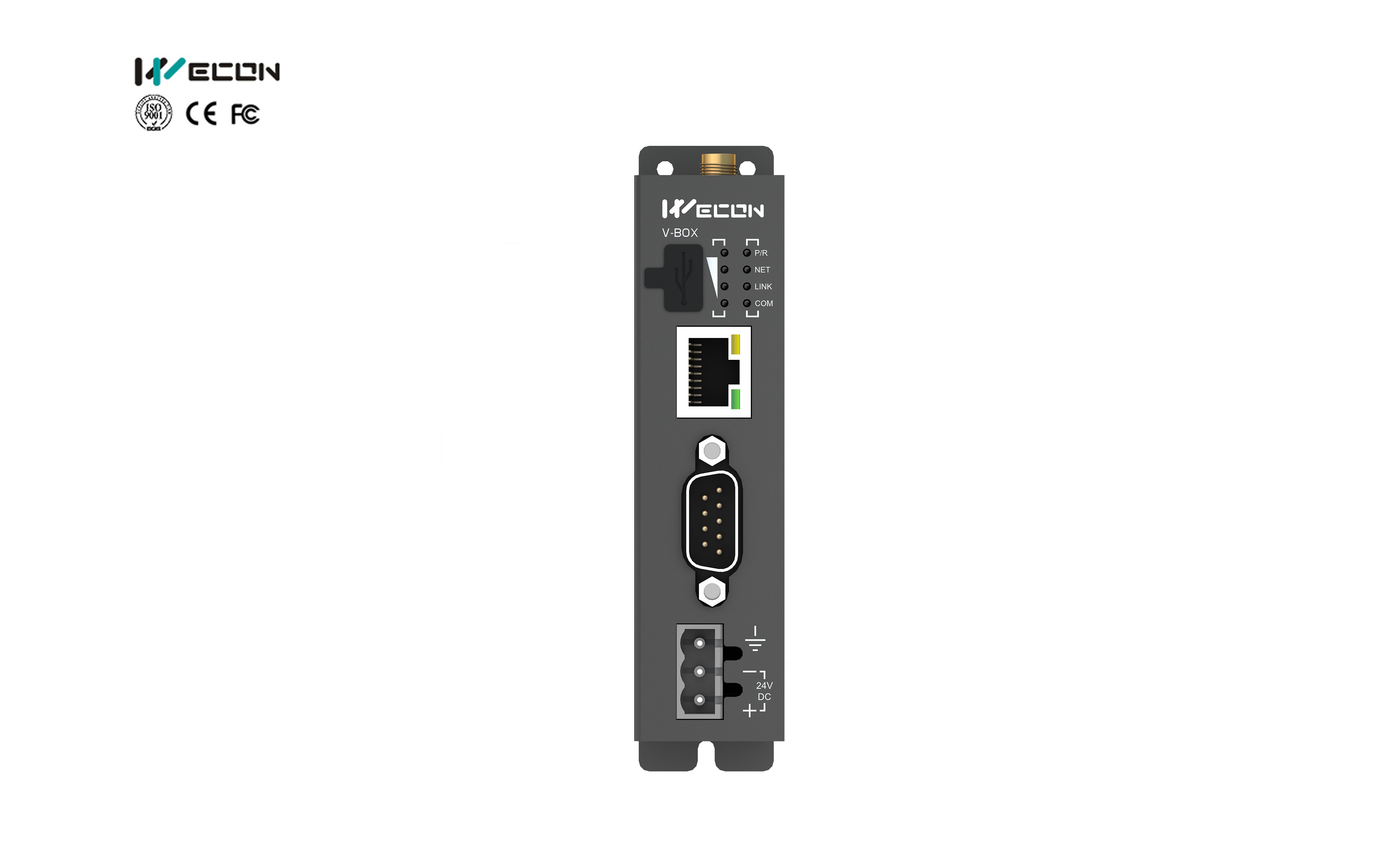

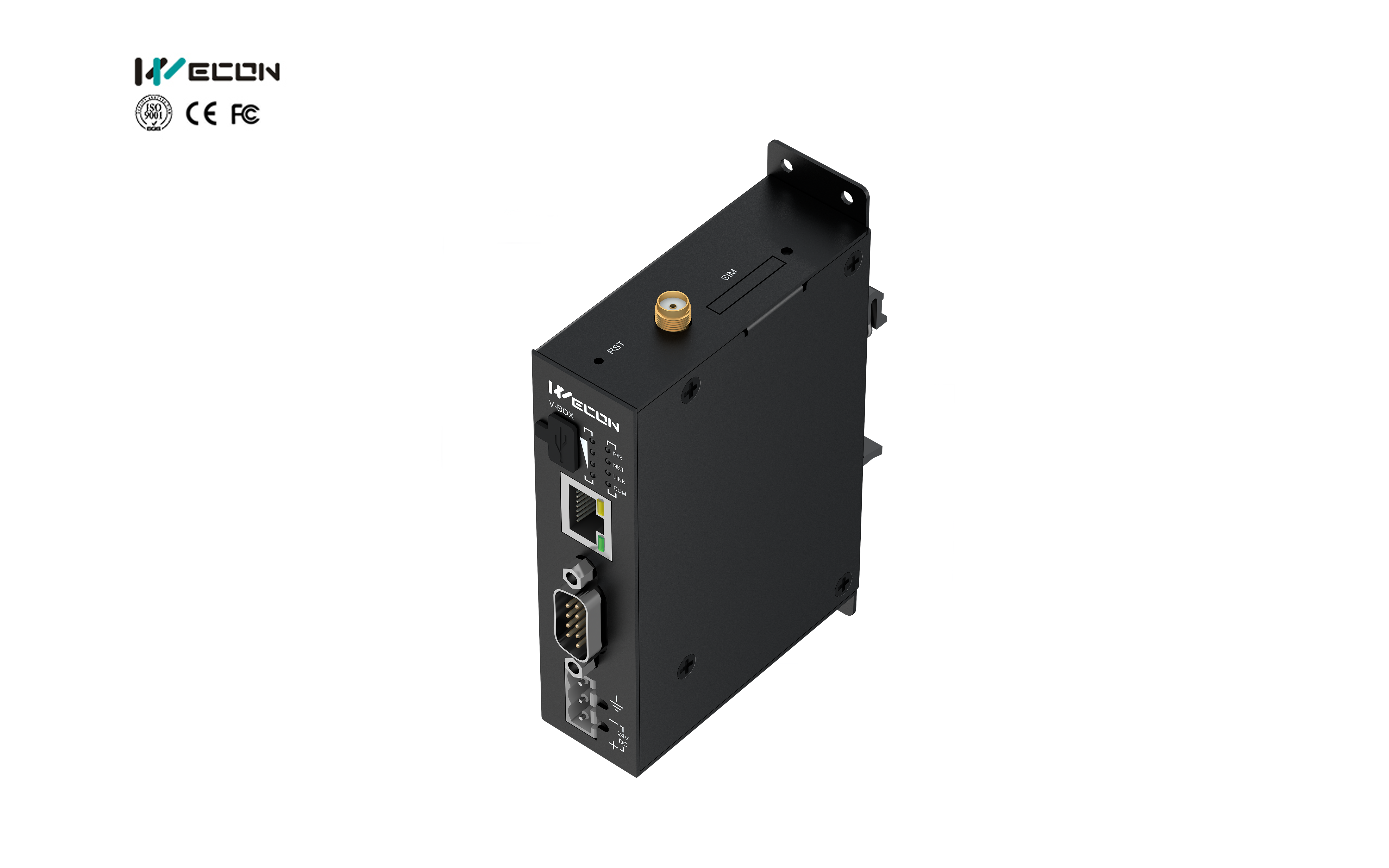

V-BOX E SERIES

Main Features:

V-BOX is a device for use in remote debugging, web scada, API interface, app monitoring.

*Get data via RS-232 / RS-485 / Ethernet communication, offer Modbus RTU / Modbus TCP communication.

*Supports communication protocols of the main brands of PLC, frequency inverters, network analyzers, among others.

*Connects to the cloud platform through Ethernet, 4G connectivity.

*Remote monitoring with upload and download option of PLC programming (Wecon).

 *Serial Port Pass-through to realize PLC remote debugging or download.

*OPC access.

*Development of Scada in the Cloud.

*Datalogger and download of data, alarms and history directly to Excel.

*Access available from mobile devices through the V-Box app (Android / IOS)


Software&manual Inquiry
Specification
Physical & Electrical

Model

COM

Ethernet

Monitoring

Alarm

Data Record

Validity

WIFI / 4G

WVPN

Pass-through

Script

V-BOX E-00

2 in 1

1

200

50

20

60 days /100 millions

N/A

N/A

N/A

V-BOX E-4G

2 in 1

1

250

100

50

90 days /100 millions

4G

N/A

YES


Items

V-BOX E-00

V-BOX E-4G

OS

Linux

CPU

High Performance CPU

Flash

128MB

RAM

DDRIII 64MB

SD Card

N/A

USB

OTG USB / Device USB

Serial Port

COM1: RS232, RS422 / RS485 (2 in 1)

Ethernet Port

1 Ethernet port

WIFI

N/A

Power Supply

24VDC (12~28VDC)

Power Consumption

<10W

Enclosure

Metal shell

Dimension(W*H*D)

101.0mm*73.2mm*26.8mm

Mounting Size

110.0mm*15.6mm

Weight (KG)

0.26

Vibration Resistance

10~25Hz (X, Y, Z direction 2G/30 minutes)

Storage Temperature

-20°C~70°C

Working Temperature

-10°C~60°C

Relative Humidity

10~85% RH (Non-condensing)

CE Certification

CE marked

FCC Certification

FCC Class A

Http Interface

Yes

Remote Update

Yes

Configuration Backup

Yes

Off-line Transmission

Yes

GPS

N/A

LBS
