Specification
Physical & Electrical
ModelPI3102i-2S
MainOSLinux 4.9.11 QT based
ProcessorCortex A7 528MHz
DisplaySize10.2"
ScreenTFT
Resolution1024*600
Color16,000k colors
Brightness (cd/m2)350
BacklightLED
Backlight Lifetime50,000 hours
Touch PanelHigh precision four-wire resistive
Storage    Memory128 MB
Flash128 MB
SD Card SlotYES
USB PortUSB2.0 Host + USB2.0 Client
RTCReal-time clockYes
CalendarYes

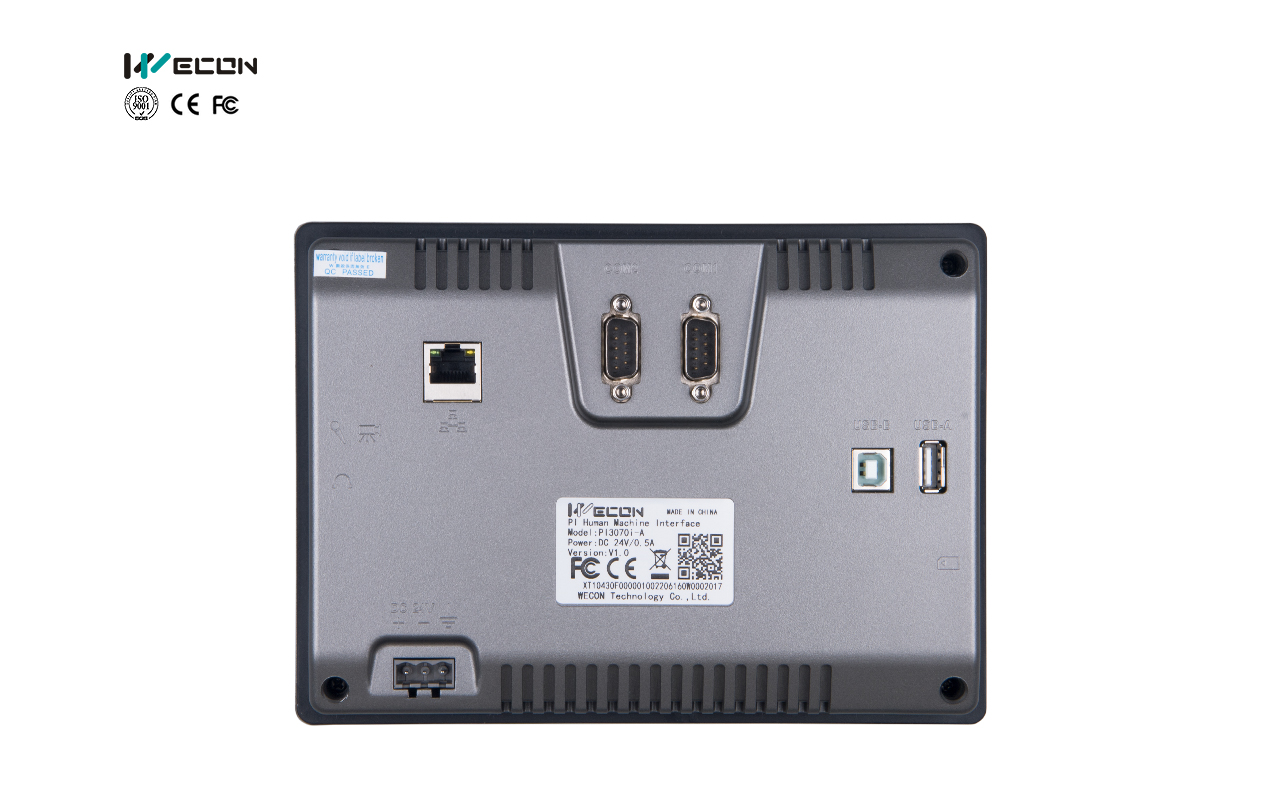

I/O PortCOM1

RS232,RS422/RS485

COM2RS232,RS485
COM3RS485
Ethernet x1
CANopen --
Wi-Fi --
4G LTE --
PowerRated Power<  10W
Power VoltageDC 24V
Input rangeDC 12 ~ 28V
Shell ColorGrey
EnclosureShell MaterialPC+ABS

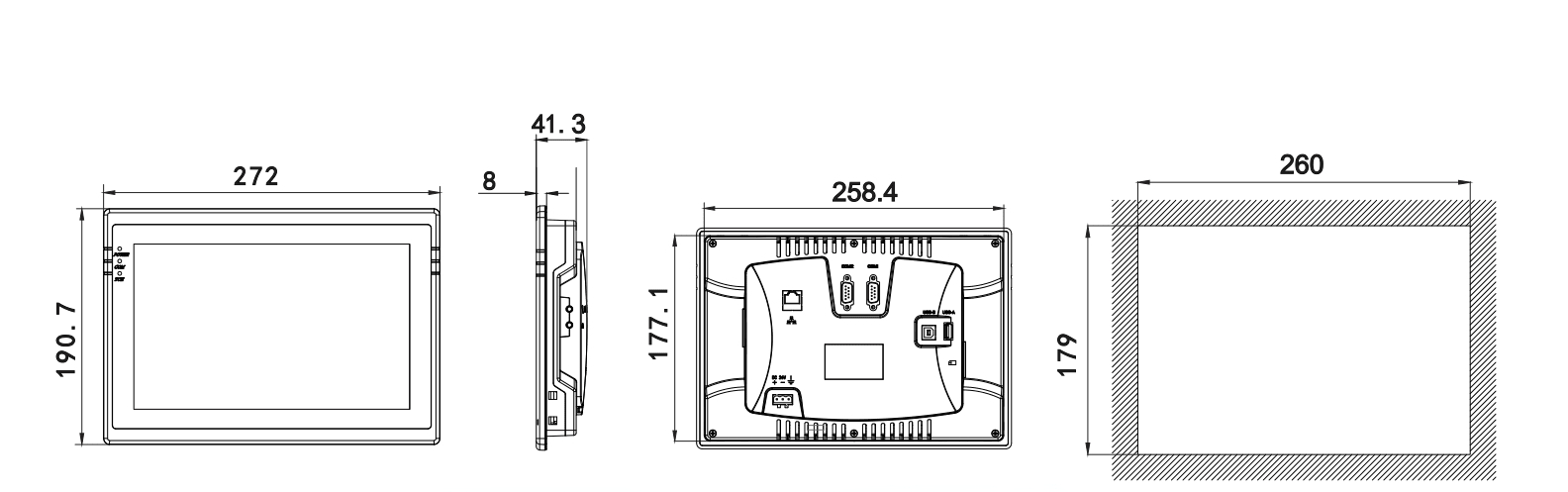

Overall Size (mm)272.0W*190.0H*41.5D
Mounting Size (mm)260.0W*179.0H
Mounting MethodPanel Mount
Weight (Kg)1.31
EnvironmentWorking Temperature-10 ~ 60°C
Storage Temperature-20 ~ 70°C
Humidity10 ~ 85%RH (Non-condensing)
Vibration Resistance10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
CoolingAir Cooling
SoftwareProgrammingPIStudio
Remote Access --
Email Alarm --
IP Camera --
Audio Output --
Video Player --
Data ToolYes
CertificatesIP CodeIP65 (Front panel)
CECE Marked
FCCFCC Class A
UL --
