*Motherboard specifications: Quad core high performance CPU comes with a 8G Flash/2G RAM memory.
*Display: 15 inch; Resolution: 1920*1080
*Interfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port.
*Download methods: USB download cable, USB flash drive download, LAN download, remote download.
*Enclosure: Aluminum alloy material
Model | V-Net Functions | MQTT | Lua Script | LAN Monitoring | 4G / WIFI | |||||||
Realtime Data | Alarm Data | History Data | APP & Remote Control | Remote Update HMI | WVPN | Cloud SCADA | Pass-through | |||||
PI9150ig(N) | 500 | 300 | 200 | √ | √ | √ | √ | Serial | √ | √ | √ | X |
PI9150ig(NWG) | 500 | 300 | 200 | √ | √ | √ | √ | Serial | √ | √ | √ | 4G |
Main | OS | Linux 4.4.0 QT based |
Display | Size | 15" |
Screen | TFT | |
Resolution | 1920*1080 | |
Color | 260k colors | |
Brightness (cd/m2) | 350 | |
Backlight | LED | |
Backlight Lifetime | 50,000 hours | |
Touch Panel | High precision four-wire resistive | |
Storage | Memory | 2G |
Flash | 8G | |
SD Card Slot | YES | |
USB Port | USB2.0 Host + USB2.0 Client | |
RTC | Real-time clock | Yes |
Calendar | Yes | |
I/O Port | COM1 | CN1:RS422/RS485 |
COM2 | -- | |
COM3 | -- | |
Ethernet | x2 | |
CANopen | -- | |
Power | Rated Power | < 15W |
Power Voltage | DC 24V | |
Input range | DC 18~ 28V | |
Shell Color | Silvery | |
Enclosure | Shell Material | Aluminum + Metal + ABS |

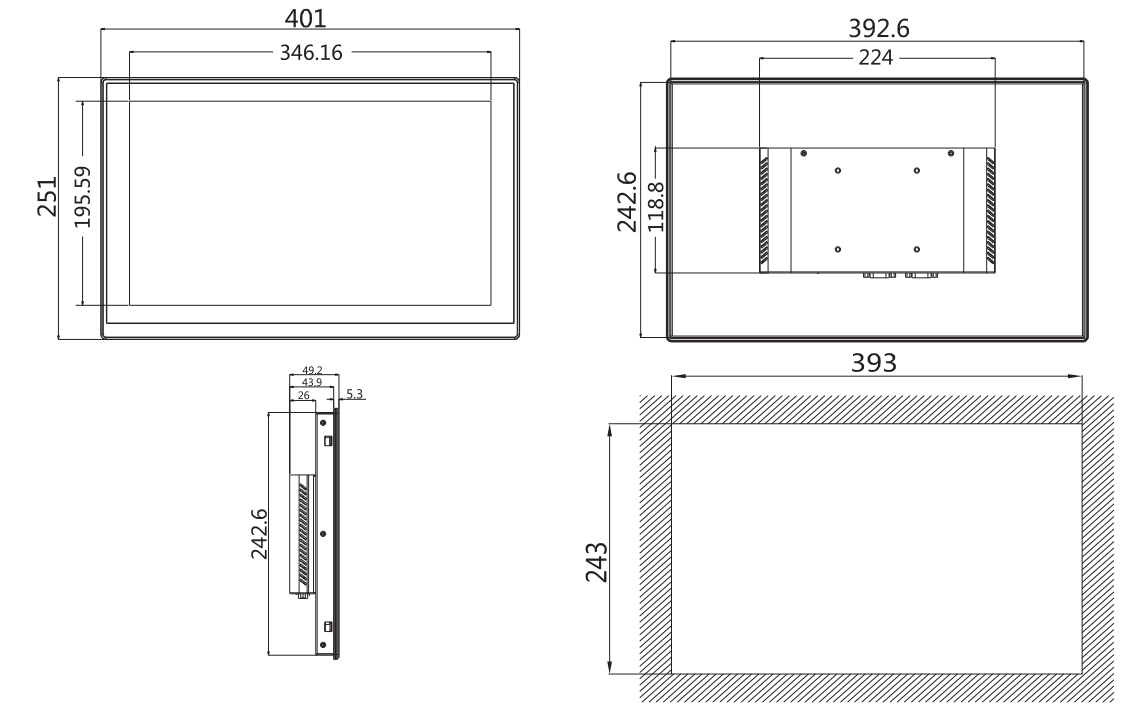

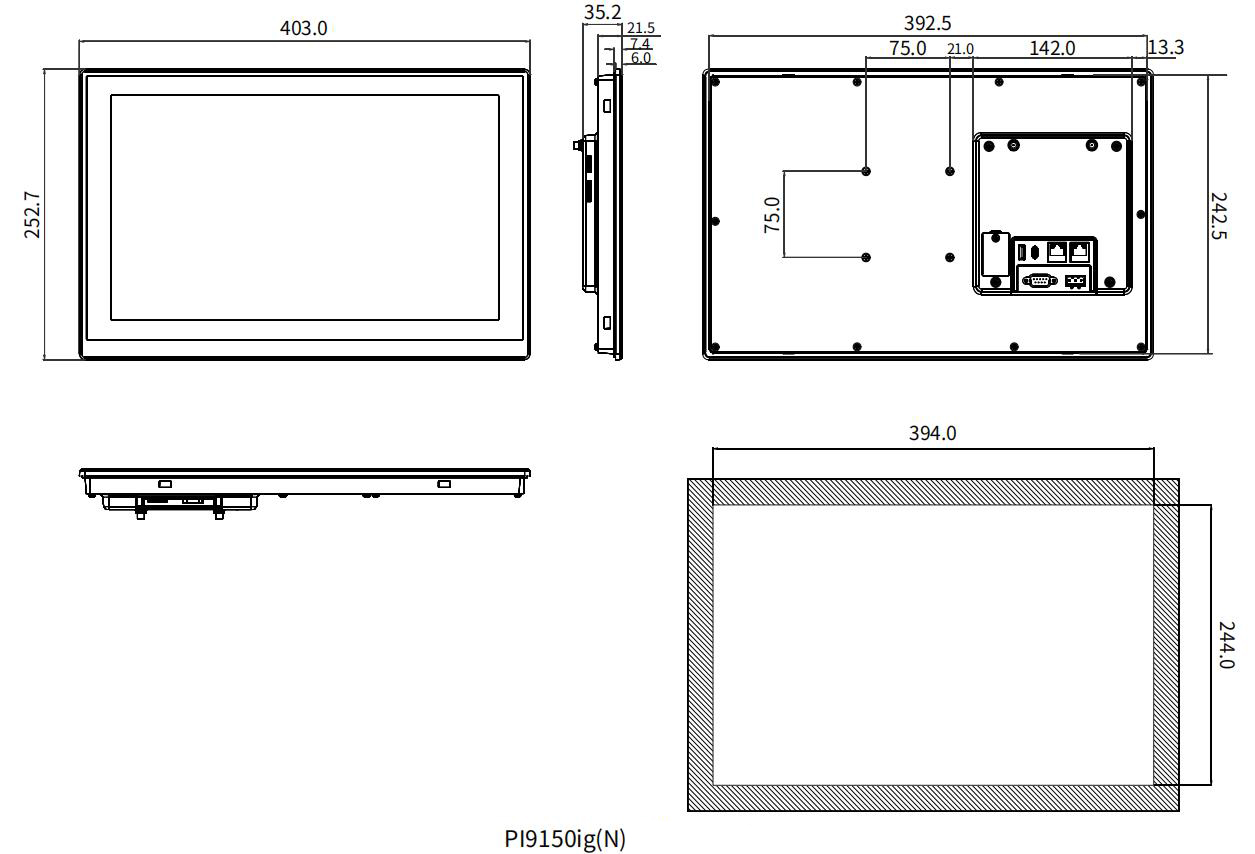

Overall Size (mm) | 403.0W*252.7H*35.2D | |
Mounting Size (mm) | 394.0W*244.0H | |
Mounting Method | Panel Mount | |
Weight (Kg) | 2.46 | |
Environment | Working Temperature | 0 ~ 50°C |
Storage Temperature | -20 ~ 70°C | |
Humidity | 10 ~ 90％RH (Non-condensing) | |
Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | |
Cooling | Air Cooling | |
Software | Programming | PI Studio |
Remote Access | YES | |
Email Alarm | YES | |
IP Camera | YES | |
Audio Output | YES | |
Video Player | YES | |
Data Tool | YES | |
Certificates | IP Code | IP65 (Front panel) |
CE | CE Marked | |
FCC | FCC Class A |
