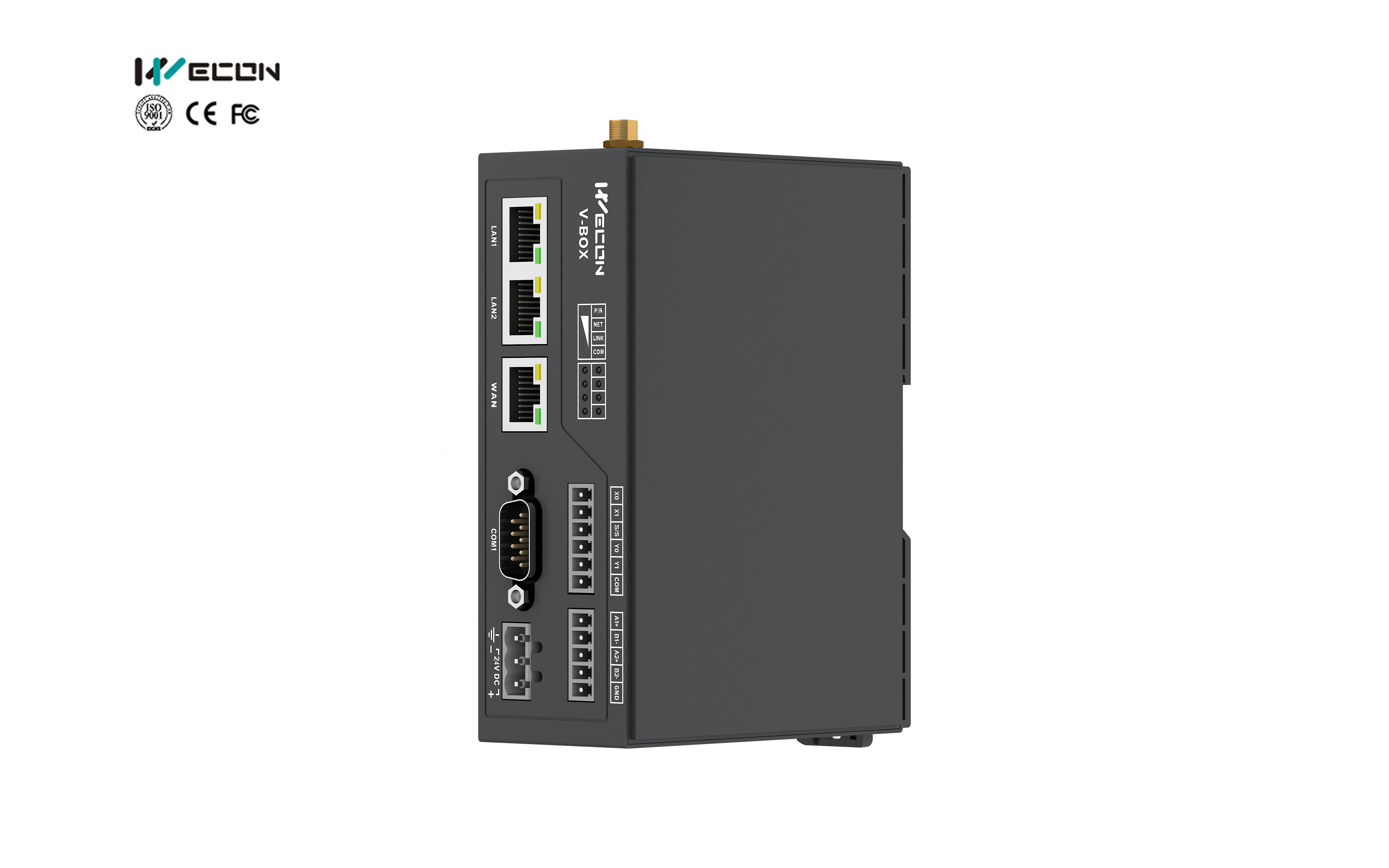

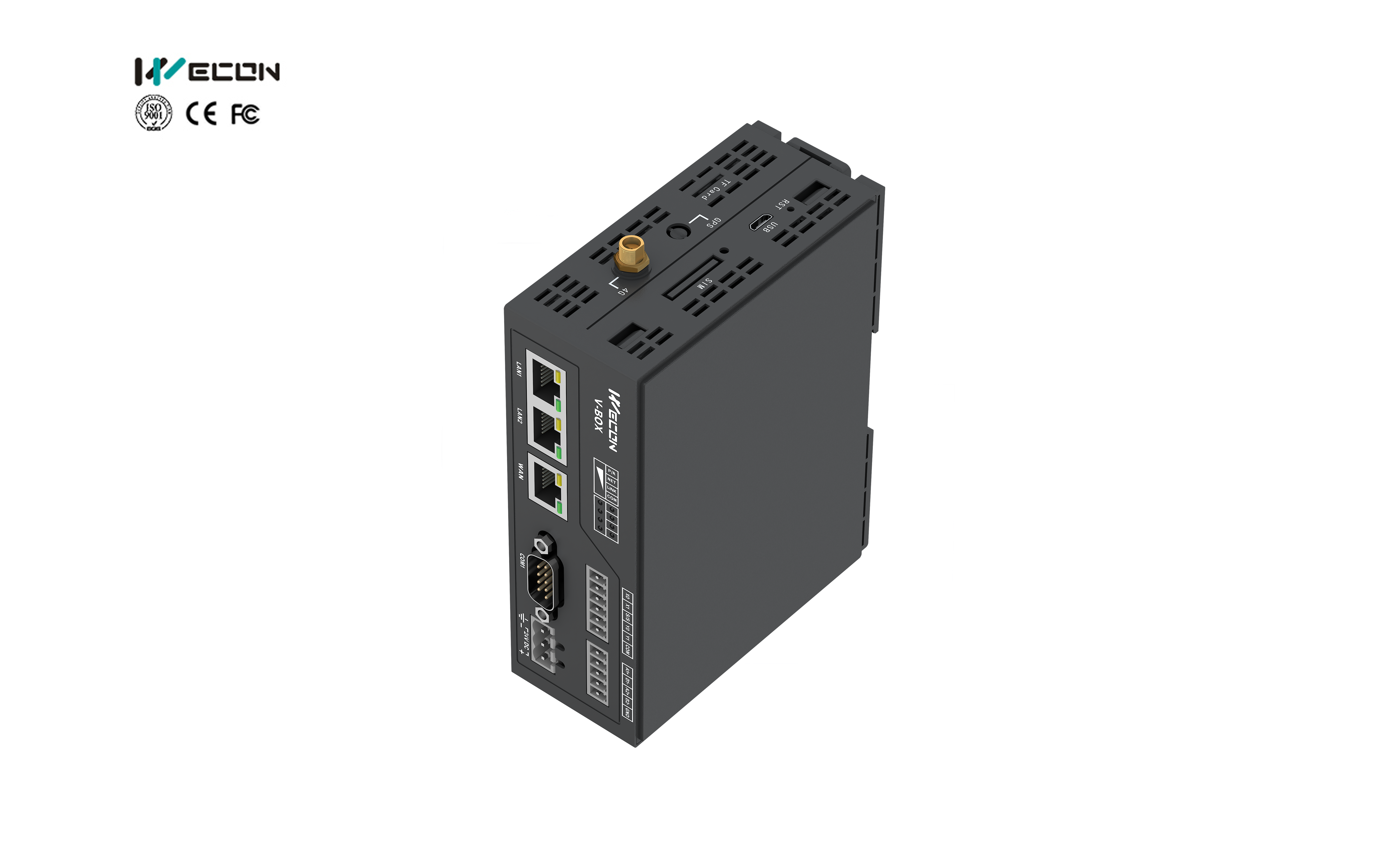

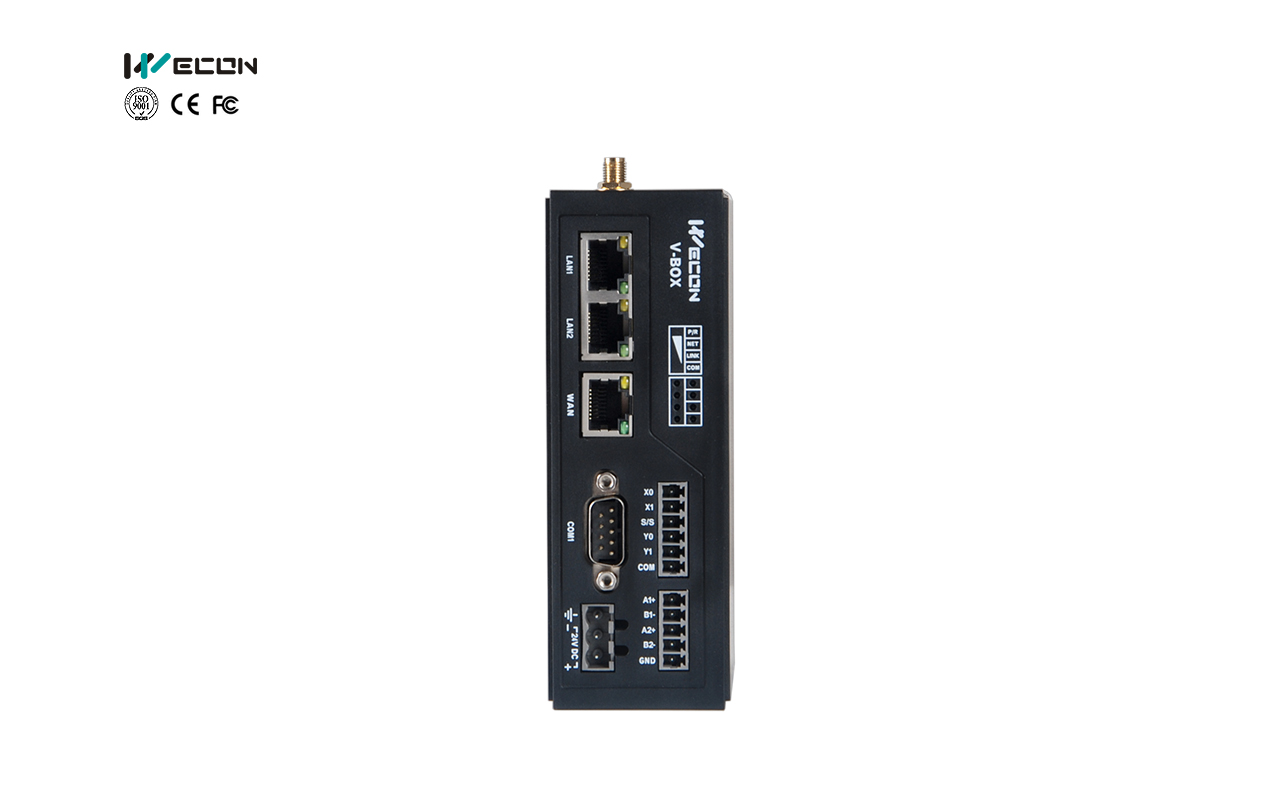

V-BOX H SERIES

Main Features:

V-BOX is a device for use in remote debugging, web scada, API interface, app monitoring.

*Get data via RS-232 / RS-485 / Ethernet communication, offer Modbus RTU / Modbus TCP communication.

*Supports communication protocols of the main brands of PLC, frequency inverters, network analyzers, among others.

*Connects to the cloud platform through Ethernet, Wifi, 4G connectivity.

*Remote monitoring with upload and download option of PLC programming (Wecon).

*Offers WVPN for remote connection to different PLC brands.

*OPC access.

*Development of Scada in the cloud.

*Datalogger and download of data, alarms and history directly to Excel.

*Access available from mobile devices through the V-Box app (Android / IOS)


Software&manual Inquiry
Specification
Physical & Electrical

Model

COM

Ethernet

Monitoring

Alarm

Data Record

Validity

WIFI / 4G

WVPN

Pass-through

Script

V-BOX H-00

4 in 3

3

300

200

50

90 days / 1 millions

N/A

N/A

Yes

V-BOX H-4G

4 in 3

3

500

300

100

180 days / 1 millions

4G

Yes

YES

V-BOX H-AG (global)

4 in 3

3

600

300

100

180 days / 1 millions

4G

Yes

Yes

V-BOX H-SG

4 in 3

3

600

300

100

180 days / 1 millions

4G+GPS

Yes

Yes

V-BOX H-WF

4 in 3

3

300

200

50

90 days / 1 millions

WIFI

Yes

Yes


Items

V-BOX H-00

V-BOX H-4G

V-BOX H-AG

V-BOX H-WF

OS

Linux

CPU

High Performance CPU

Flash

128MB

RAM

DDRIII 128MB

SD Card

N/A

MICRO USB

USB Host/DeviceUSB OTG Switch



Serial Port

COM1RS232, RS485/RS422 (2 in 1)

COM2RS485

COM3RS485

Digital I / O

2 inputs with optocoupler isolation; 2 relay outputs

Ethernet Port

3 Ethernet ports (2*LAN+1*WAN)

WIFI Module

N/A

N/A

N/A

YES

Power Supply

24VDC (12~28VDC)

Power Consumption

<10w

Enclosure

PC+ABS

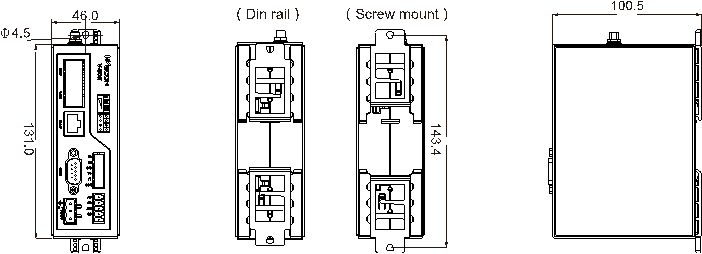

Dimension (W*H*D)

131.0mm*100.5mm*46.0mm

Weight (KG)

0.3

Vibration Resistance

10~25Hz (X, Y, Z direction 2G/30 minutes)

Storage Temperature

-20°C~70°C

Working Temperature

-10°C~60°C

Relative Humidity

10~85% RH (Non-condensing)

CE Certification

CE Marked

FCC Certification

FCC Class A

HTTP Interface

Yes

Remote Update

Yes

Configuration Backup

Yes

Off-line Transmission

Yes

GPS

N/A

LBS

LBS

N/A
