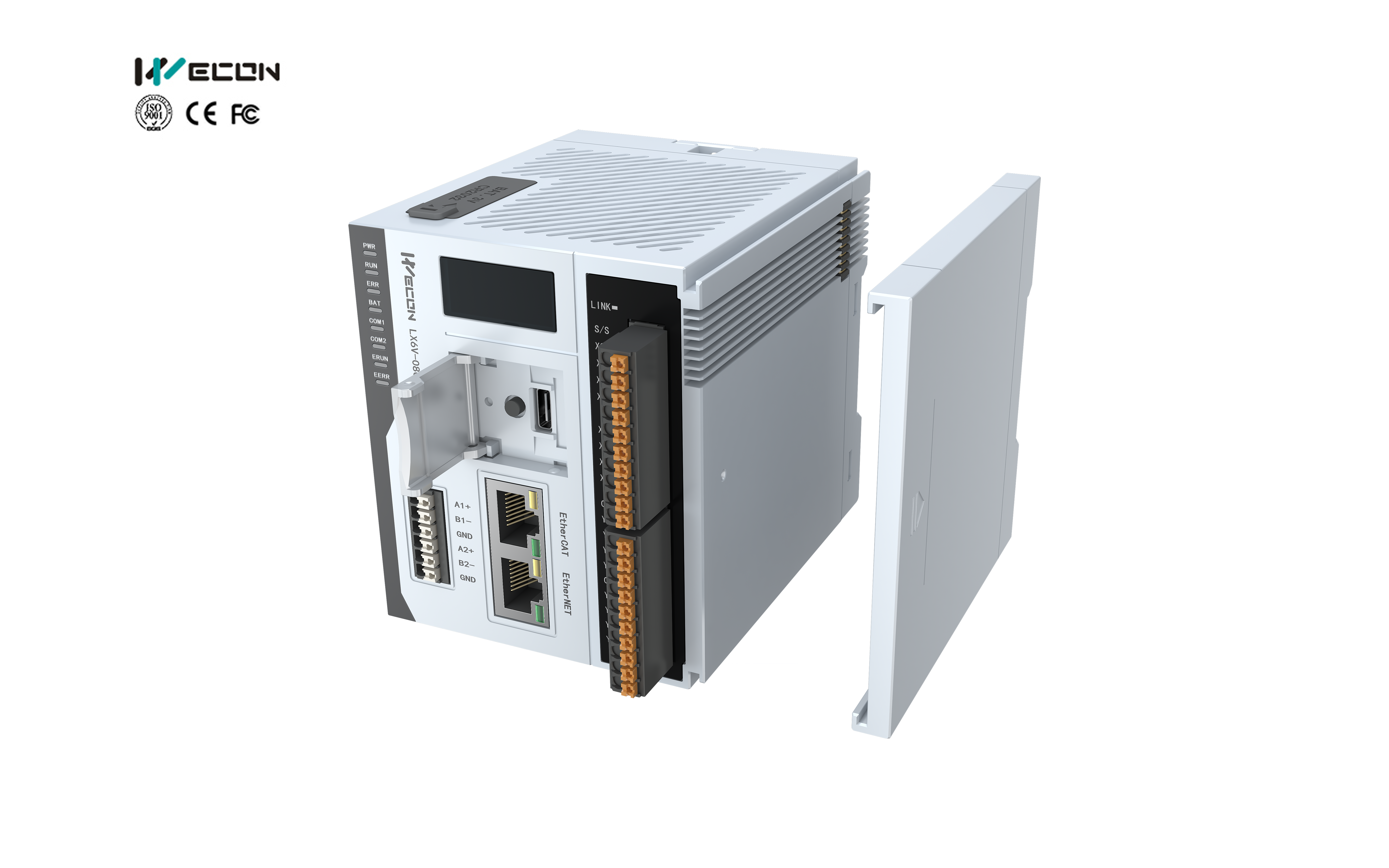

EtherCAT LX6V 0808MT PLC

  • Supports EtherCAT and USB TYPE-C

  • Supports IEC61131-3 LD programming mode, free-tag protocol, faster and more efficient communication

  • 5MB large program capacity

  • 512KB latched capacity

  • 100KB register capacity

  • 5MB free tag capacity


Software&manual Inquiry sales@we-con.com.cn
Introduction
Specification
Physical & Electrical

LX6V PLC(1).jpg

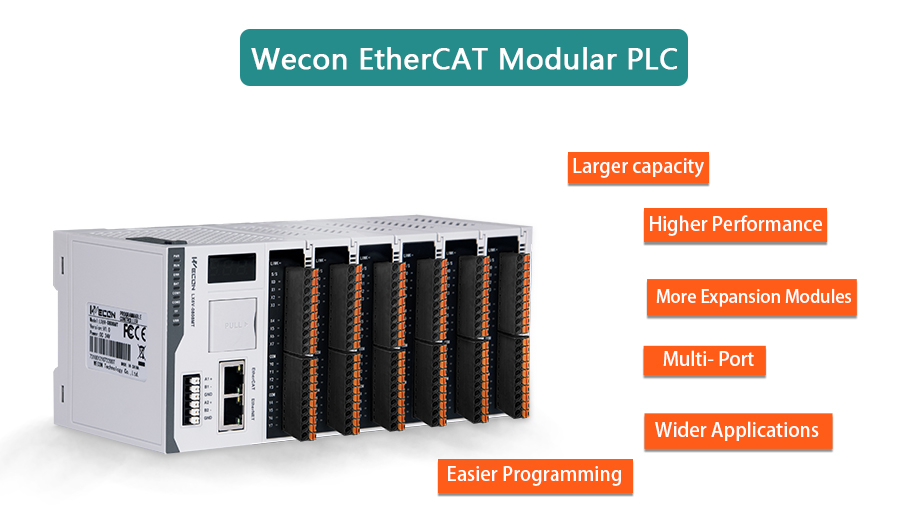

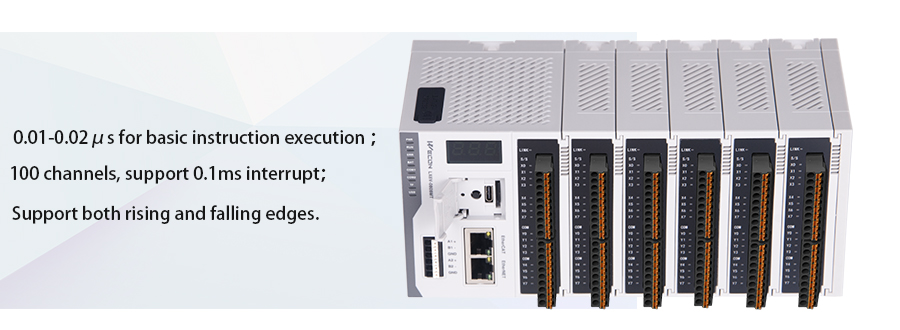

Higher Performance



More Expansion Modules




Larger Capacity

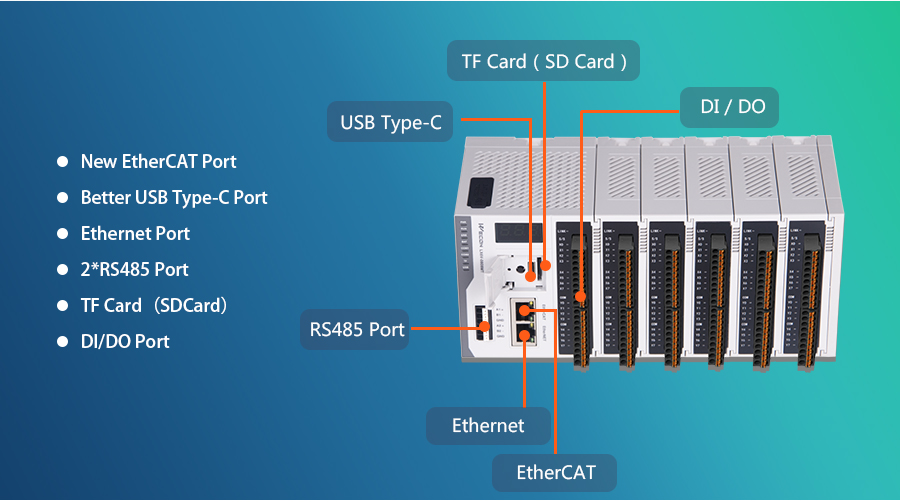

Mutil-Port



Wider EtherCAT Applications

LX6V Series PLC has a newly added EtherCAT port and supports RS485 custom protocol ad Modbus-RTU protocal,widely used in packing machinery, textile machinery, grinding machines, industiral robots, high-rise elevators and other fields.

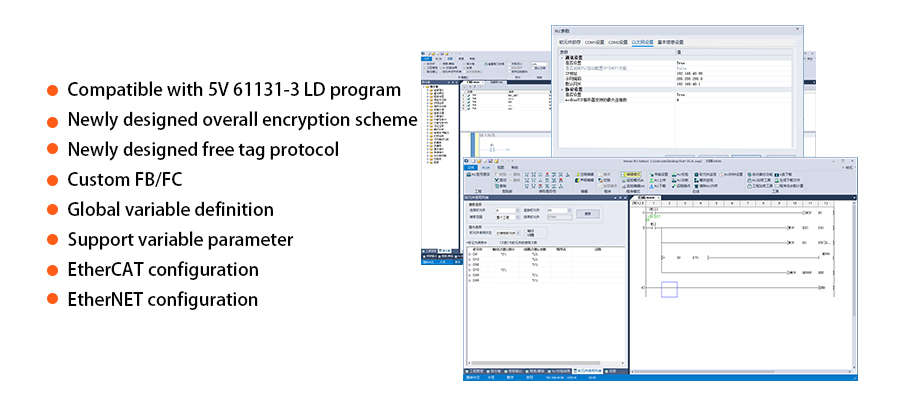

Easier Programming

Wecon LX6V software is compatible with PLC Editor2 of LX5V, which is easy to program.



Product Specifications▼

Item

LX6V-0808MT

Running Mode

Cycle Scan / Interrupt

Programming

Instruction Table / Ladder Diagram / FB / FC

Total Instructions

Basic instruction: 29 / Application instruction: 170

Execution Time

Basic instruction 0.01-0.02μs

System EMMC

5M

Download/ Monitoring

Programming cable (Port)

Ethernet

USB Type-C

High Speed Pulse Output

Transistor type 4 channels / 200KHz

High Speed Counter Interrupt

100 channels

Timer Interrupt

100 channels, supporting 0.1ms interrupt

External Input Interrupt

X0-X7 supports both rising and falling edges

High Speed Input Single Phase

4 channels 150 KHz

High Speed Input AB Phase

4 channels 100K Hz, supporting 2 or 4 frequency multiplication

Power-down Save

Adjusted by software

Filter

For all the input terminals

Serial Port

RS485, RS485

Temperature

Working temperature0 ~ 55

                         Storage temperature-20 ~ 70

Humidity

35~ 85%RHWithout Condensation

Shock Resistance

JISC0040 Standard

Influence Immunity


Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude: 1KVP-P ,

Pulse width 10us

Period 0.3 s

Edge time 5ns

Duration 1min

TF Card

Support

Ethernet

1000M Ethernet

EtherCAT

Up to 128 servo axis


LX6V Model

I/O

Output Type

Pulse

Counter

E-CAM

Pulse Output

RS485

BD Board

Module

Power Supply

Ethernet

EtherCAT

Axis

LX6V-0808MT-DB

08/08

Transistor

4

YES

4

2

N/A

YES

DC

YES

YES

16

LX6V-0808MT-DD

08/08

Transistor

4

YES

4

2

N/A

YES

DC

YES

YES

64

LX6V-0808MT-DE

08/08

Transistor

4

YES

4

2

N/A

YES

DC

YES

YES

128


Item

LX6V-0808MT

Running Mode

Cycle Scan / Interrupt

Programming

Instruction table / ladder diagram / FB / FC

Total Instructions

Basic instruction: 29 / Application instruction: 170

Execute time

Basic instruction 0.01-0.02μs

System EMMC

5M

Download/ Monitoring

Programming cable (Port)

EtherNET

USB TYPE-C

High Speed Pulse Output

Transistor type 4 channels/200KHz

High speed counter interrupt

100 channels

Timer Interrupt

100 channels, support 0.1ms interrupt

External input interrupt

X0-X7 supports both rising and falling edges

High Speed Input Single Phase

4 channels 150 KHz

High Speed Input AB Phase

4 channels 100K Hz, supports 2 or 4 frequency multiplication

Power-down save

Adjusted by software

Filter

For all the input terminals

Serial Port

RS485, RS485

Temperature

Working Temperature0 ~ 55 / Storage Temperature-20 ~ 70

Humidity

35~ 85%RHWithout condensation

Shock Resistance

JISC0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P , pulse width 10us, period 0.3 s, edge time 5ns , duration 1min.

TF

Support

ETHERNET

1000M Ethernet

ETHERCAT

Up to 128 servo axis

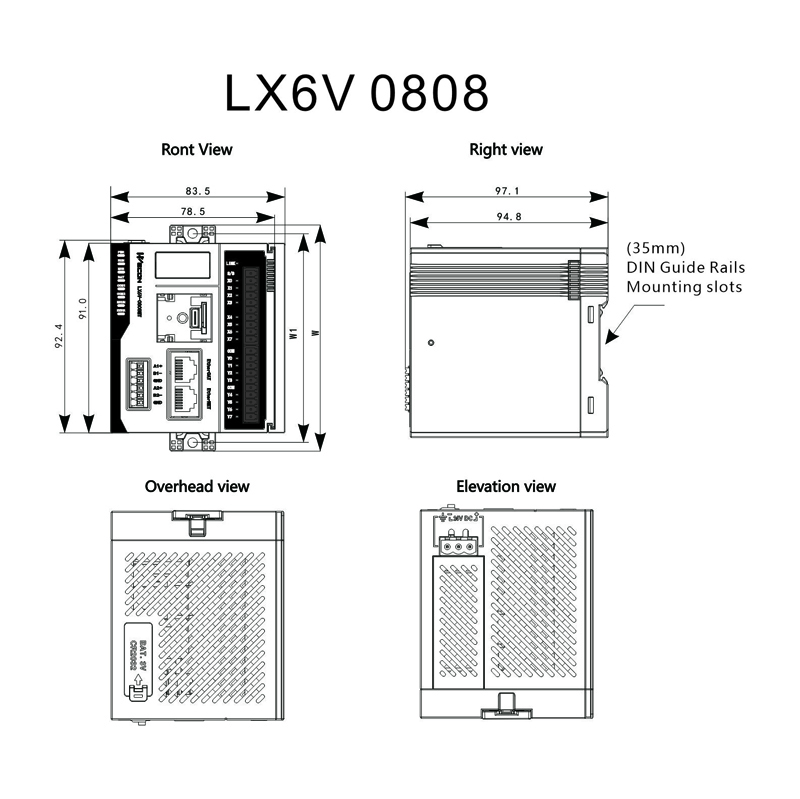

LX6V 安装图.jpg
