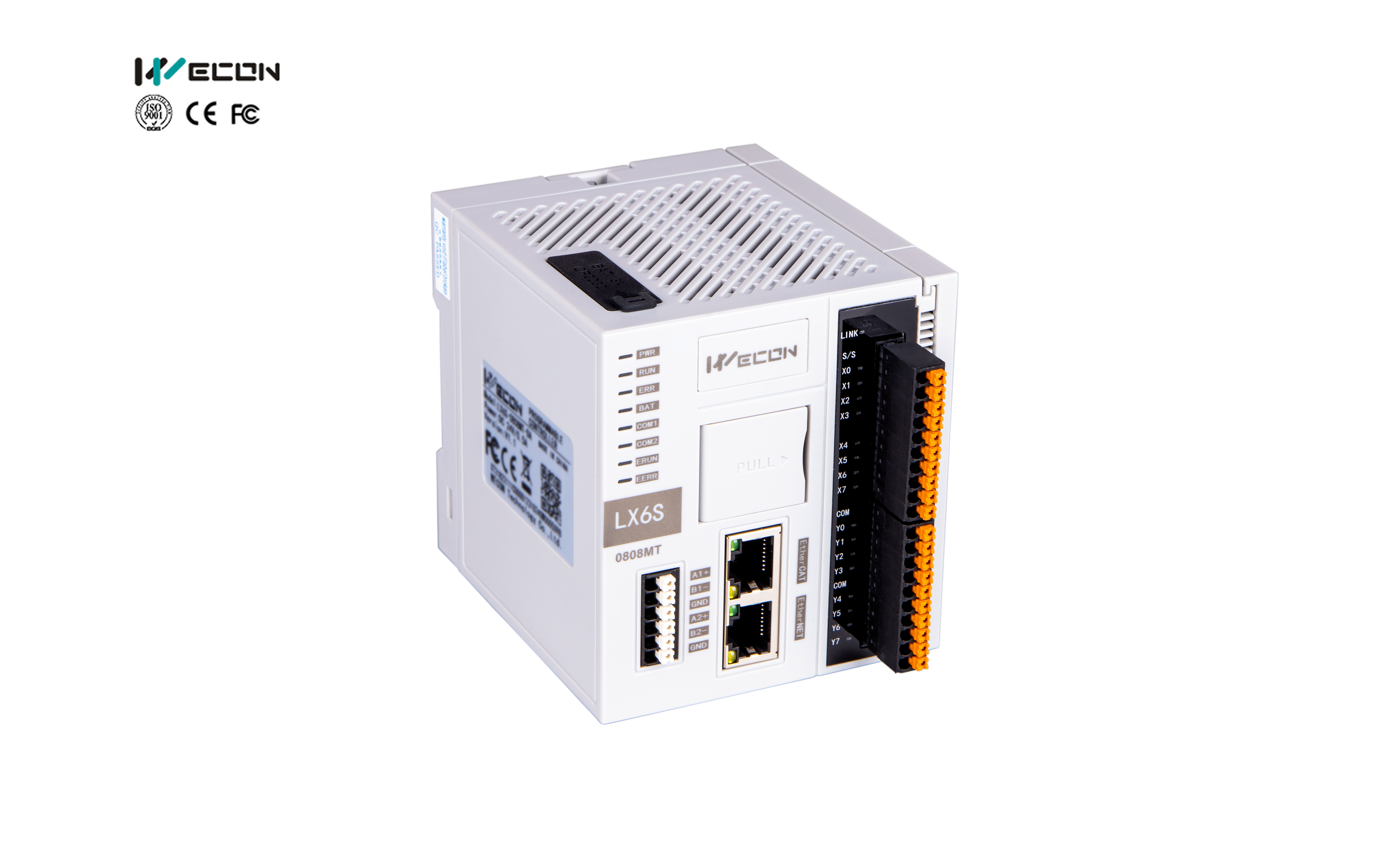

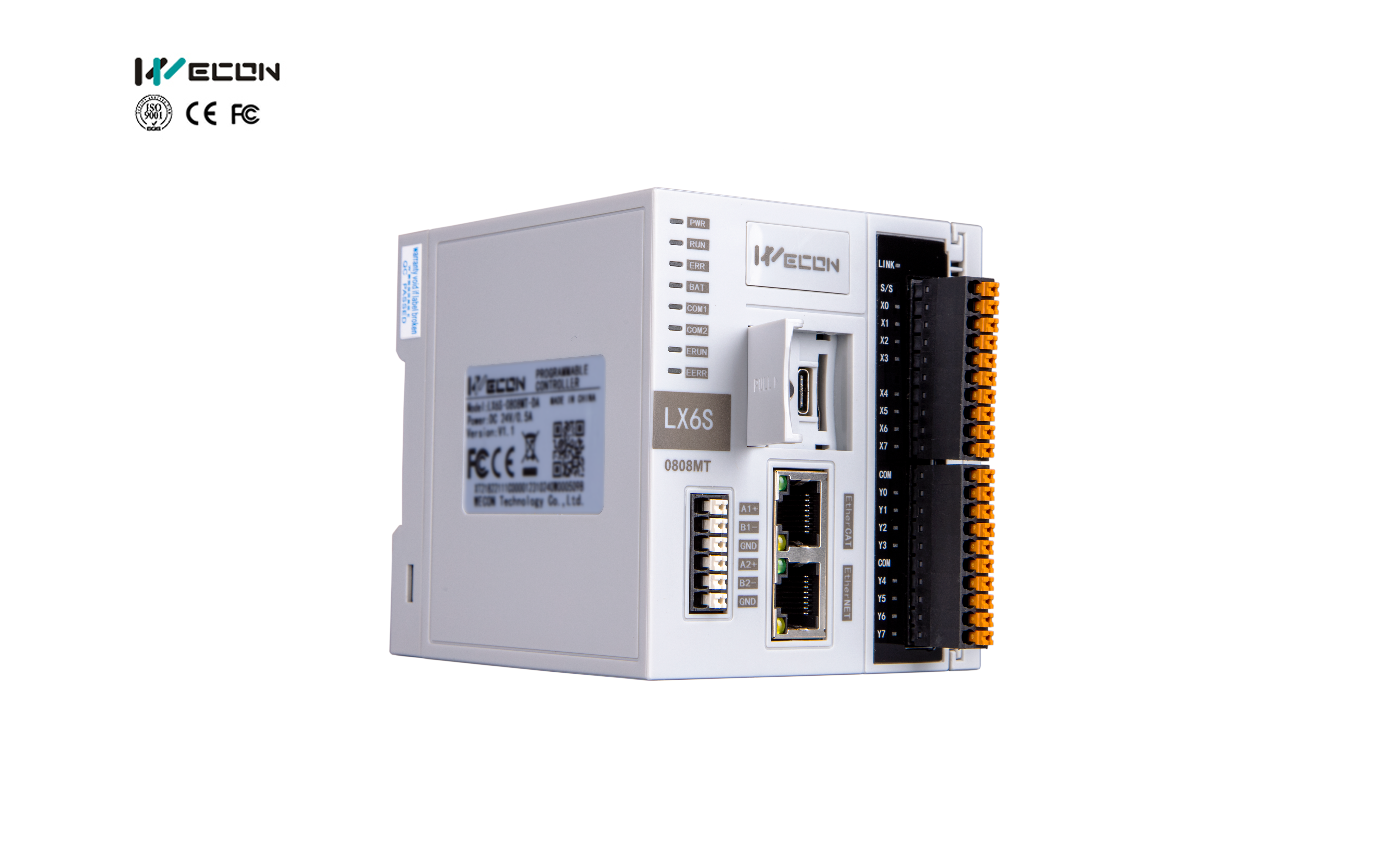

LX6S 0808MT PLC

  • 5MB large program capacity

  • Custom FB/FC

  • EtherCAT configuration

  • EtherNET configuration


Software&manual Inquiry sales@we-con.com.cn
Specification

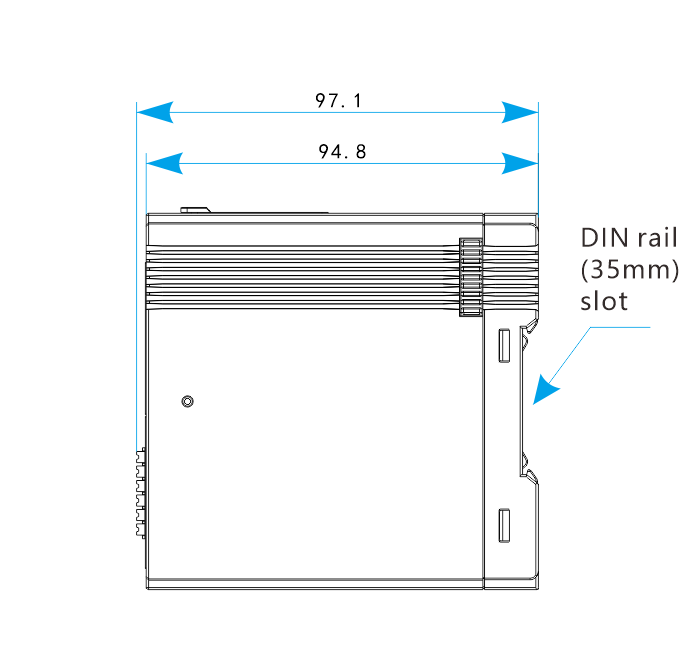

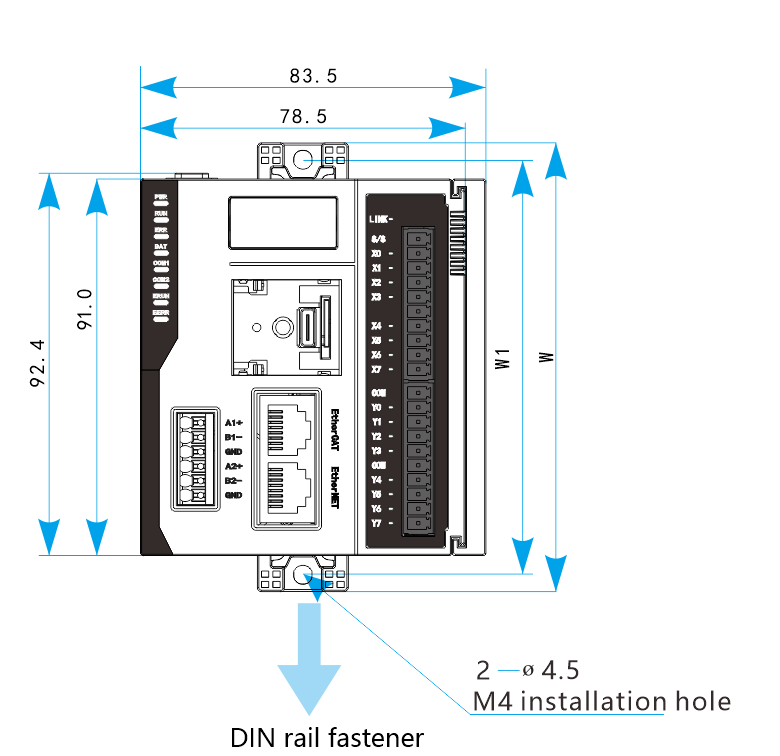

Physical & Electrical


LX6S Model

I/O

Output Type

Pulse

Counter

E-CAM

Pulse Output

RS485

BD Board

Module

Power Supply

Ethernet

EtherCAT

Axis

LX6S-0808MT-DA

08/08

Transistor

4

YES

4

2

N/A

YES

DC

YES

YES

8

LX6S-0808MT-DB

08/08

Transistor

4

YES

4

2

N/A

YES

DC

YES

YES

16


GENERAL

Item

LX6S-0808MT

Running Mode

Cycle Scan / Interrupt

Programming

Instruction List / Ladder Diagram / FB / FC

Total Instructions

Basic instruction: 29 / Application instruction: 170

Execute Time

Basic instruction 0.01-0.02μs

System EMMC

5M

Download/ Monitoring

Programming cable (Port)

Ethernet

USB Type-C

High Speed Pulse Output

Transistor type, 4 channels / 200kHz

High Speed Counter Interrupt

100 channels

Timer Interrupt

100 channels, supporting 0.1ms interrupt

External Input Interrupt

X0-X7 supporting both rising and falling edges

High Speed Input Single Phase

4 channels 200kHz

High Speed Input AB Phase

4 channels 150kHz, supports 2 or 4 frequency multiplication

Power-down Save

Adjusted by software

Filter

For all the input terminals

Serial Port

COM1: RS485, COM2: RS485

Temperature

Working Temperature0 to 55 / Storage Temperature0 to 70

Humidity

35 to 85%RHWithout condensation

Shock Resistance

JISC0040 Standard

Influence Immunity

Meet the IEC61000-4-4 and GB/T 17626.4 standard:

Noise voltage amplitude 1KVP-P,

Pulse width 10us,

Period 0.3s,

Edge time 5ns,

Duration 1min.

TF Card

Support

Ethernet

Hundred Megabit Ethernet

EtherCAT

8/16 Servo axes
