Main Features:
V-BOX is a device for use in remote debugging, web scada, API interface, app monitoring.
*Get data via RS-232 / RS-485 / Ethernet communication, offer Modbus RTU / Modbus TCP communication.
*Supports communication protocols of the main brands of PLC, frequency inverters, network analyzers, among others.
*Connects to the cloud platform through Ethernet, 4G connectivity.
*Access available from mobile devices through the V-Box app (Android / IOS)
*Support PIStudio Software
Model | COM | Ethernet | Monitoring | Alarm | Data Record | Validity | WIFI / 4G | WVPN Pass-through | Script |
V-BOX RE-00 | 2 in 1 | 1 | 100 | 20 | 50 | 60 days /100 millions | N/A | YES | YES |
V-BOX RE-4G | 2 in 1 | 1 | 100 | 20 | 50 | 60 days /100 millions | 4G | YES | YES |
Items | V-BOX RE-00 | V-BOX RE-4G |
OS | Linux | |
CPU | High Performace CPU | |
Flash | 128MB | |
RAM | DDRIII 64MB | |
SD Card | N/A | |
USB | OTG USB / Device USB | |
Serial Port | COM1: RS232, RS422 / RS485 (2 in 1) | |
Ethernet Port | 1 Ethernet port | |
WIFI | N/A | |
Power Supply | 24VDC (12~28VDC) | |
Power Consumption | <10W | |
Enclosure | Metal shell | |

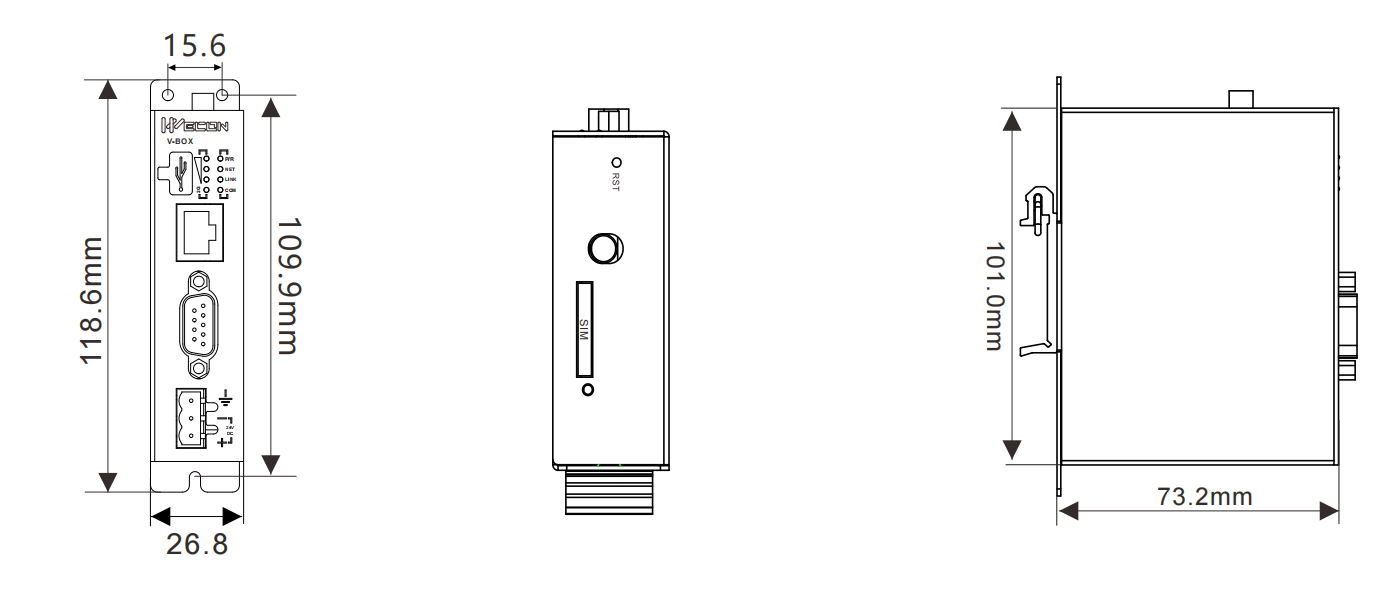

Dimension(W*H*D) | 101.0mm*73.2mm*26.8mm | |
Mounting Size | 110.0mm*15.6mm | |
Weight (KG) | 0.26 | |
Storage Temperature | -20°C~70°C | |
Working Temperature | -10°C~60°C | |
Relative Humidity | 10~90% RH (Non-condensing) | |
CE Certification | CE marked | |
FCC Certification | FCC Class A | |
Programming | PIStudio | |
GPS | N/A | LBS |
Big Screen Monitoring | YES | |
