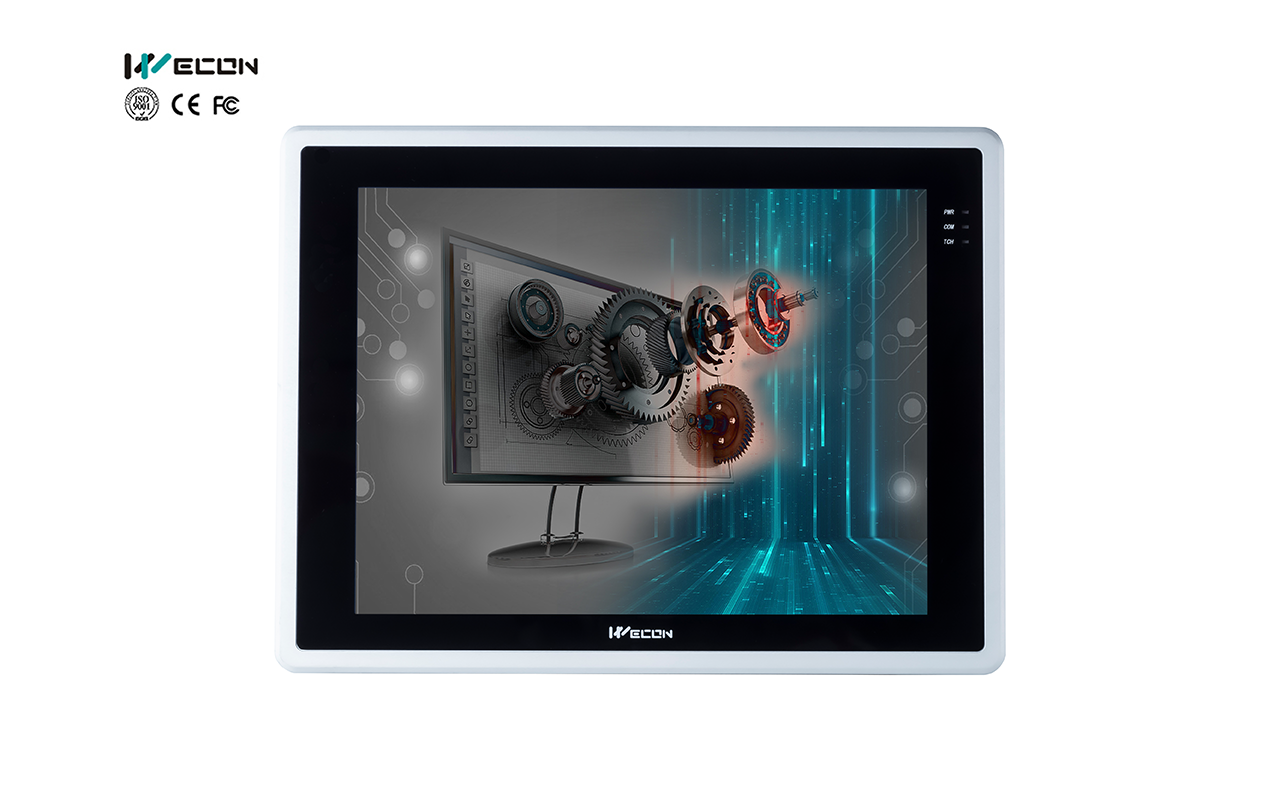

uMotherboard specifications: Quad core high performance CPU comes with a 4G Flash/512M RAM memory.
uDisplay: 12 inch; Resolution: 1024*768
uInterfaces: COM1: RS232, RS422/RS485, RS485; Ethernet port.
uDownload methods: USB download cable, USB flash drive download, LAN download, remote download.
Model | V-Net Functions | MQTT | Lua Script | LAN Monitoring | 4G / WIFI | |||||||
Realtime Data | Alarm Data | History Data | APP & Remote Control | Remote Update HMI | WVPN | Cloud SCADA | Pass-through | |||||
PI8121ig(N) | 300 | 200 | 100 | √ | √ | √ | √ | Serial | √ | √ | √ | X |
PI8121ig(NWG) | 300 | 200 | 100 | √ | √ | √ | √ | Serial | √ | √ | √ | Both |
SPECIFICATIONS
Main | Processor | High Performance CPU |
Display | Size | 12" |
Screen | TFT | |
Resolution | 1024*768 | |
Brightness (cd/m2) | 500 | |
Backlight | LED | |
Backlight Lifetime | 50,000 hours | |
Touch Panel | High precision four-wire resistive | |
Storage | Memory | 512 MB |
Flash | 4 GB | |
SD Card Slot | YES(TF) | |
USB Port | USB2.0 Host + USB2.0 Client | |
RTC | Real-time clock | Yes |
Calendar | Yes | |
I/O Port | COM1 | CN1:RS422/RS485 CN2:RS232 CN3:RS485 |
COM2 | -- | |
COM3 | -- | |
Ethernet | 10/100 bASE-T X2 | |
CANopen | -- | |
Power | Rated Power | < 18W |
Power Voltage | DC 24V | |
Input range | DC 12 ~ 28V | |
Shell Color | Silvery | |
Enclosure | Shell Material | Aluminum+Metal+ABS(Polycarbonate) |

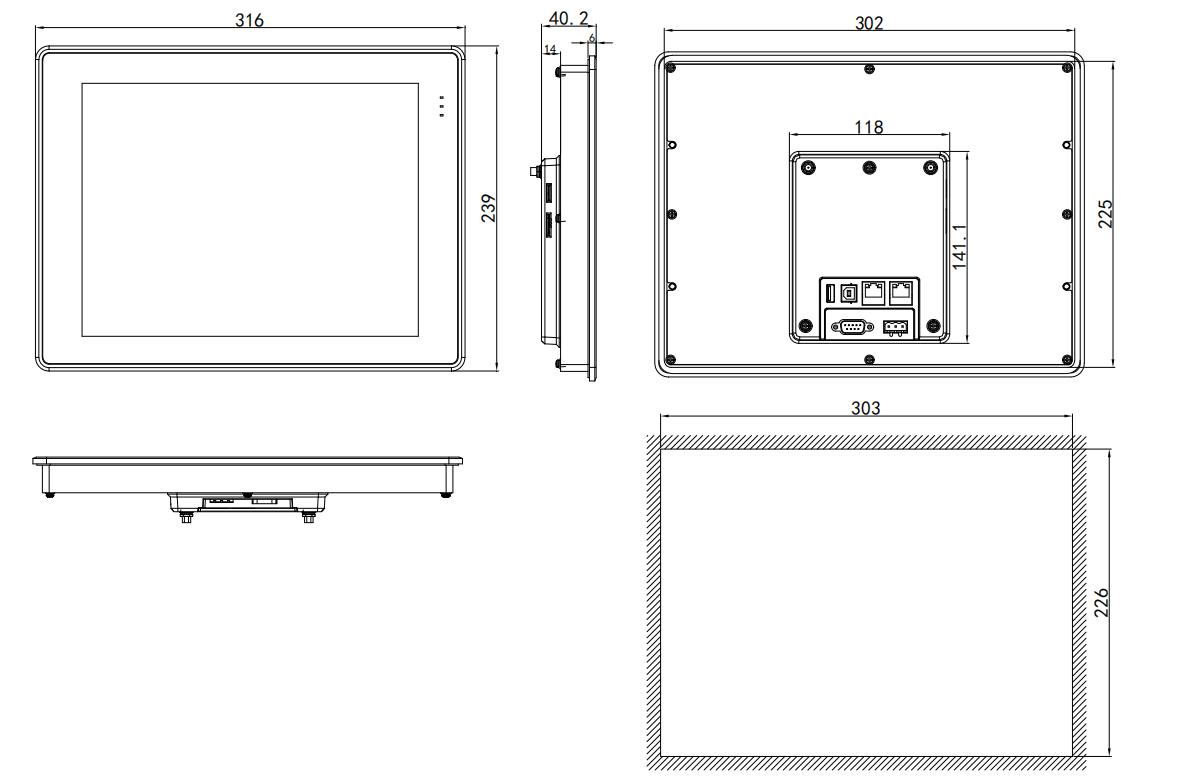

Overall Size (mm) | 316.0W*239.0H*40.2D | |
Mounting Size (mm) | 303.0W*226.0H | |
Mounting Method | Panel Mount | |
Environment | Working Temperature | -10 ~ 55°C |
Storage Temperature | -20 ~ 70°C | |
Humidity | 10 ~ 90％RH (Non-condensing) | |
Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | |
Cooling | Air Cooling | |
Software | Programming | PI Studio |
Remote Access | YES | |
Email Alarm | YES | |
IP Camera | -- | |
Audio Output | -- | |
Video Player | -- | |
Data Tool | -- | |
Certificates | IP Code | IP65 (Front panel) |
CE | CE Marked | |
FCC | FCC Class A |
