uMotherboard specifications: Quad core high performance CPU.
uDisplay: 21.5 inchese, 1920*1080 Resolution.
uCapacitive touch screen.
uConnecting with RH V-BOX for touch function.
Item | Parameter | |
CPU | Quad-core high-performance processor | |
Touch screen | Capacitive type | |
Display | Monitor | 21.5 inches |
Resolution | 1920*1080 | |
Brightness | 250 cd/㎡ | |
Ethernet | N/A | |
Power Supply Specifications | Input power | AC 100-240V 50/60 HZ |
Power consumption | 30W | |
Structural specifications | Shell material | Frame: Aluminum alloy sections, rounding curved frame, silver painting process |

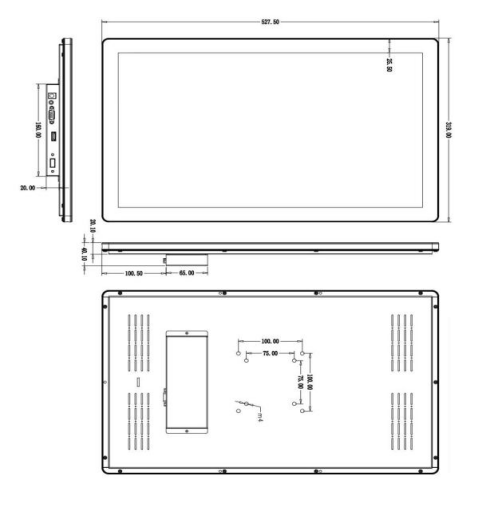

Overall dimensions (W*H*D) | 527.5x319.0x40.1mm | |
Installation dimensions(W*H*D) | Wall mounting, 75.0*75.0 mm or 100.0*100.0mm fixing hole | |
Weight | 6.5kg | |
Storage temperature | -40℃~85℃ | |
Environment temperature | -20℃~60℃ | |
Storage environment humidity | 10%~95%RH | |
Environment humidity | 10%~90%RH | |
HDMI Input | 1, support 1080P Input | |
USB HOST | 1 | |
