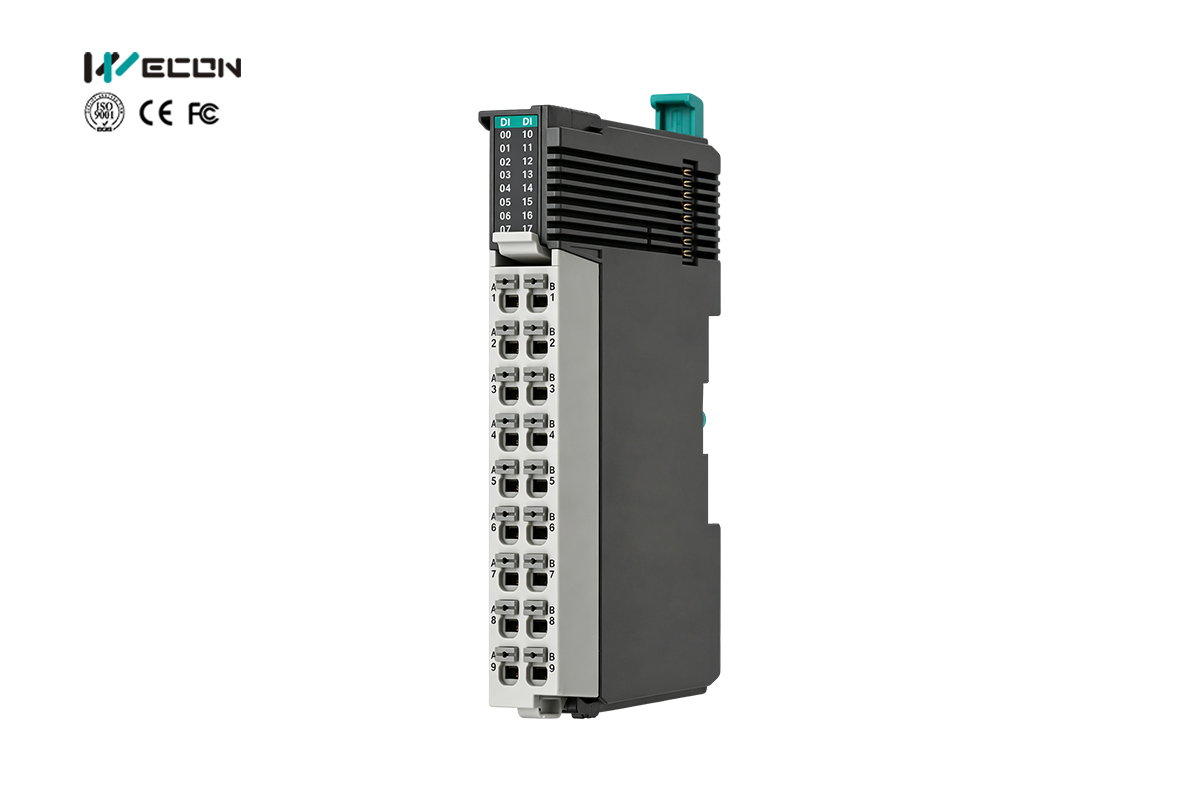

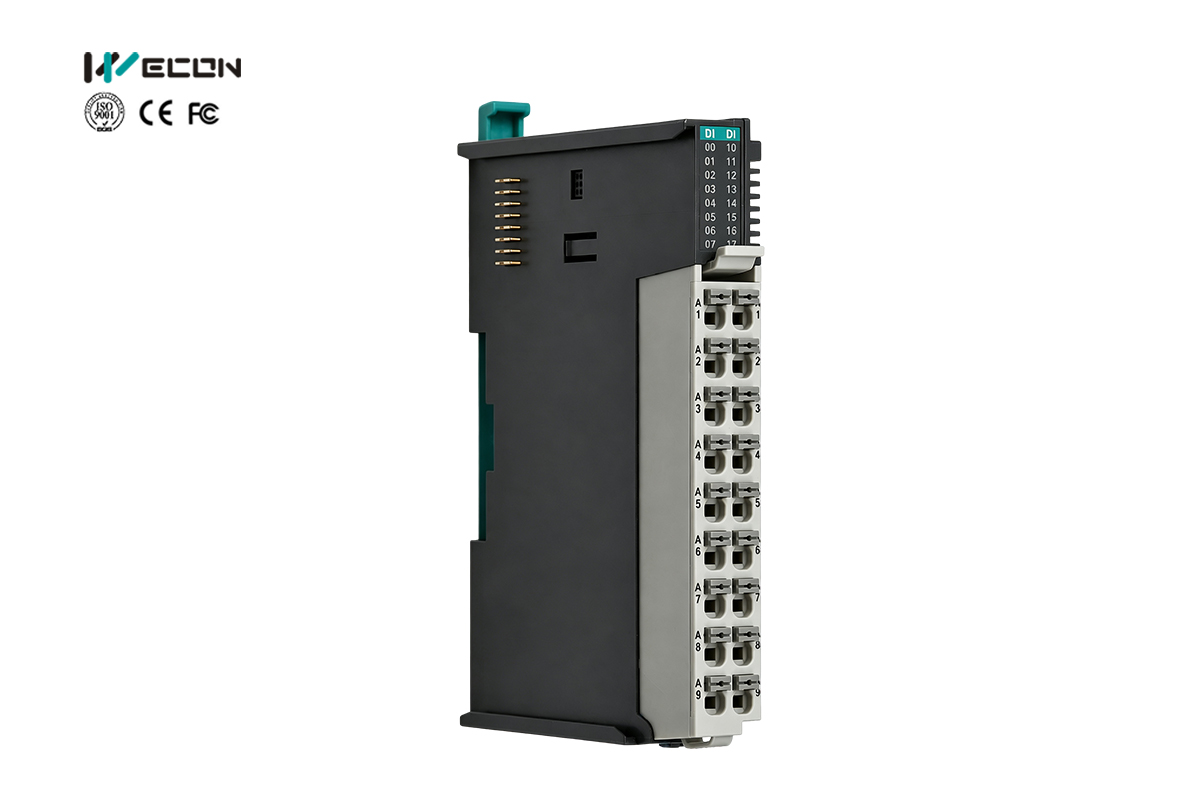

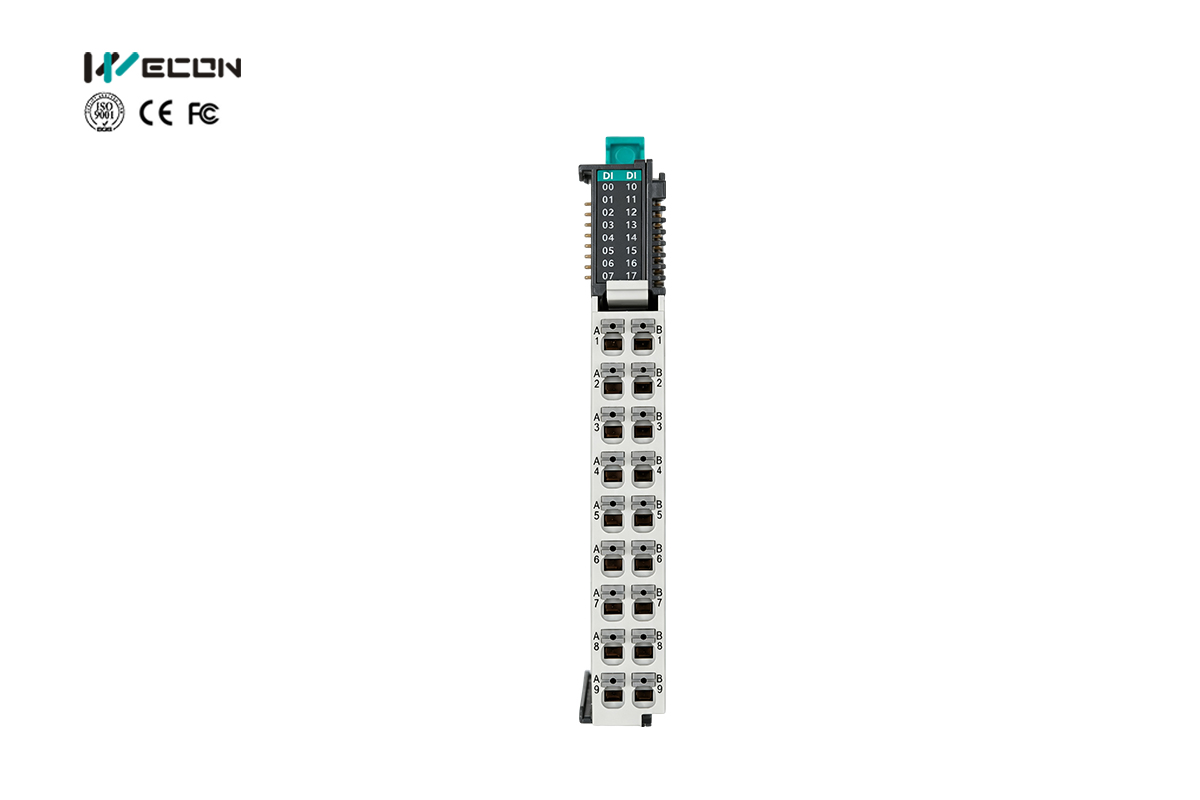

AE30 DIGITAL INPUT OUTPUT MODULE
Naming

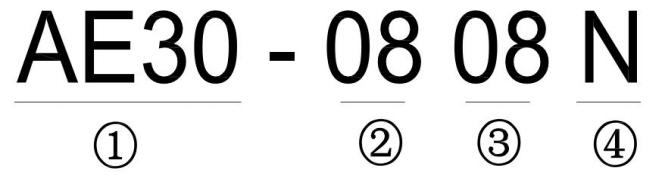

① : Model series
② : Input channel
③ : Output channel
④ : N:NPN output, P:PNP output
Model | Channels | Functionality | Description |
AE30-0808N | 16 | 8 inputs, 8 transistor outputs | 8 channels switch input and 8 channels transistor output. Input supports NPN or PNP, output supports NPN. |
AE30-1600 | 16 | 16 inputs | 16 channels switch input, input supports NPN or PNP. |
AE30-0016N | 16 | 16 transistor outputs | 16 channels transistor output, output supports NPN. |
Specification
Item | Digital Input | |
Input Circuit Composition |
|
NPN wiring: S/S connect to 24V PNP wiring: S/S connect to 0V |
Input Signal Voltage | DC±24V ±10% | |
Input Signal Current | 3.4mA/DC24V | |
Input ON Current | Above 2.7mA | |
Input OFF Current | Below 1.5mA | |
Input Response Time | About 0.2ms | |
Input Signal Form | Contact input: supports NPN and PNP input | |
Circuit Insulation | Integrated chip capacitor isolation | |
Action Display | LED lights up when receiving input signal | |
Item | Transistor Output | |
Output Circuit Composition |
| |
External Power Supply | DC 5 to 30V | |
Circuit Insulation | Integrated chip capacitor isolation | |
Action Display | LED lights is on when running | |
Maximum Load | Resistance Load | 16 IO module: 0.4A per point, 3.2A per module |
Inductive Load | 16 IO module: 9.6W per point, 24W per module | |
Lamp Load | 16 IO module: 0.9W per point, 1.8W per module | |
Open Circuit Leakage Current | Below 0.1 μA / DC24V | |
Minimum Load | - | |
Response Time | OFF→ON | About 0.2ms |
ON→OFF | About 0.2ms | |

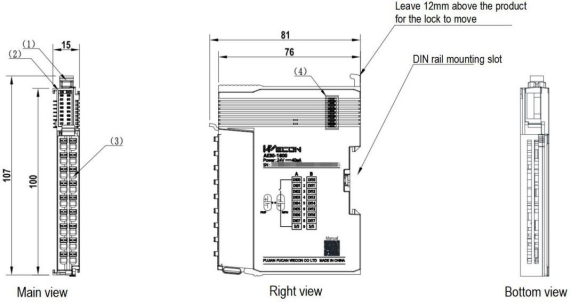

(1) DIN rail clip; (2) IO indicator; (3) IO terminal; (4) Right extension module
