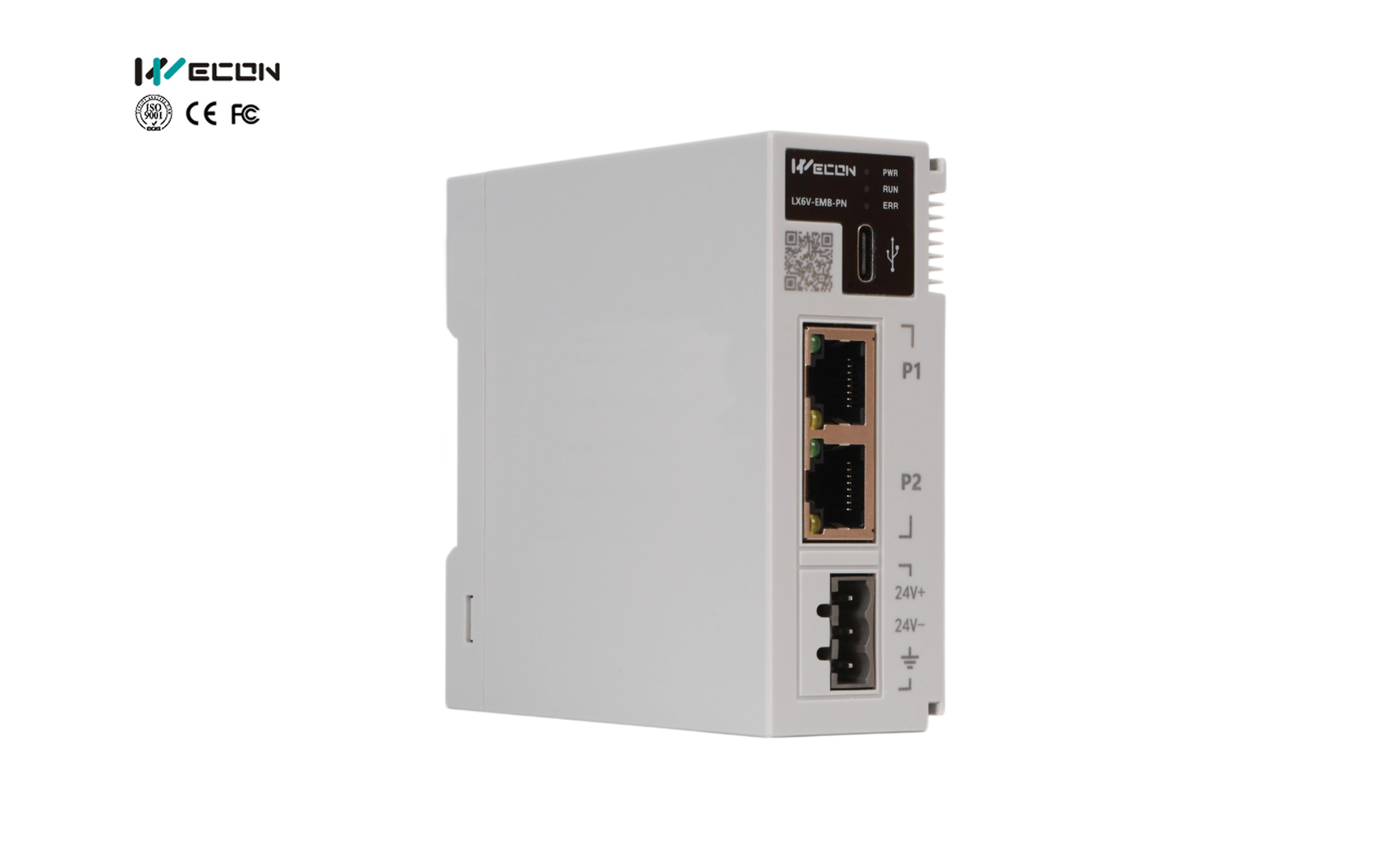

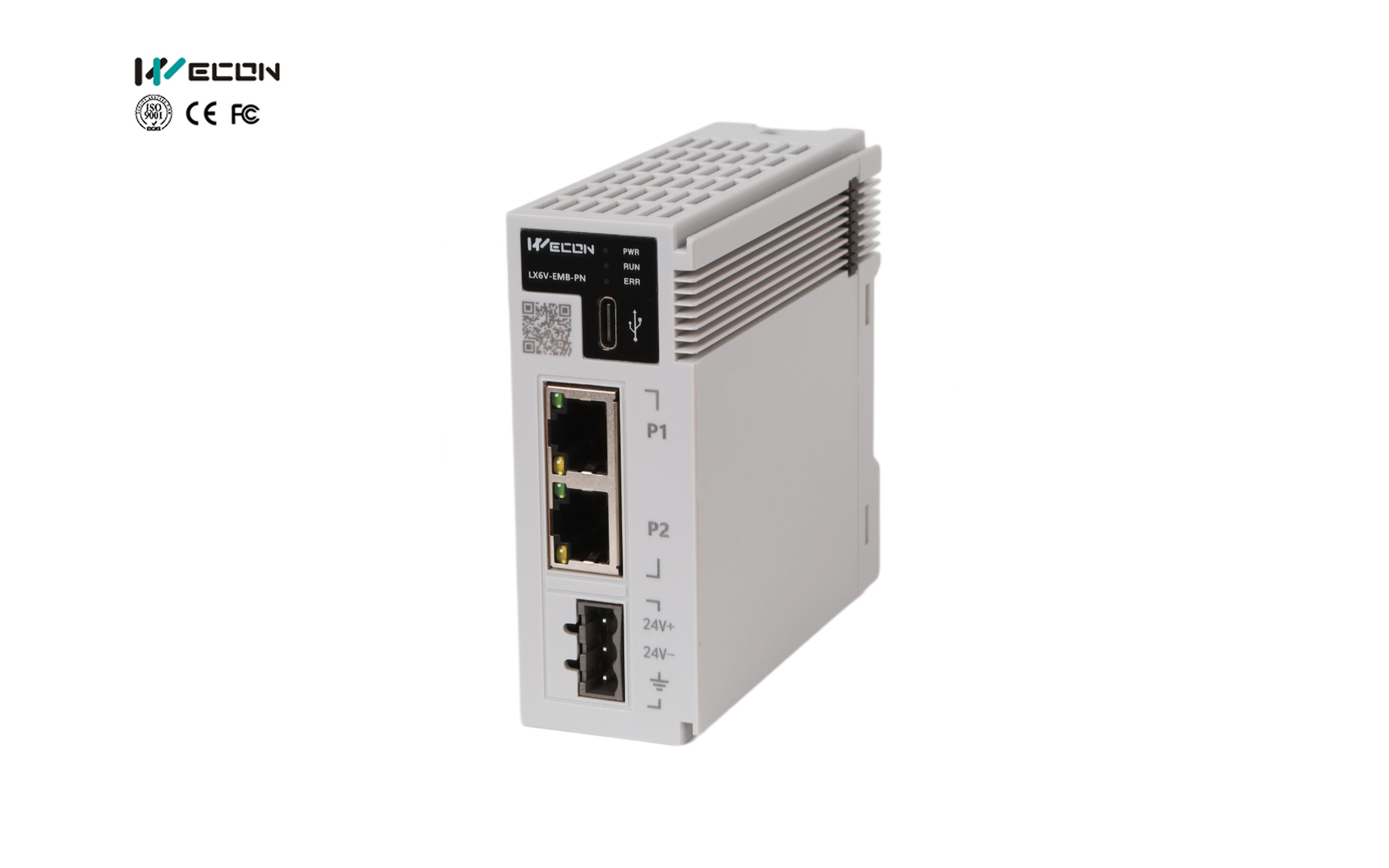

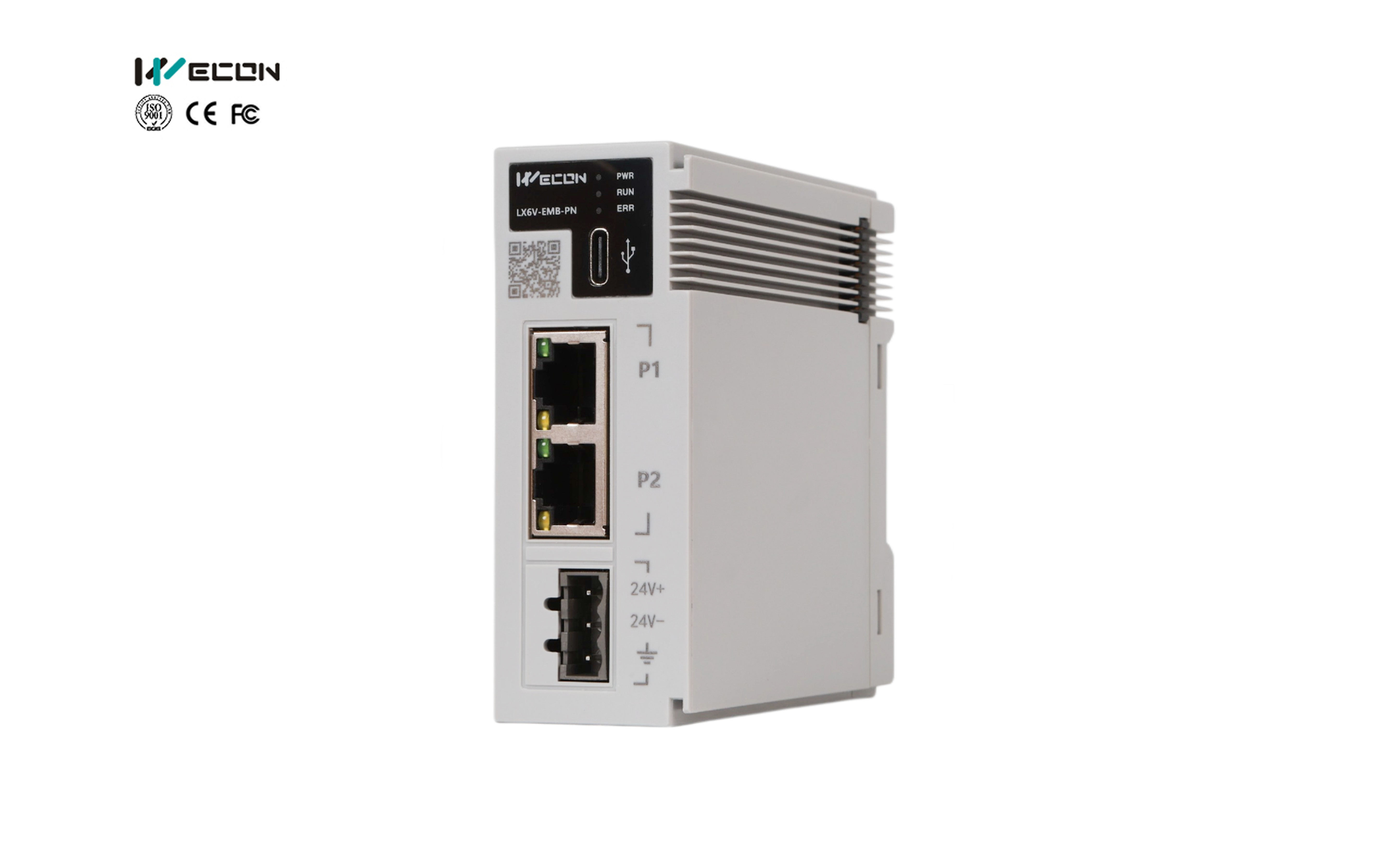

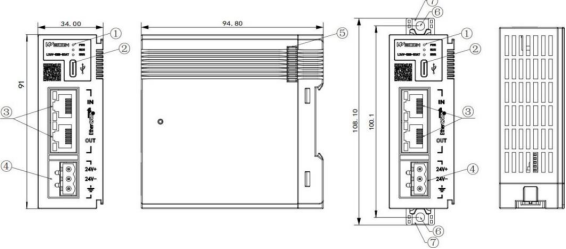

LX6V-EMB-PN Profinet Coupler Module
1.1 Naming
LX6V | EMB | PN |
Series | Model type EMB: Support 16 extension modules EMC: Support 32 extension modules Note: Total power of modules≤48W |
Protocol: Profinet |
1.2 Module Supported Table
Coupler Model | Extension Module Supported | Coupler Version |
LX6V-EMB-PN LX6V-EMC-PN | LX6V-0808EXY |
V1.0.0 |
LX6V-16EX | ||
LX6V-16EY | ||
LX6V-1616EXY | ||
LX6V-32EX LX6V-32EY | ||
LX6V-4AD | ||
LX6V-4DA | ||
LX6V-4PT | ||
LX6V-4TC |
3.1 Parameter
Item | Specifications | |
Model | LX6V-EMB-PN | LX6V-EMC-PN |
Module supported | 16 | 32 |
Power supply | DC 24V±10%, 100mA (Without expansion modules) | |
Communication interface | RJ45x2, 10Mbps (Standard Ethernet)、 100Mbps （Profinet） | |
Communication method | Full Duplex , RT mode | |
PDO data | Up to 1440 byte | |
PDO data | Up to 1440 byte | |
Minimum communication cycle | 1ms | |
I&M data | I&M0 to I&M3 | |
Profinet version | V2.43 | |
Profinet switch | Support | |
Standard Ethernet protocol | TCP/IP, SNMP, LLDP | |
Alarm and debugging | Support update error information to PLC | |
Topology | Support linear , star, tree, etc. | |
Transmission distance | The distance between two nodes should be ≤100m | |
Transmission medium | Category 5e and above | |
Priority start | Support | |
MRP | Support | |
Port Disabling | Support | |
Coupler factory reset | Support | |
Module factory reset | No support | |
Coupler firmware upgrade | Support | |
