4-channel PT100 input module
4-channel K/J type input module
8-channel K/J type input module
Model | Description |

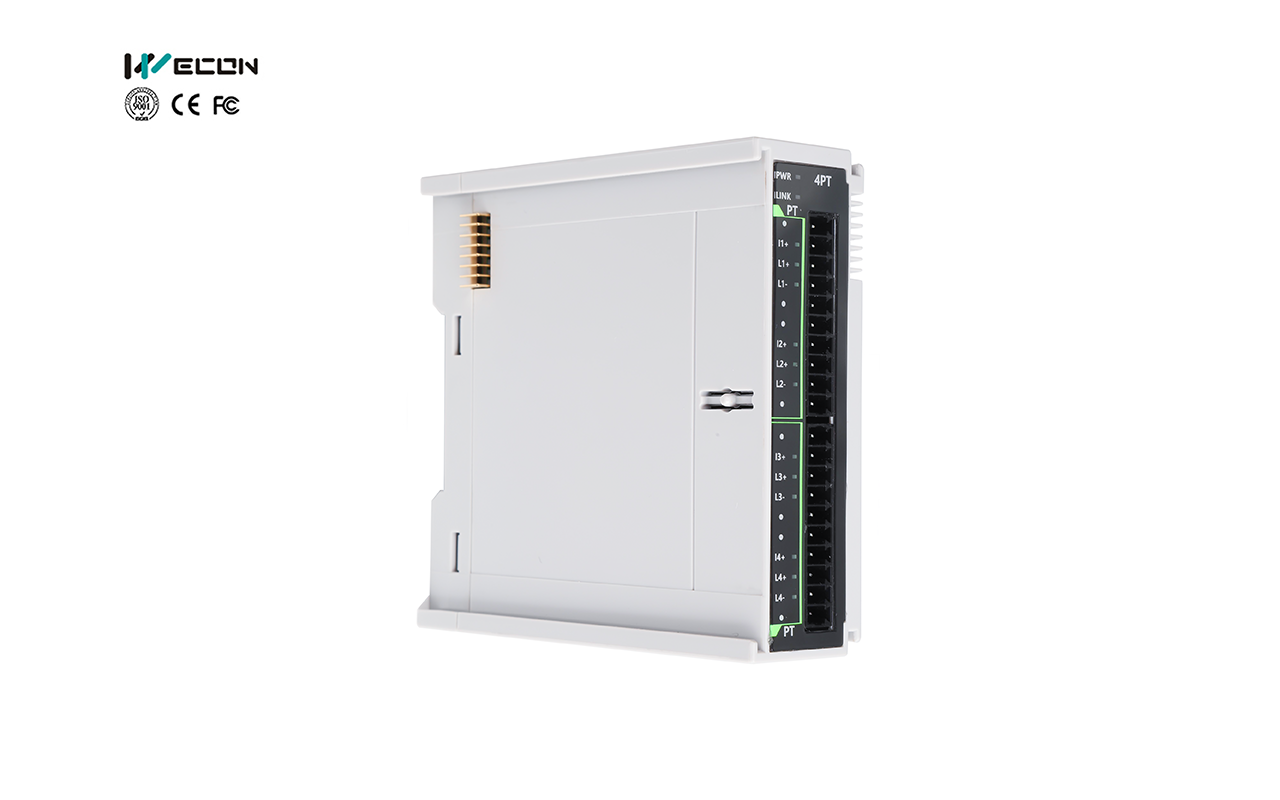

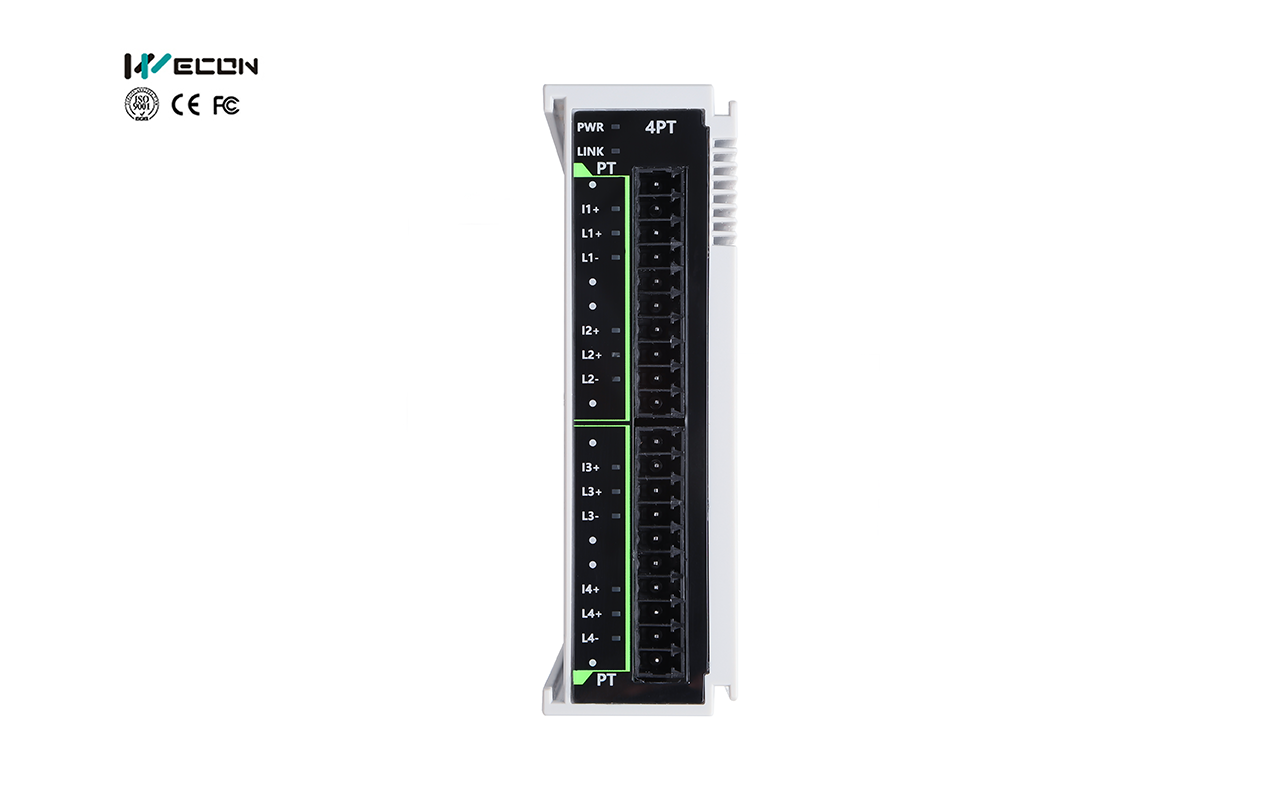

LX6V-4PT | 4-channel PT100 input module |

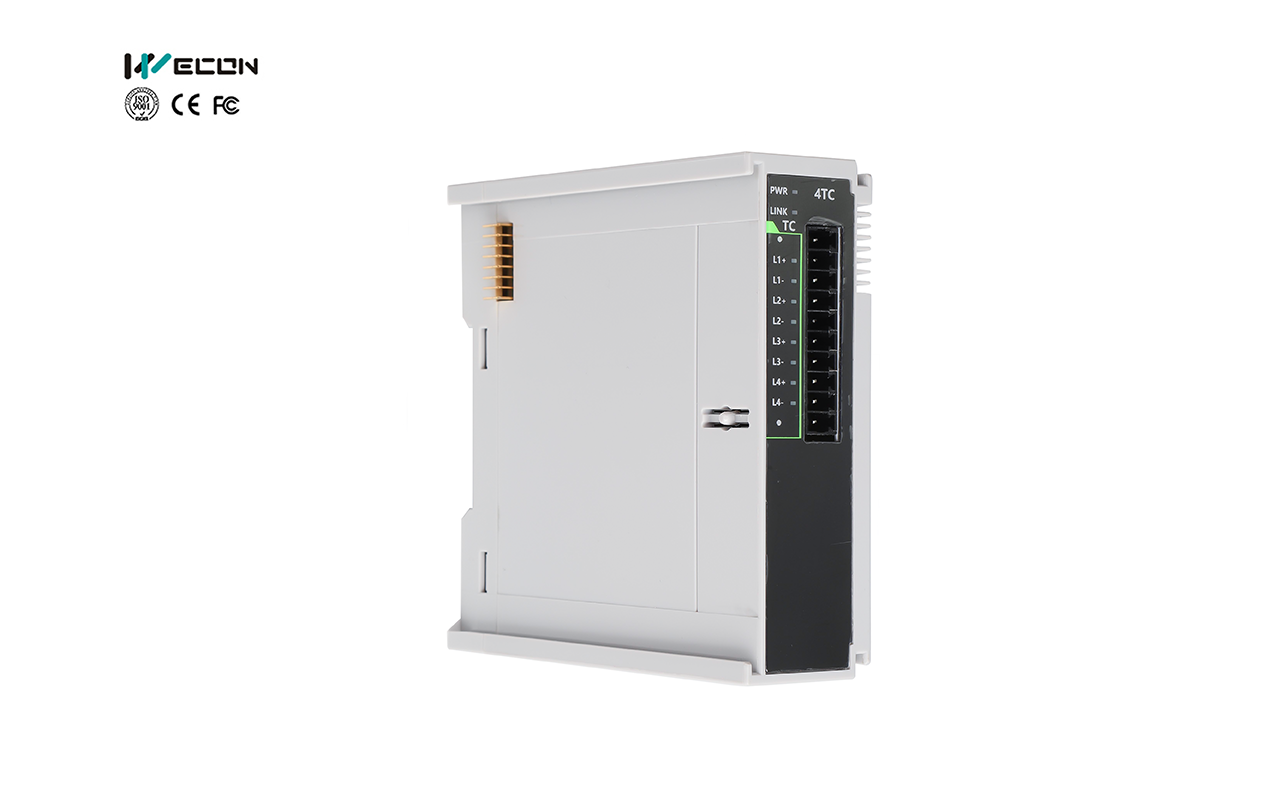

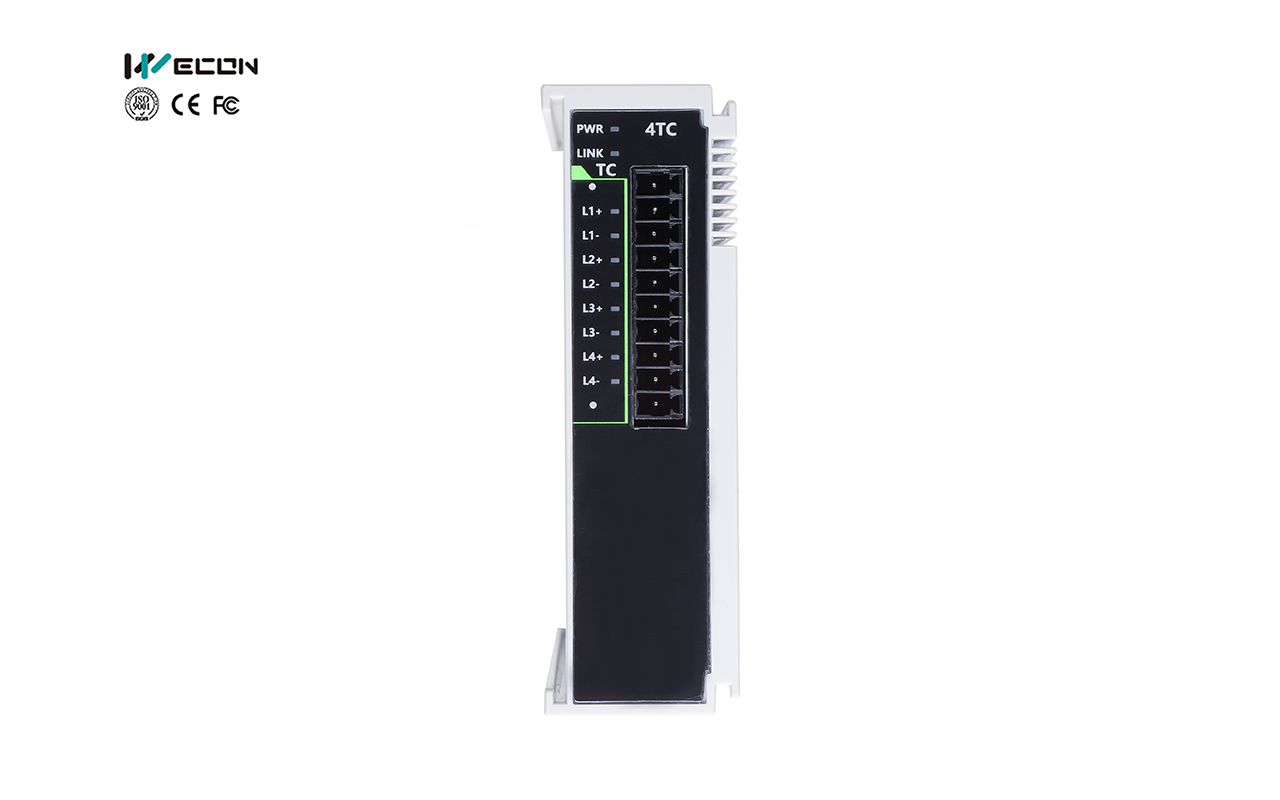

LX6V-4TC | 4-channel K/J type input module |
LX6V-8TC | 8-channel K/J type input module |
Specification
Module | LX6V-4PT | LX6V-4TC | LX6V-8TC |
Description | 4-channel thermal resistor temperature module | 4-channel thermocouple temperature module | 8-channel thermocouple temperature module |
Sensor Type | PT100 | K/J type | |
Wiring | Two/three wire system | —— | |
Isolation | —— | Inter-channel isolation | |
Compensation | —— | Internal cold junction compensation | |
Resolution | 16-bit | ||
Display Sensitivity | 0.1℃ | ||
Accuracy | 0.2℃ to 0.3℃ | 0.4℃ for K type,0.3℃ for J type | |
Bus Current | 100mA/24VDC | ||
Working Temperature | 0℃ to 55℃ | ||

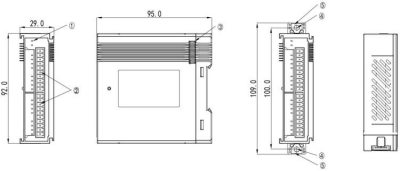

①I/O LED; ②I/O terminal; ③Expansion module interface; ④Installation hole: 2 (Φ4.5); ⑤DIN rail fastener
