Application Description

• The cold storage system mainly consists of Compressor,Condenser,Diffuser,Humidifier,Co2 pump.

• The temprature is controlled by compressor, condenser and diffuser fan.

• Humidity is controlled by humidifier

• Co2 is controlled by Co2 pump.

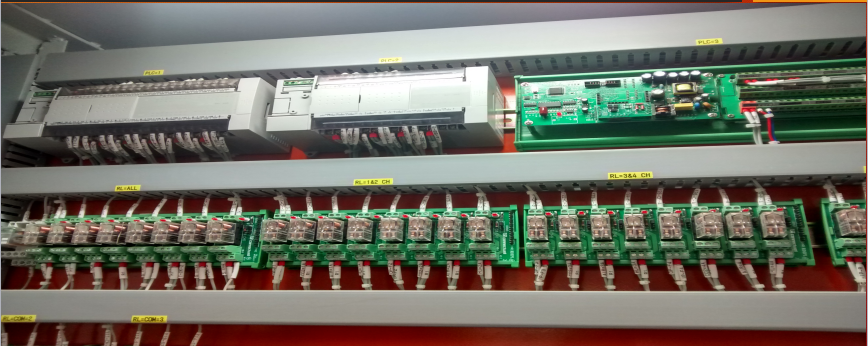

Operation Pictures

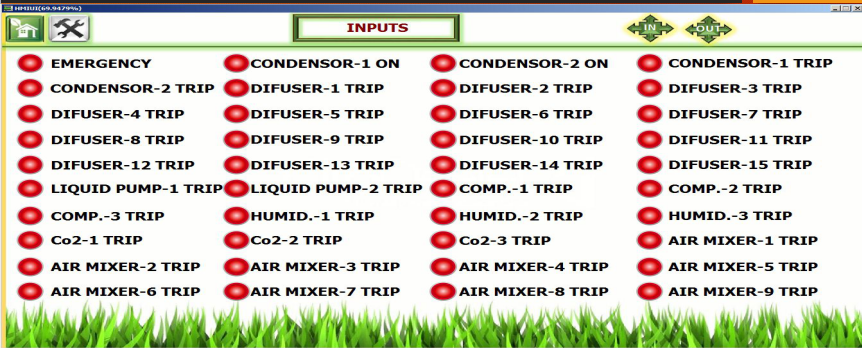

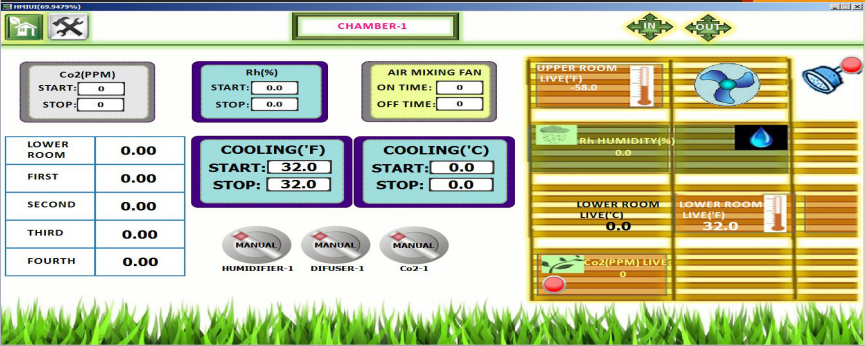

HMI Screens

Products Used

• Wecon make PLC Lx 3V 3624 MR-A2.

• Wecon make analog input expansion module Lx3v 4AD.

• Wecon make HMI PI9150 (15 inch).

• K-Hoat make 16 channel scanner Kh-105.

• Sommy make Energy meter EW9L.
