As the living standards of residents improve, the number of resident activity centers or parks increases, providing places for our entertainment life. A wide variety of amusement equipment has become the most common happiness-making machine around us. The addition of VFD will undoubtedly make the experience of various amusement equipment even better.
The inverter is required to start smoothly and have strong starting torque. At the same time, it can achieve multi-speed and dual-axis rotation synchronization. During operation, the speed conversion is smooth, and the linkage self-frequency adjustment does not require manual control.
1#VFD
| Parameter | Description | Set Value | Remarks |
| F0.01 | Start & Stop Command Source | 1 | DI Terminal |
| F0.03 | Main Frequency Source | 6 |
Multi-stage Speed |
| F0.18 | Acceleration Time | 15 | 15s |
| F0.19 | Deceleration Time | 20 | 20s |
| F5.02 | DI3 Option | 12 | Multi-stage Speed 1 |
| F5.03 | DI4 Option | 13 | Multi-stage Speed 2 |
| FD.01 | Multi-stage Speed 0 | 35 | 35% |
| FD.02 | Multi-stage Speed 1 | 50 | 50% |
| FD.03 | Multi-stage Speed 2 | 100 | 100% |
| F6.12 | AI1 Option | 0 | Output Frequency |
2#VFD
| Parameter | Description | Set Value | Remarks |
| F0.01 | Start & Stop Command Source | 1 | DI Terminal |
| F0.03 | Main Frequency Source | 2 |
AI1 |
| F0.18 | Acceleration Time | 15 | 15s |
| F0.19 | Deceleration Time | 20 | 20s |

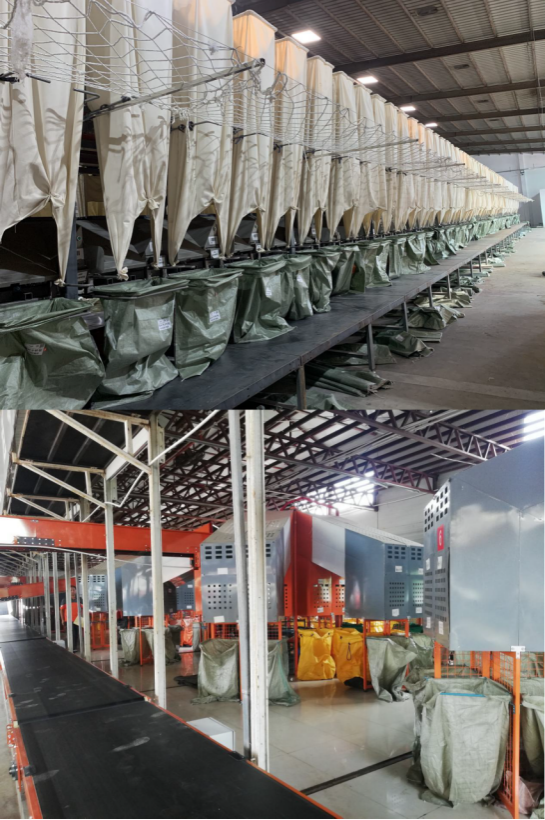

VFD can realize fast start and stop, smooth speed regulation, and can quickly, accurately and stably transport materials, meeting the requirements of multi-section synchronous transmission and fast sorting, thus improving the sorting efficiency.
Small in size, flexible in installation and space-saving.
VFD has a complete protection range, which can protect the entire system from nearly 20 faults such as overvoltage, overcurrent, overheating and short circuit to ground, and has higher reliability.
