In paint shops, clean air and proper ventilation are fundamental requirements for perfect paint finishes and a safe working environment. This requirement applies to all types of painting systems, such as professional paint shops, paint booths, and spray stations in automotive or furniture workshops. Custom-designed fans can typically be installed in various locations as exhaust, recirculation, and supply fans, such as in rooms, walls, or independent filter and extraction systems. VFDs, as an essential component of the ventilation system, not only adjust fan speed in real time according to various operating conditions and control requirements, but also receive and output various signals, allowing users to intuitively operate and monitor the system.
| Parameter | Description | Set Value | Remarks |
| F0.01 | Start/Stop command source | 1 | DI terminal |
| F0.03 | Main frequency source | 2 | AI1，0-10V |
| F0.18 | Acceleration time | 30 | 30s |
| F0.19 | Deceleration time | 60 | 60s |
| F1.00 | Startup option | 1 | Speed tracking startup |
| F1.01 | Speed tracking option | 1 | Tracking from 0Hz |
| F2.01 | Motor rated power（kW） | 55 | Set according to motor nameplate |
| F2.02 | Motor rated voltage（V） | 380 | Set according to motor nameplate |
| F2.03 | Motor rated current（A） | 110 | Set according to motor nameplate |
| F2.04 | Motor rated frequency（Hz） | 50 | Set according to motor nameplate |
| F2.05 | Motor rated rpm | 1460 | Set according to motor nameplate |
| F5.00 | DI1 option | 01 | FWD running |
| F6.02 | Relay 1 option | 02 | Alarm output |

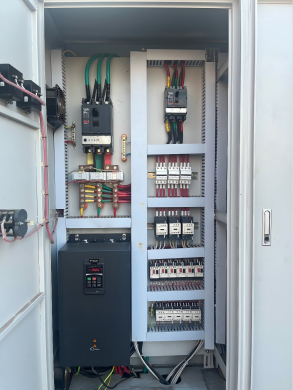

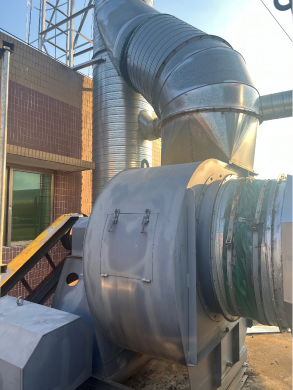

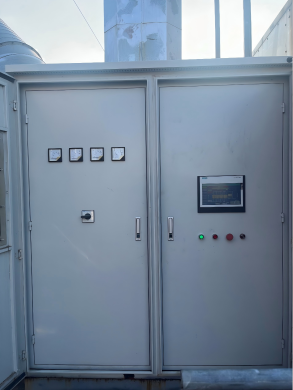

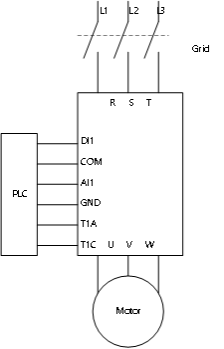

The PLC outputs a 0-10V analog signal to the VFD in real time based on on-site conditions, such as the concentration of paint evaporation in the air, temperature, and humidity, to adjust the fan speed. This achieves precise control while also making the system more energy-efficient.
The VB features a built-in speed tracking function. Even if the fan is still running when the VFD starts, it can automatically track the fan's real-time speed and operate synchronously, avoiding overvoltage faults caused by the motor charging the frequency converter in reverse. Simultaneously, the VFD's soft-start function effectively reduces starting current, preventing impact on the power grid.
The VB has built-in comprehensive protection and relay terminals. When the system operates abnormally, it can provide fault alarms and output signals to the host device, ensuring that operators can troubleshoot faults promptly and extending the system's service life.
