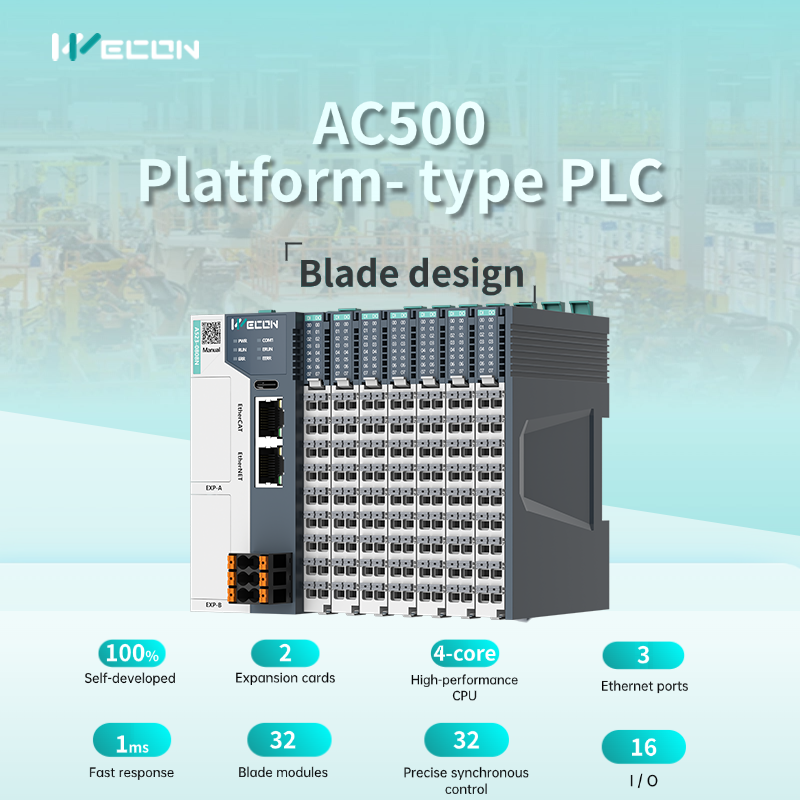

Step into the future with Wecon A500 Platform-type PLC, now available for you.

Boasting self-developed architecture, high - performance features, excellent motion control,

and rich expansion capabilities, it's set to revolutionize applications in multiple industries.

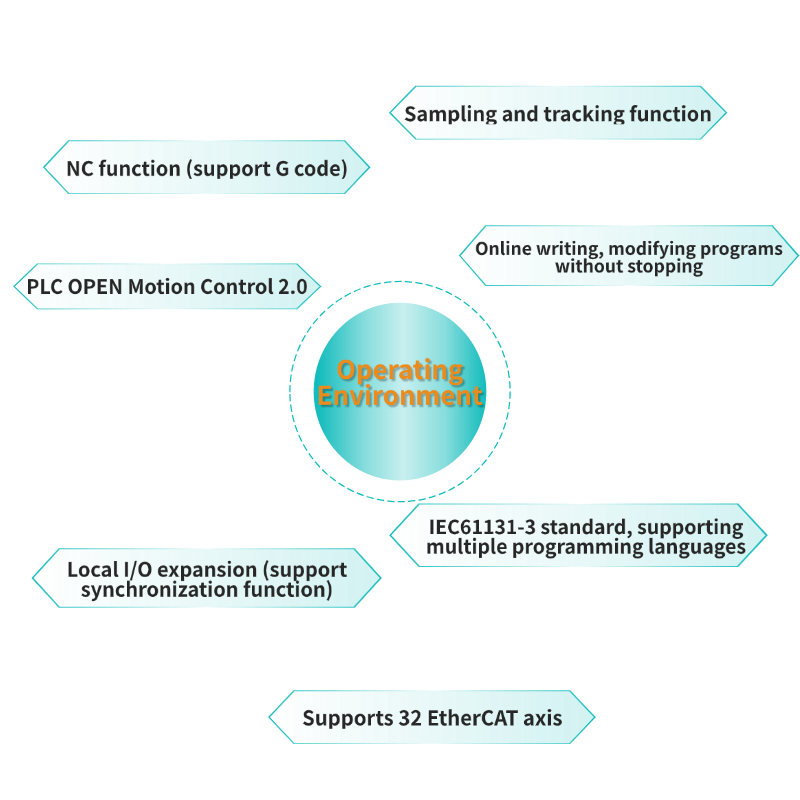

System architecture and operating environment

01 | 100% Self-developed

Independent and controllable PLC upper and lower computer systems, ensuring stability and safety.

02 | Platform-based Runtime

Provides flexible software running environment, supports multi-task parallel processing,

and improves system stability and scalability.

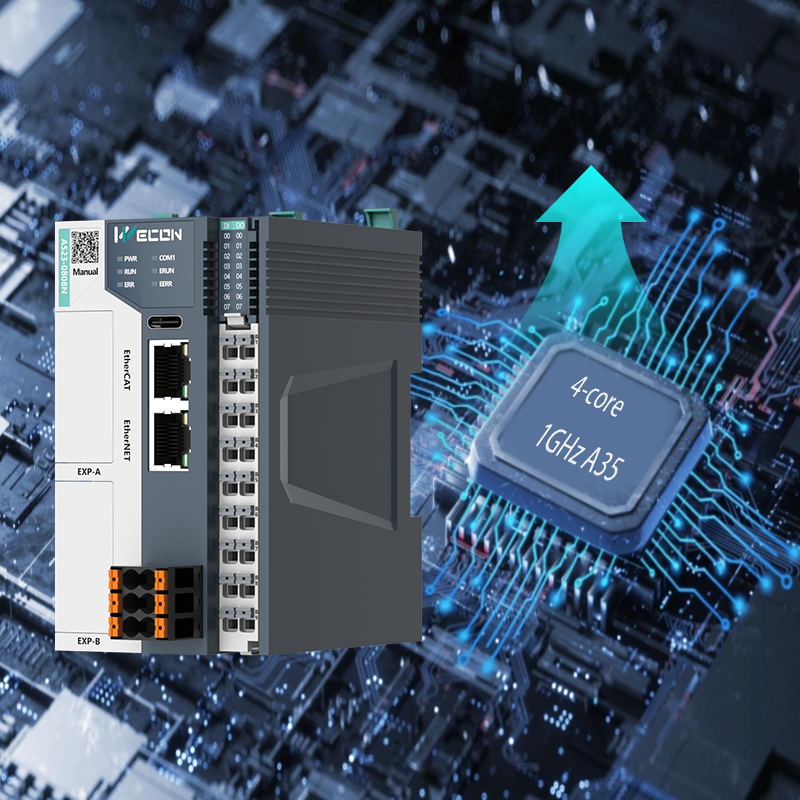

03 | High-performance processor

4-core, 1GHz A35 processor provides powerful computing power.

Storage space and backup

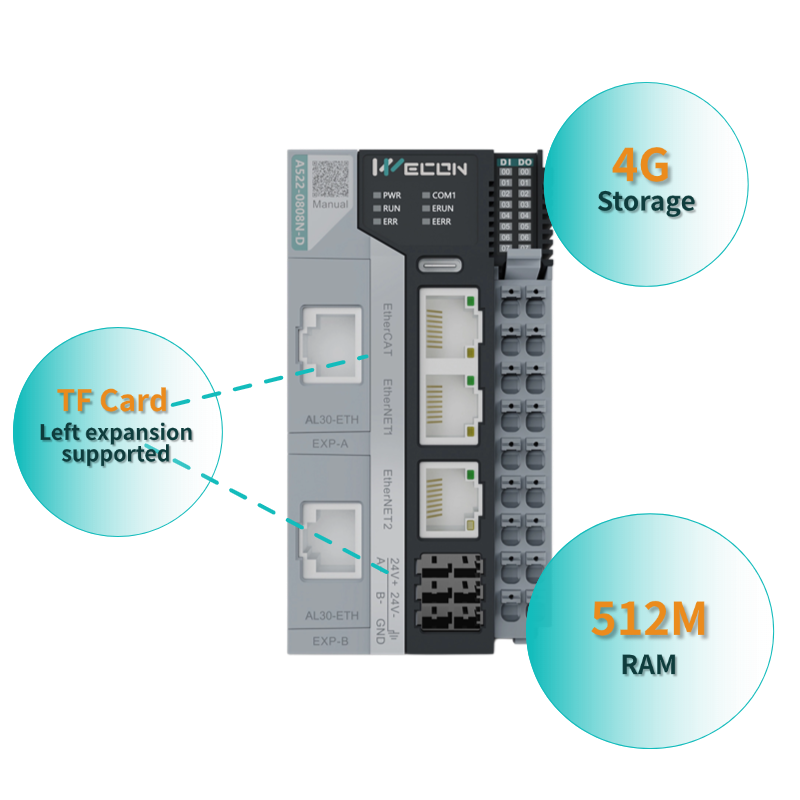

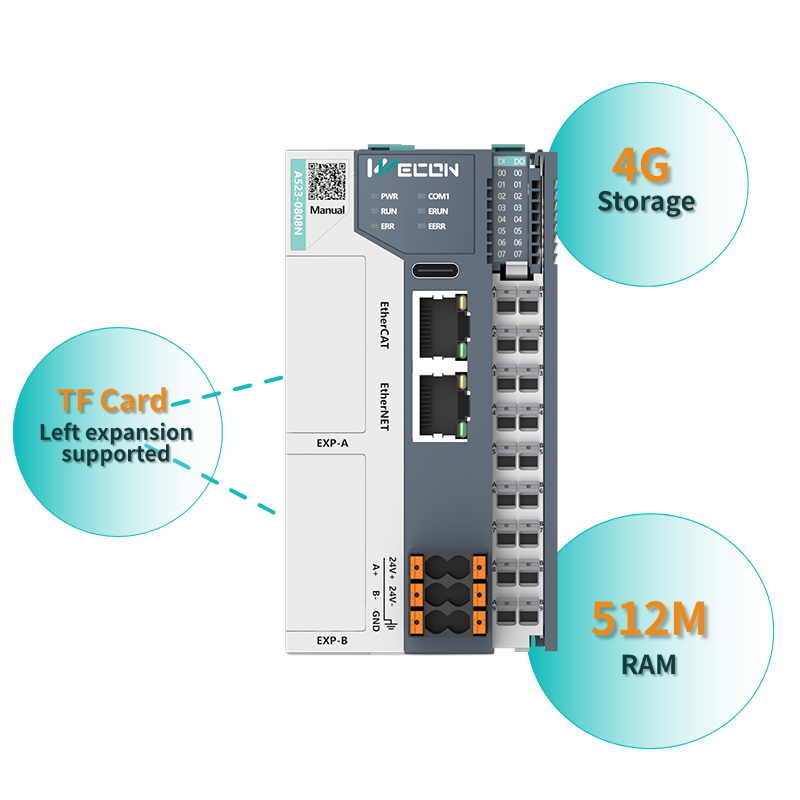

01 | Large storage

512M RAM+4G storage, optional TF card to meet the needs of complex applications.

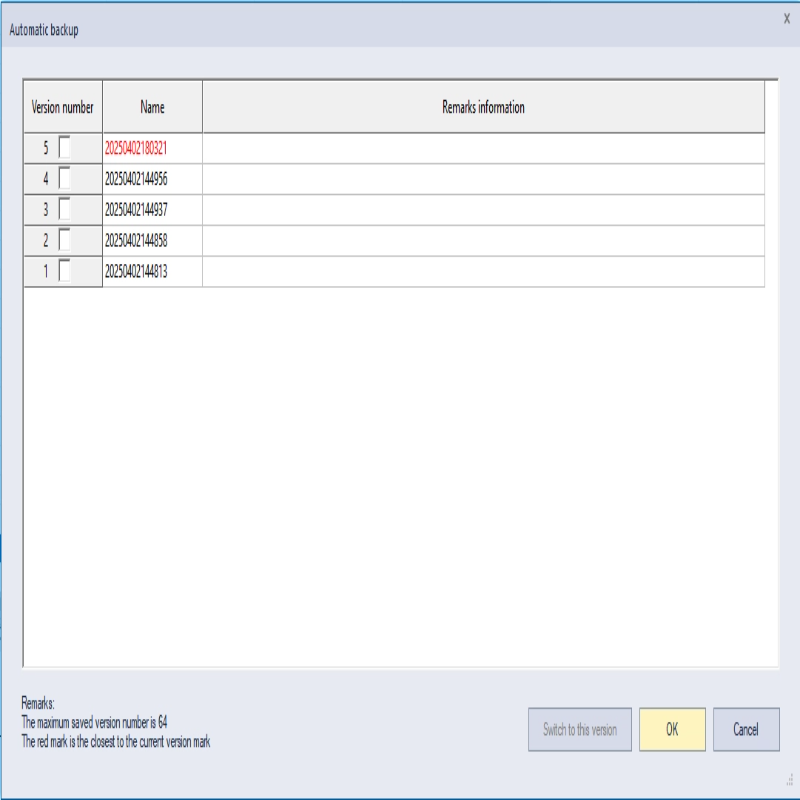

02 | Project backup and rollback

Built-in automatic backup function, supports fast fallback and version management to ensure data security.

Excellent motion control Capability

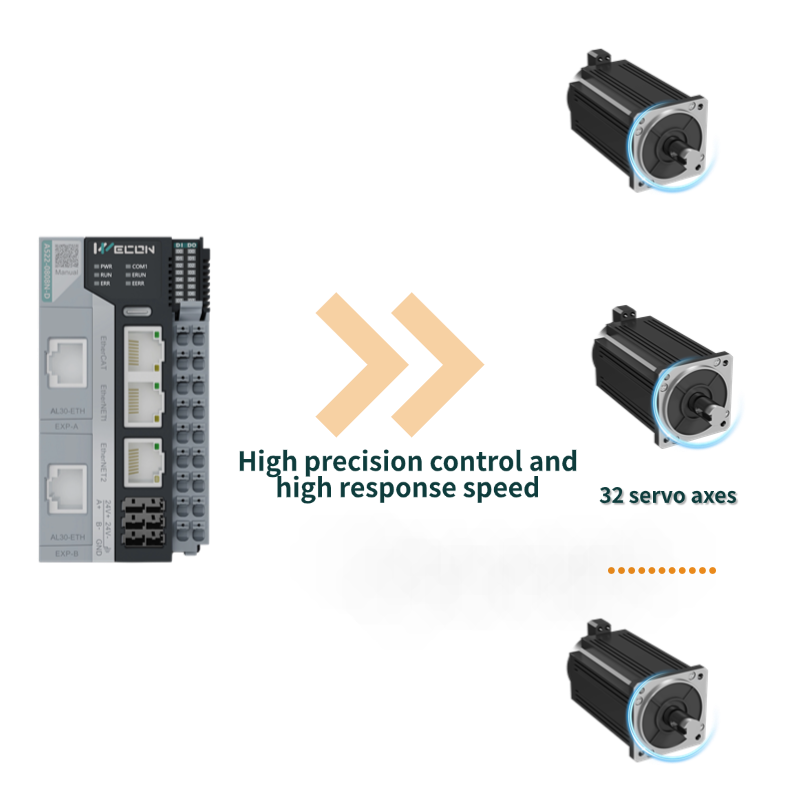

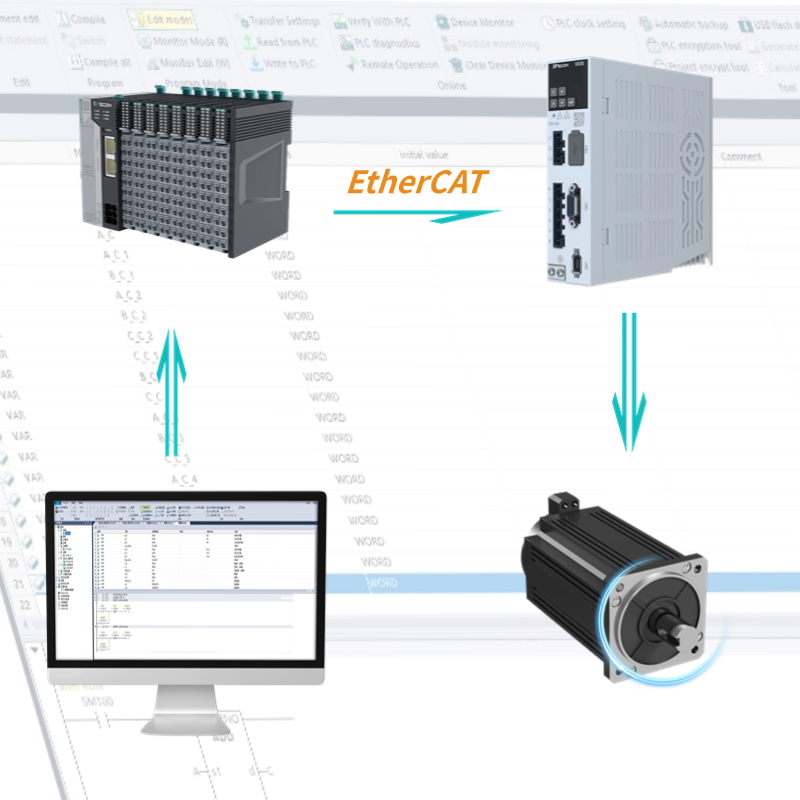

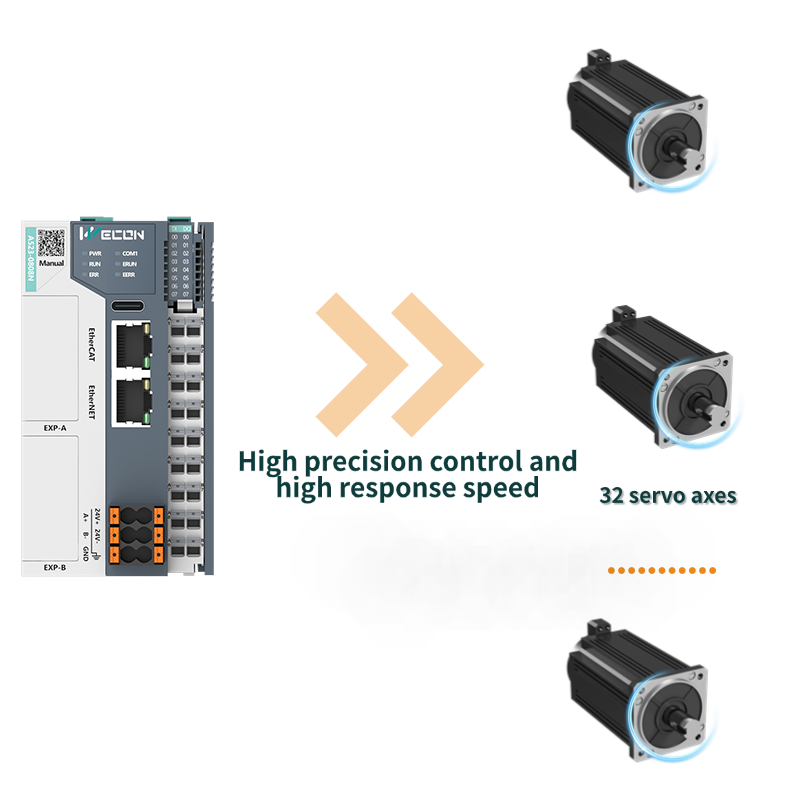

01 | 32-axis motion control

Support EtherCAT master station, 16-axis/1ms processing power, and control up to 32-axis servo.

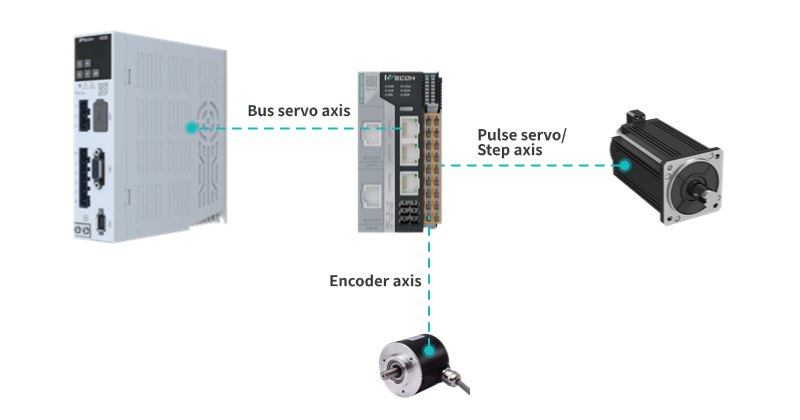

02 | Multiple axis configurations

Support local encoder axis, servo axis, and axis group configuration.

03 | Sampling and tracking

Support 16 tags collection at the same time to accurately monitor movement status.

Blade Expansions and Communications Download

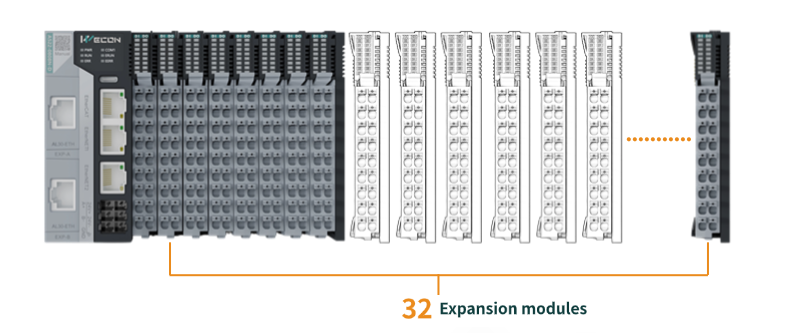

01 | Blade Expansion

Modular design, support up to 32 expansion modules, flexibly expansion functions.

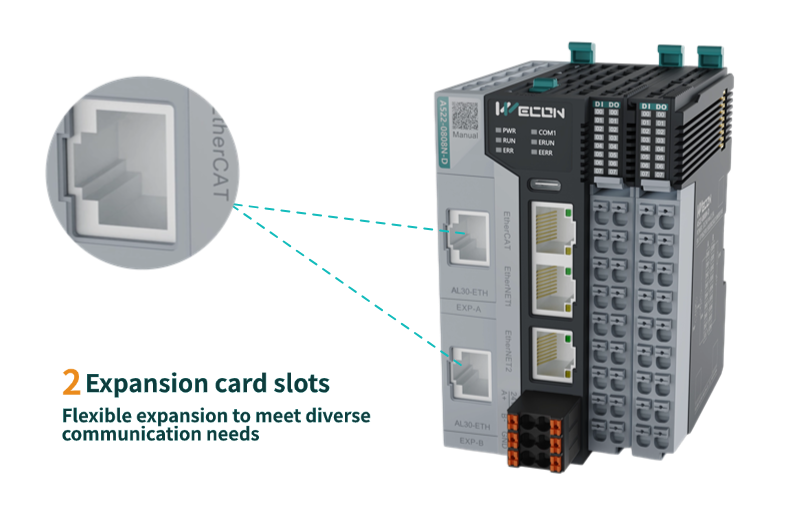

02 | Various communication expansion card

Built-in 2 communication expansion card slots to support flexible expansion.

Optional TF card, RS485 communication card, EtherNET communication card.

RTC expansion card to achieve precise time management.

03 | Remote program download

Efficiently remote upgrades

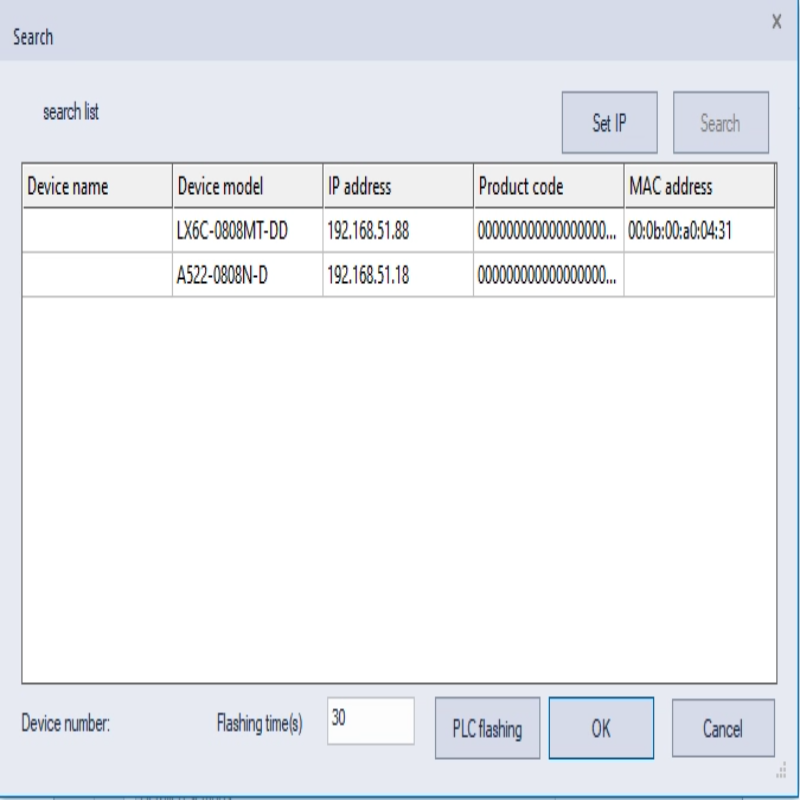

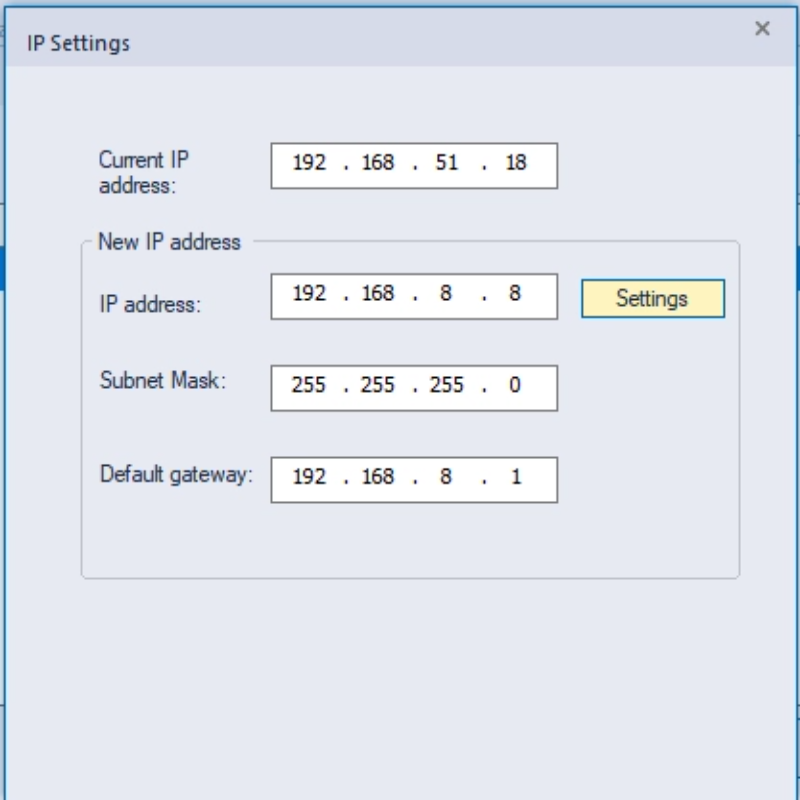

04 | LAN device search function

Quickly detect the PLC device connected in the current network segment,

and manually modify the IP to solve IP conflicts.

Variable definition and configuration method

Multiple configuration methods

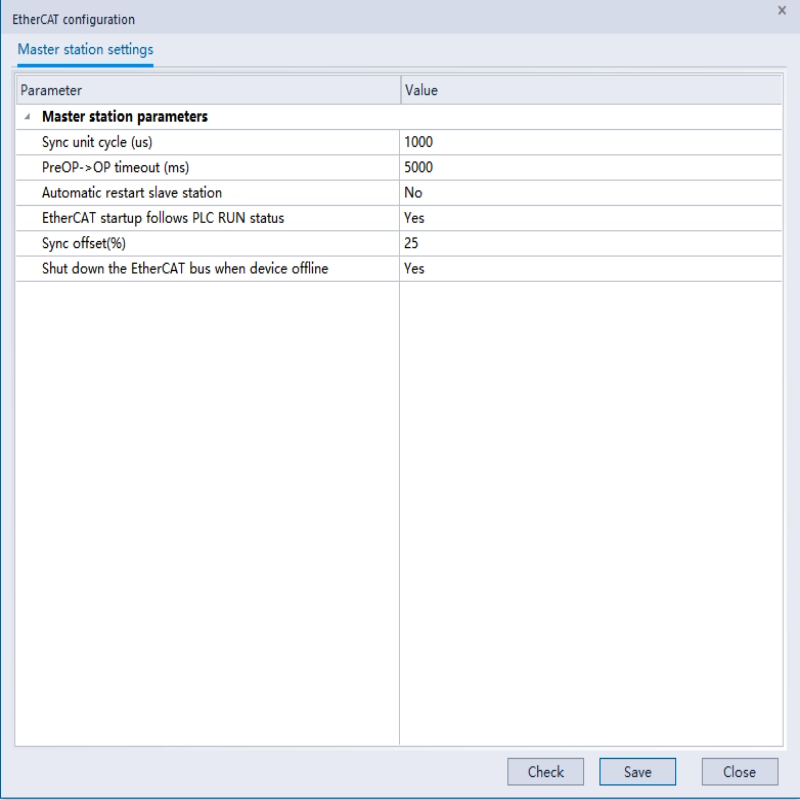

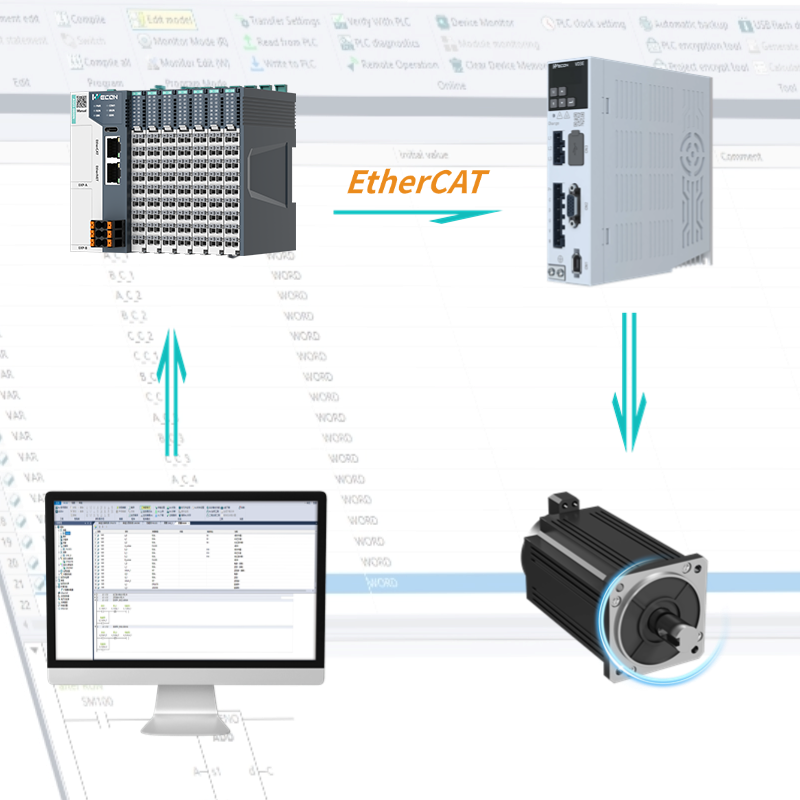

EtherCAT configuration: Support most servo and coupler configurations on the market

Remote maintenance and operation optimization

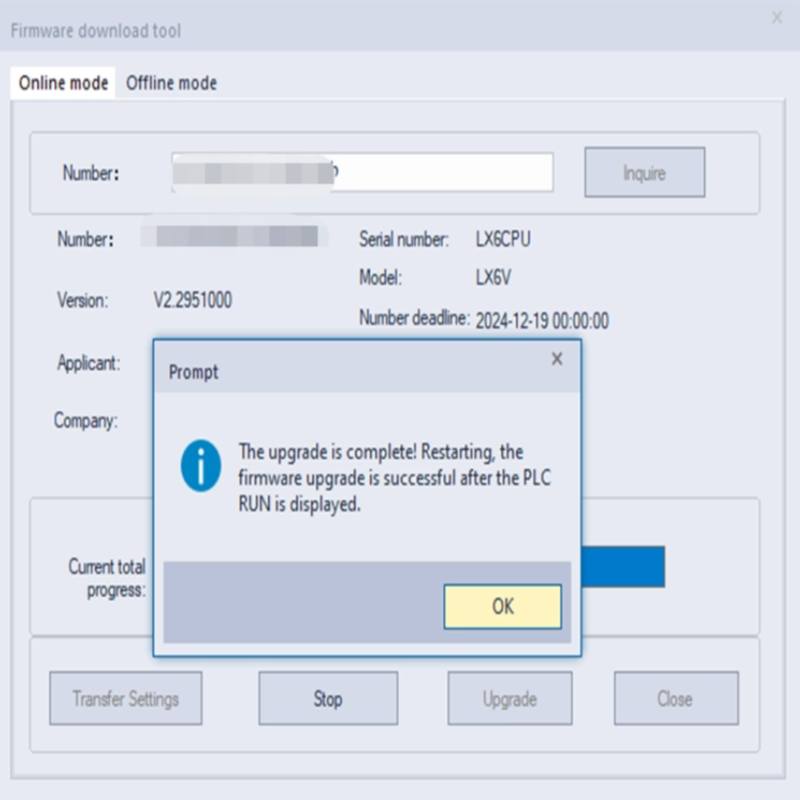

Remote Upgrade Tool

Remote maintenance and updates are supported.

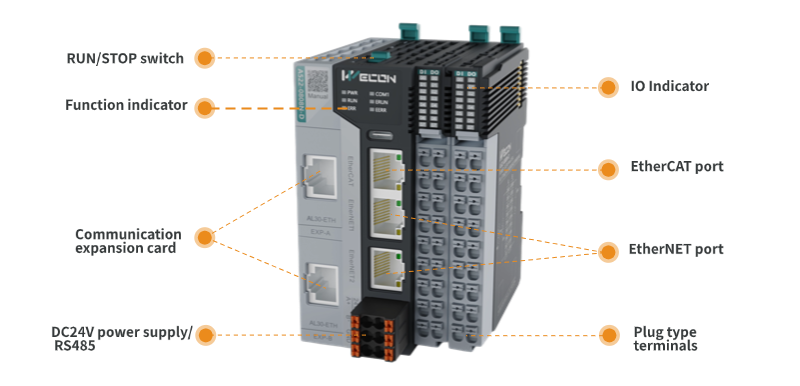

Appearance

Applications
