Model | Description |
AE30-4AD | 4-channel analog input module |

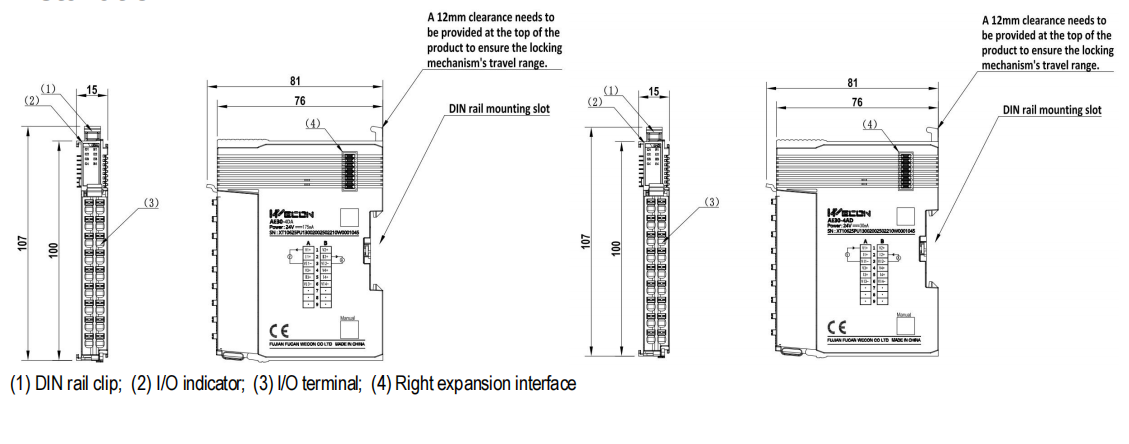

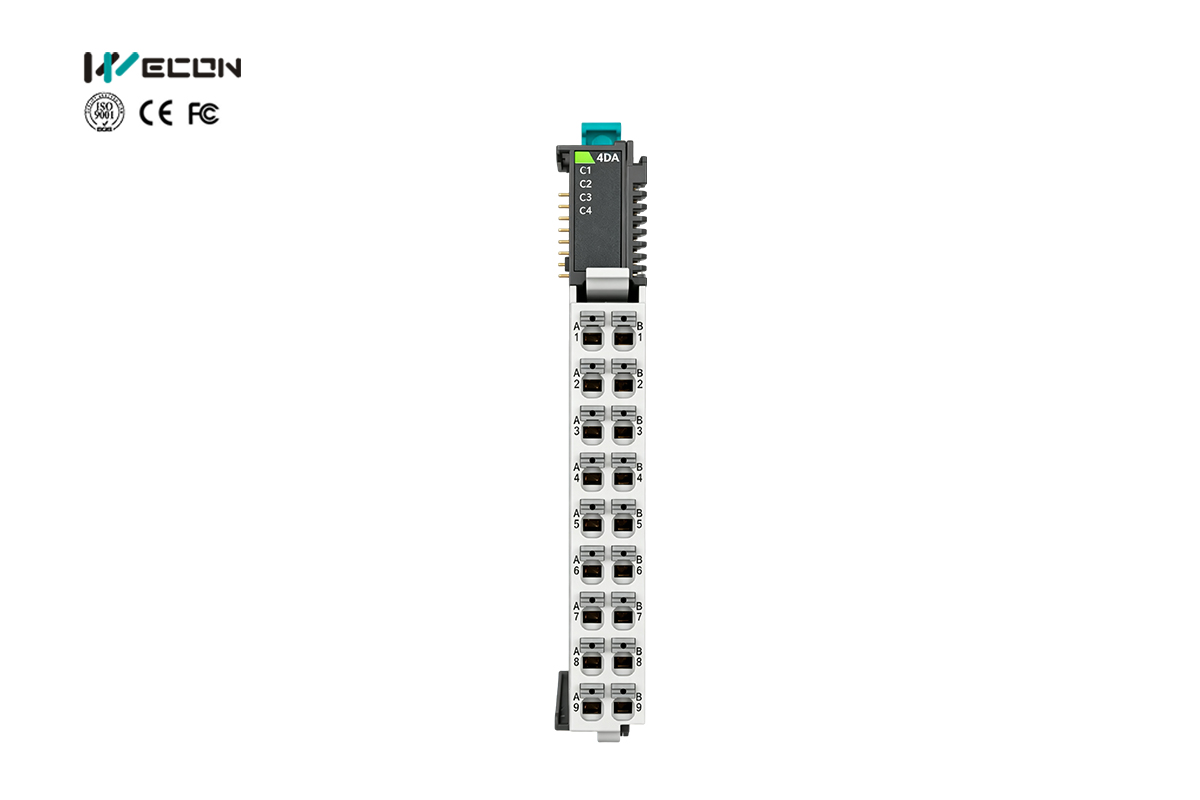

AE30-4DA | 4-channel analog output module |
Specification
Item | Analog Input |
Input Circuit Composition |  |
Input Mode | Voltage/current |
Input Channel | 4 |
Resolution | 1/32000 (16bit) |
Voltage Input Range | -10V to 10V |
Voltage Input Impedance | 220kΩ |
Current Input Range | 4mA to 20mA, -20mA to 20mA |
Current Input Impedance | 250Ω |
Comprehensive Precision | ±0.1% |
Conversion Speed | 2ms/4channel |
Power Supply | Interface power supply, DC24V±10%, 30mA |
Item | Analog Output |
Output Circuit Composition |  |
Output Mode | Voltage/current |
Output Channel | 4 |
Resolution | 1/32000 (16bit) |
Voltage Output Range | -10V to 10V |
Voltage Output Load | ≥2KΩ |
Voltage Output Diagnosis | Not support |
Current Output Range | 0 to 20mA, 4 to 20mA |
Current Output Load | ≤ 500Ω |
Current output Diagnosis | Not support |
Comprehensive Precision | ±0.5% |
Conversion Speed | Approximately 0.8ms |
Power Supply | Interface power supply, DC24V±10%, 175mA |
